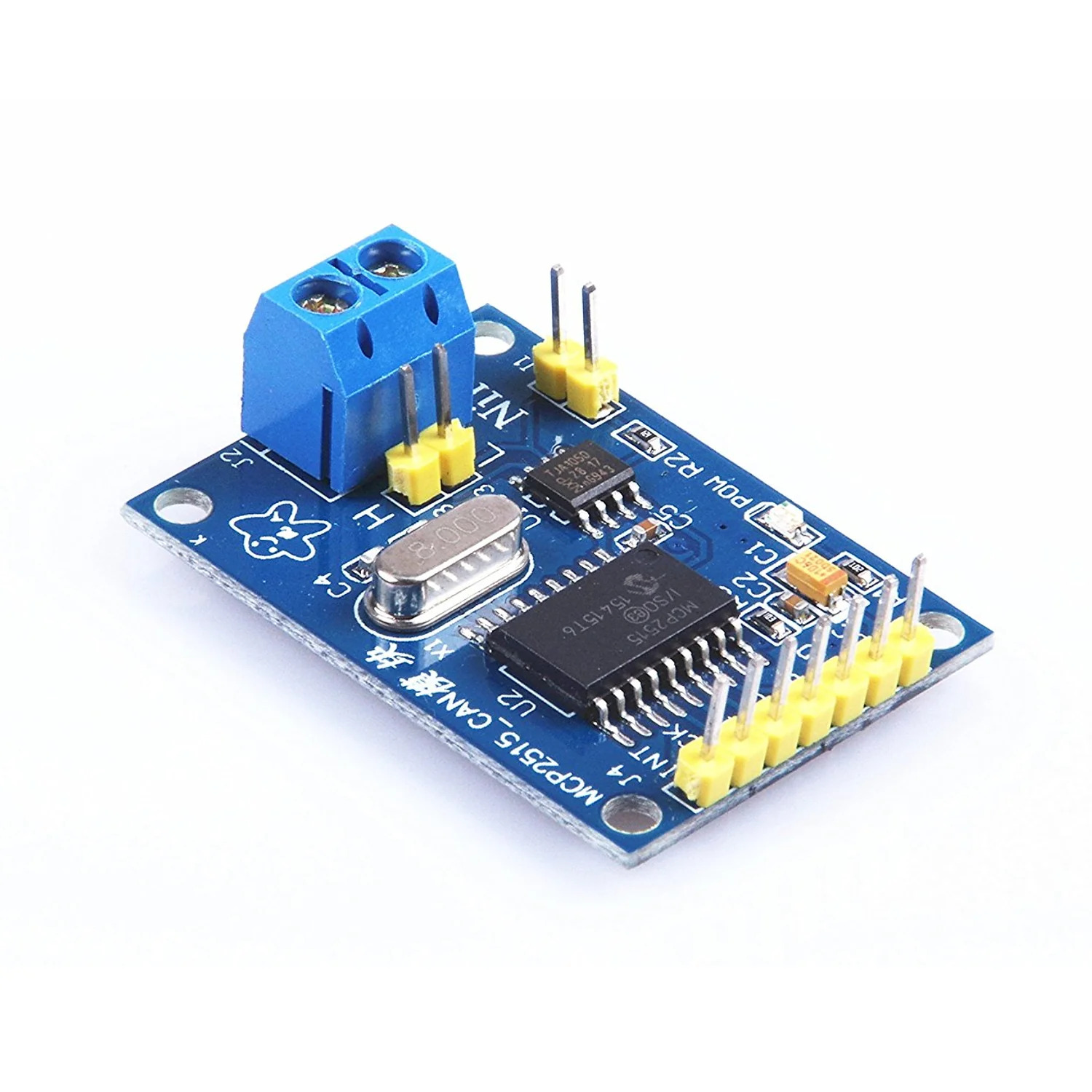

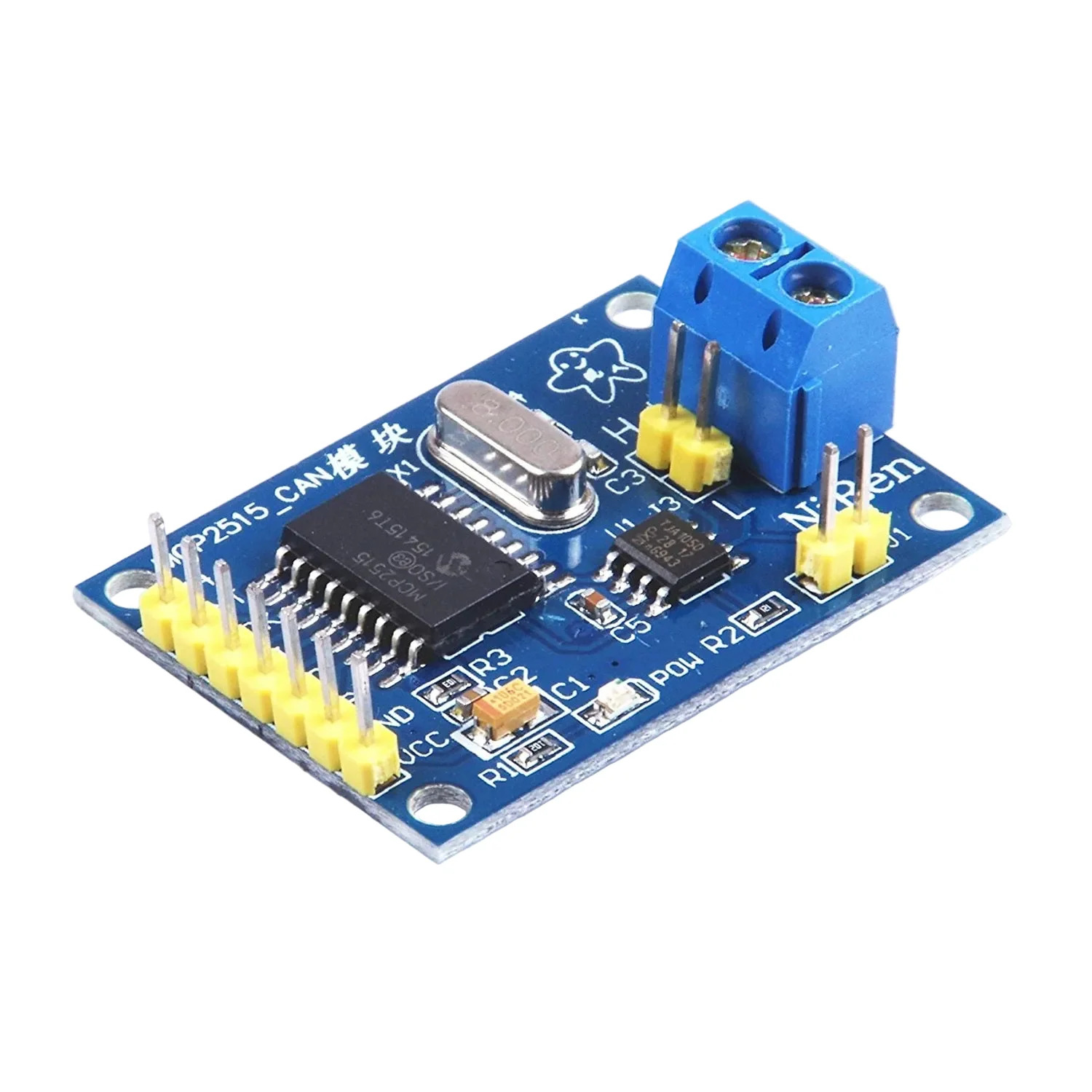

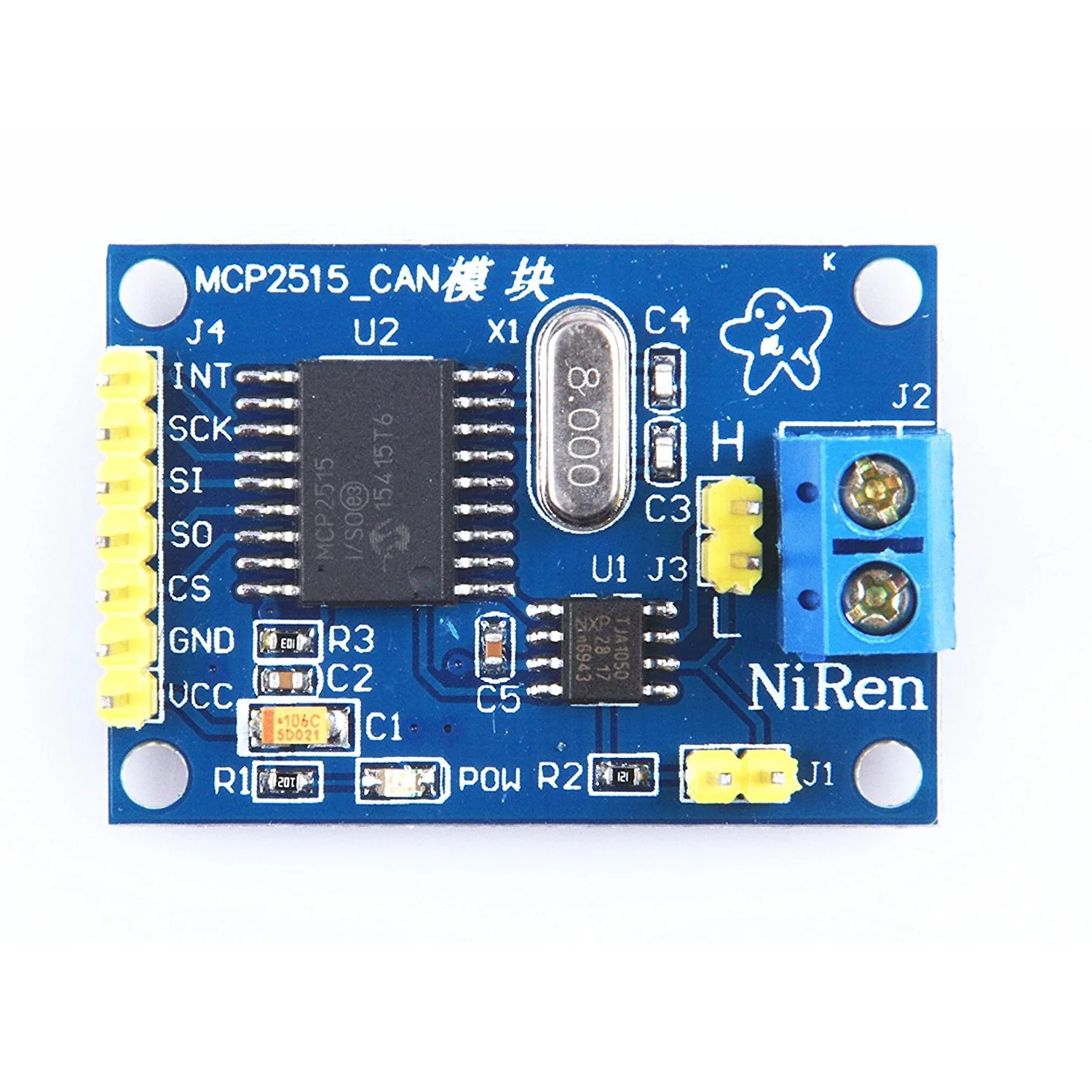

MCP2515 CAN Bus Module with TJA1050 Transceiver (SPI CAN Controller for Arduino)

The MCP2515 CAN Bus Module with TJA1050 Transceiver is a compact communication interface board that enables Controller Area Network (CAN) connectivity for microcontrollers through the SPI interface. It combines the MCP2515 standalone CAN controller with the TJA1050 high-speed CAN transceiver to provide reliable CAN bus communication for automotive, industrial, robotics, and embedded applications. Supporting both standard and extended CAN frames, the module offers an efficient solution for integrating Arduino, STM32, AVR, PIC, ESP32, and other microcontroller platforms into CAN networks.

Key Features -

• Based on the MCP2515 standalone CAN controller IC

• Integrated TJA1050 high-speed CAN transceiver

• SPI interface for simple microcontroller communication

• Supports both standard and extended CAN frames

• Reliable high-speed CAN bus communication

• LED indicators for transmit and receive activity

• Compatible with Arduino, ESP32, STM32, AVR, PIC, and other microcontrollers

• Compact breakout board for easy integration

• Suitable for automotive and industrial CAN applications

• Supports CAN network monitoring and data exchange

Specifications -

• Product type - CAN Bus Communication Module

• Main IC / Chipset - MCP2515

• CAN transceiver - TJA1050

• Operating voltage - 5V DC (Typical)

• Communication interface - SPI

• CAN protocol support - Standard and Extended CAN Frames

• CAN bus speed - Supports Standard CAN Bus Data Rates

• Status indicators - TX and RX LEDs

• Package / Mounting type - PCB Breakout Module

Applications -

• Automotive CAN bus communication

• Industrial automation systems

• Robotics and autonomous vehicles

• Vehicle diagnostics and telemetry

• CAN-based sensor networks

• Embedded communication systems

• Arduino and STM32 CAN projects

• Industrial equipment monitoring and control
