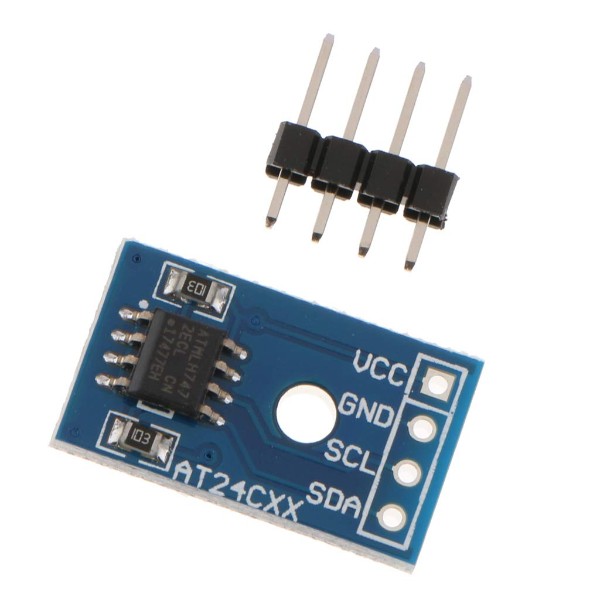

AT24C02 Module I2C IIC Interface EEPROM Memory Module

The AT24C02 Module is a compact non volatile EEPROM memory board designed for serial data storage using the I2C IIC communication protocol. It is based on the AT24C02 2K bit EEPROM device and provides reliable byte level read and write operations for embedded systems.

This module is suitable for storing configuration parameters calibration data device IDs and small data logs in microcontroller based projects. The I2C interface allows easy integration with Arduino STM32 and other development platforms.

KEY FEATURES

• Based on AT24C02 EEPROM IC
• 2K bit non volatile memory
• I2C IIC serial communication interface
• Byte and page write capability
• Low power consumption
• Compact breakout board design
• Suitable for embedded data storage

SPECIFICATIONS

• Memory Capacity = 2K bit 256 x 8 bit
• Operating Voltage = 2.7-5.5V DC
• Interface Type = I2C IIC
• Clock Frequency = Up to 400KHZ
• Write Cycle Time = 5ms typical
• Data Retention = 100 years typical
• Endurance = 1 million write cycles

INTERFACES

• VCC = Power supply input 2.7-5.5V
• GND = Ground
• SCL = I2C clock line
• SDA = I2C data line
• WP = Write protect control
• A0 = Address select bit 0
• A1 = Address select bit 1
• A2 = Address select bit 2
