Description

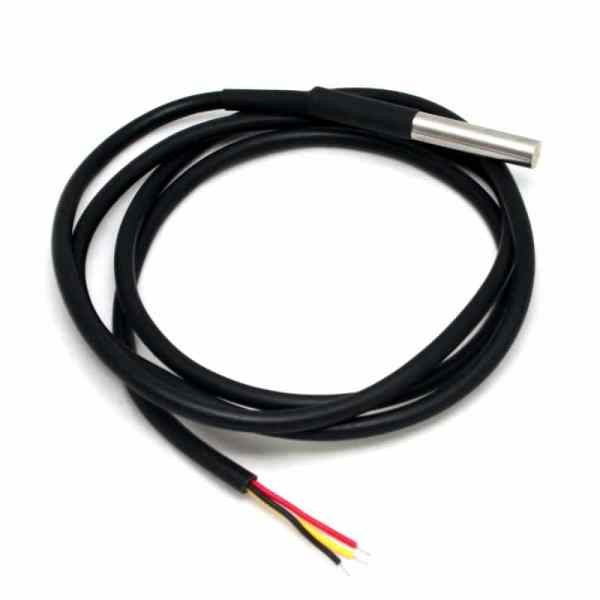

Cable specs:
-Stainless steel tube 6mm diameter by 30mm long.
-Cable is 36″ long / 91cm, 4mm diameter.
-Contains DS18B20 temperature sensor.
-If your sensor has four wires – Red connects to 3-5V, Black connects to ground and White is data. The copper wire is soldered to the wire shielding.
-If your sensor has three wires – Red connects to 3-5V, -Blue/Black connects to ground and Yellow/White is data.
DS18B20 Technical specs:
-Usable temperature range: -55 to 125°C (-67°F to 257°F).
-9 to 12 bit selectable resolution.
-Uses 1-Wire interface- requires only one digital pin for communication.
-Unique 64 bit ID burned into chip.
-Multiple sensors can share one pin.
±0.5°C Accuracy from -10°C to 85°C.
-Temperature-limit alarm system.
-Query time is less than 750ms.
-Usable with 3.0V to 5.5V power/data.
