EK-TM4C123GXL- ARM TIVA LaunchPAD Development Boards
E-979
The Tiva C Series TM4C123G LaunchPad Evaluation Board (EK-TM4C123GXL) is a low-cost evaluation platform for ARM® Cortex™-M4F-based microcontrollers.
The Tiva C Series LaunchPad design highlights the TM4C123GH6PMI microcontroller USB 2.0 device interface, hibernation module, and motion control pulse-width modulator (MC PWM) module.
The Tiva C Series LaunchPad also features programmable user buttons and an RGB LED for custom applications.
The stackable headers of the Tiva C Series TM4C123G LaunchPad BoosterPack XL interface demonstrate how easy it is to expand the functionality of the
Tiva C Series LaunchPad when interfacing to other peripherals on many existing BoosterPack add-on boards as well as future products.

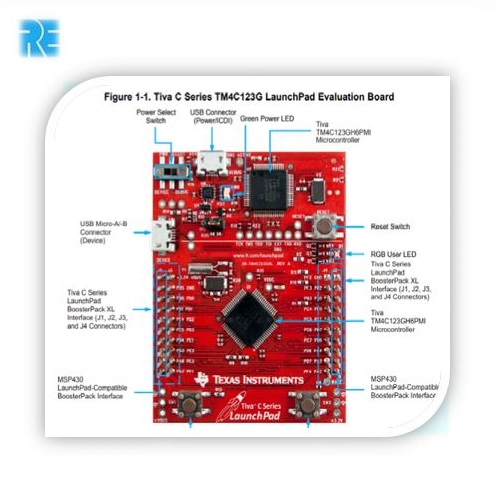

Figure 1-1 shows a photo of the Tiva C Series LaunchPad.
Additional Information
| Weight | 123.26 g |
|---|
