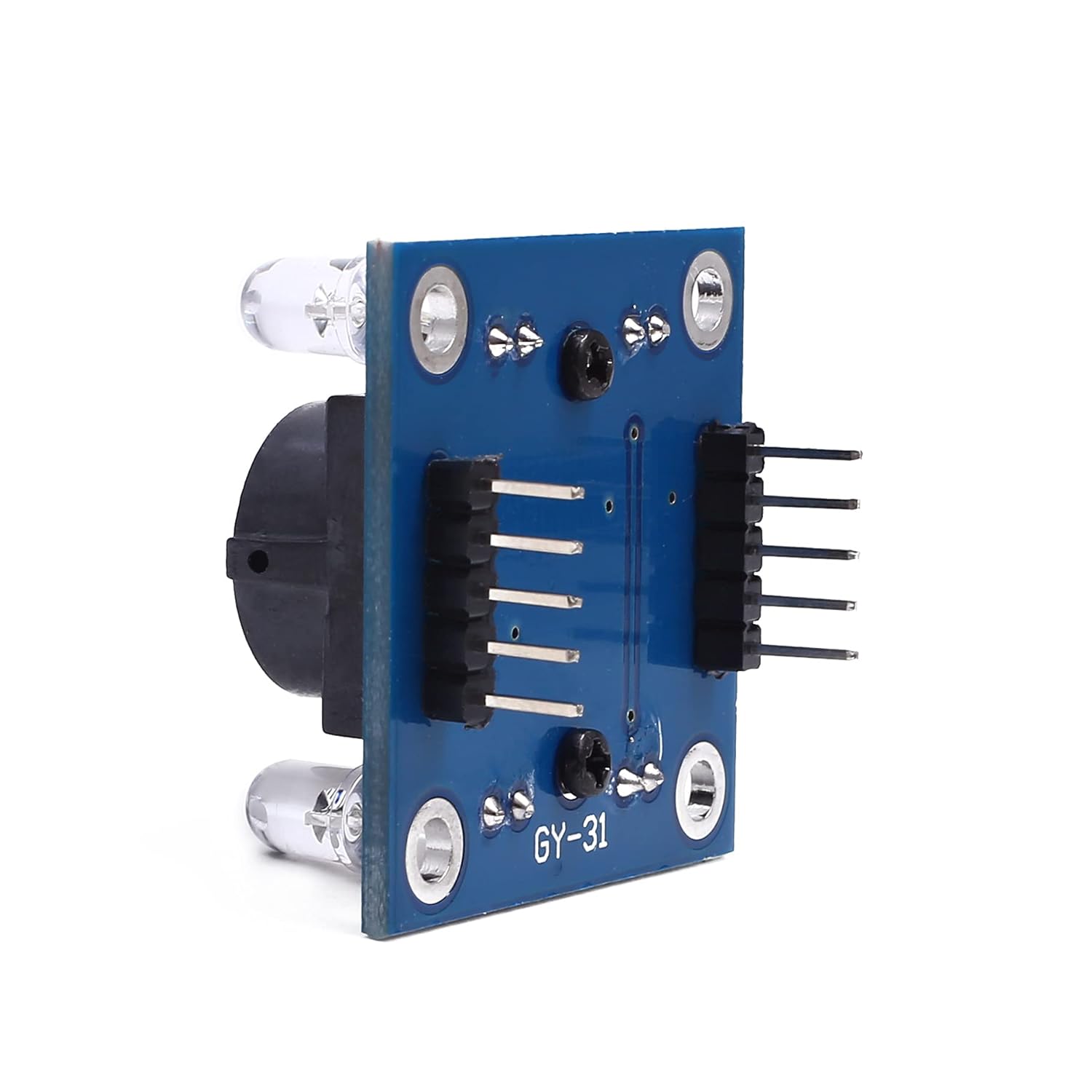

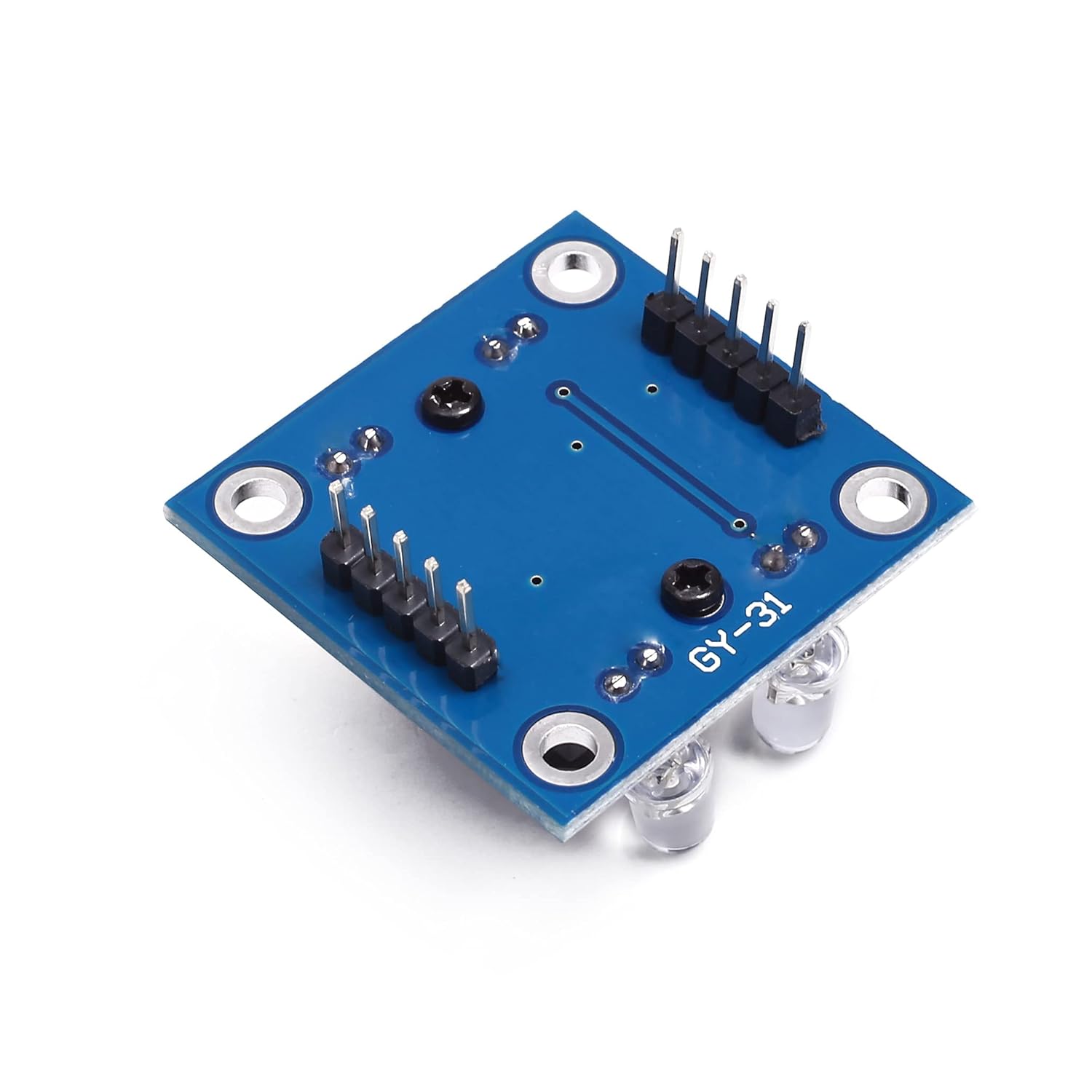

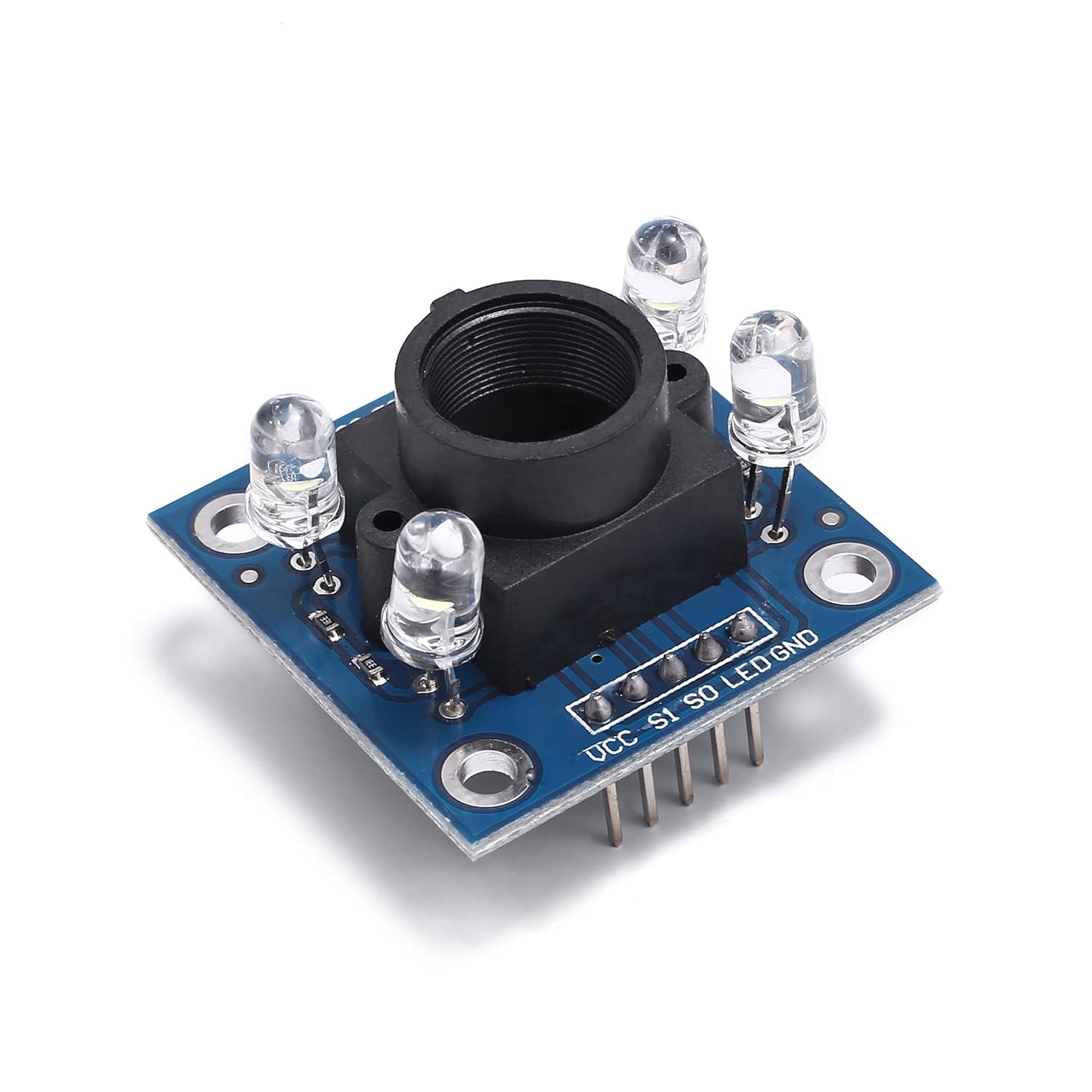

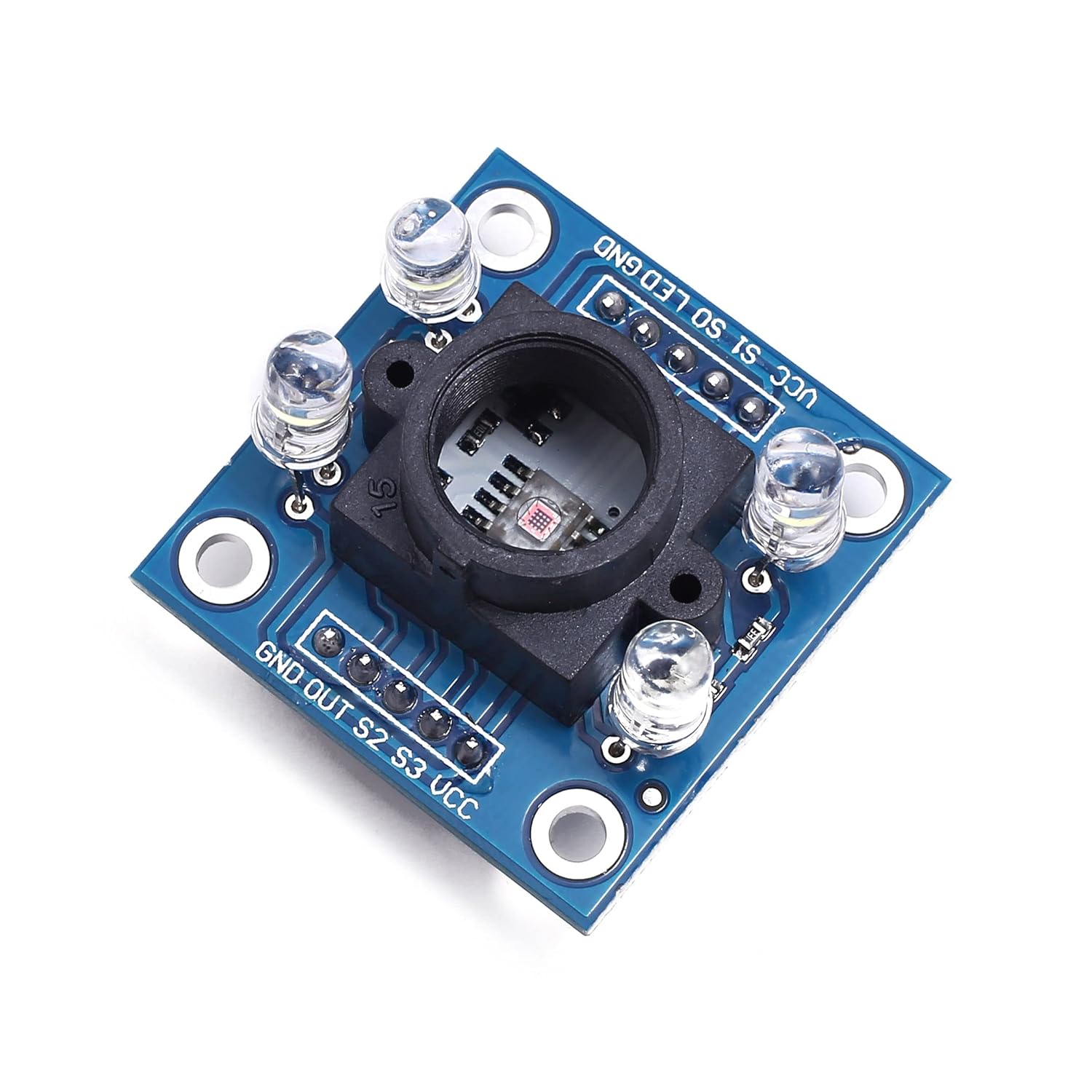

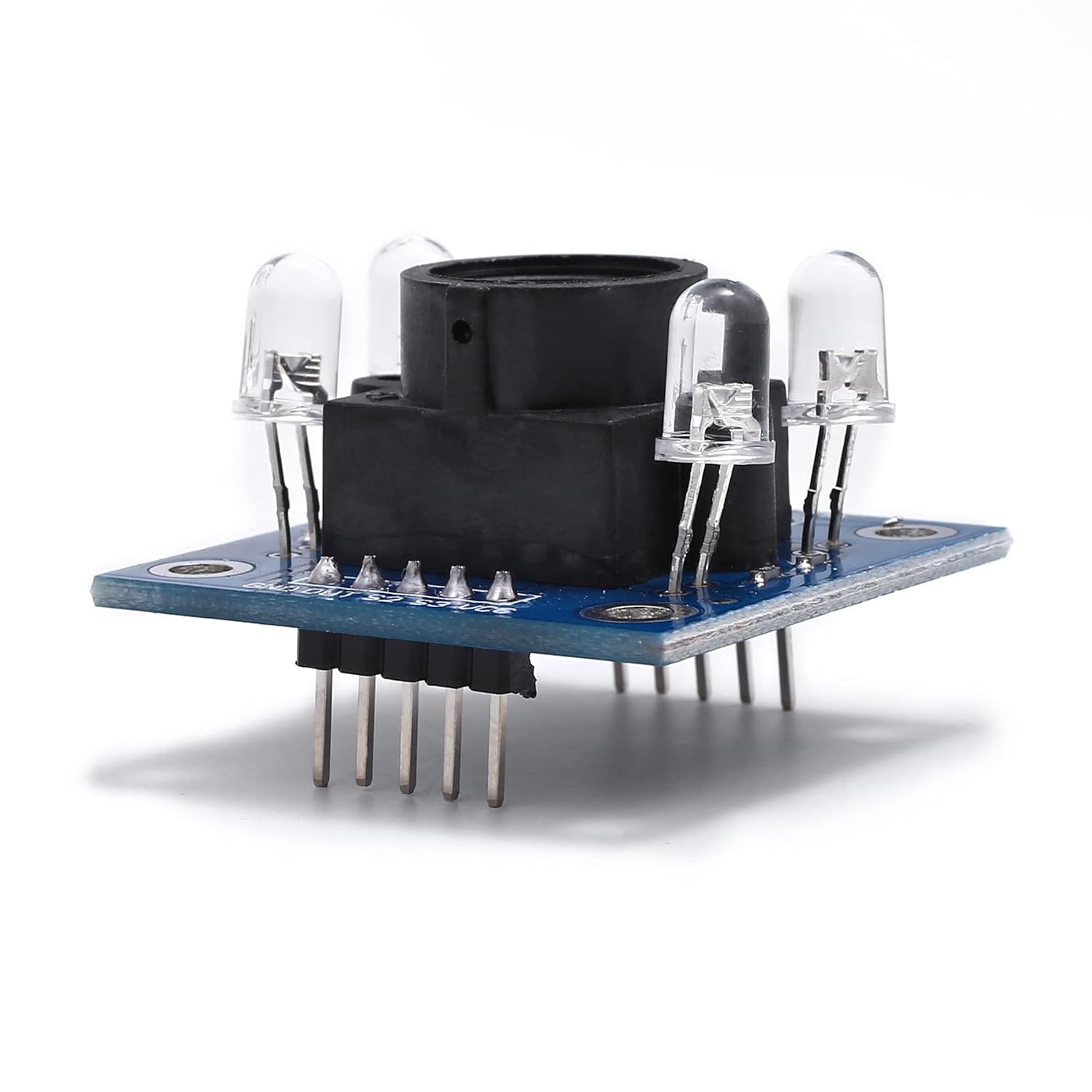

GY-31 TCS3200 Color Sensor Module

The GY-31 TCS3200 Color Sensor Module is a digital color detection board that uses the TCS3200 sensor to measure the color of objects. It converts light intensity reflected from a surface into frequency output signals corresponding to red, green, and blue (RGB) components. This makes it ideal for color recognition, sorting robots, color-based automation, line tracking, and interactive projects requiring real-time color detection.

This module interfaces easily with microcontrollers like Arduino, ESP series, PIC, and others using simple digital input pins. Adjustable filters and selectable output scaling allow calibration for different lighting conditions and improved accuracy.

KEY FEATURES

• Detects RGB color components
• Digital frequency output
• Selectable output scaling
• Onboard color filter selection
• Easy interface with microcontrollers
• Compact module design
• Suitable for color sorting and detection projects

SPECIFICATIONS

• Sensor TCS3200 color sensor
• Output Type Digital frequency corresponding to color intensity
• Supply Voltage 3.3V to 5V DC
• Frequency Output Range Wide range depending on light and color
• Light Source White LEDs (on some variants)
• Operating Temperature Standard ambient

INTERFACES

• VCC Power supply
• GND Ground
• S0 Output frequency scaling control
• S1 Output frequency scaling control
• S2 Color filter control
• S3 Color filter control
• OUT Frequency output
