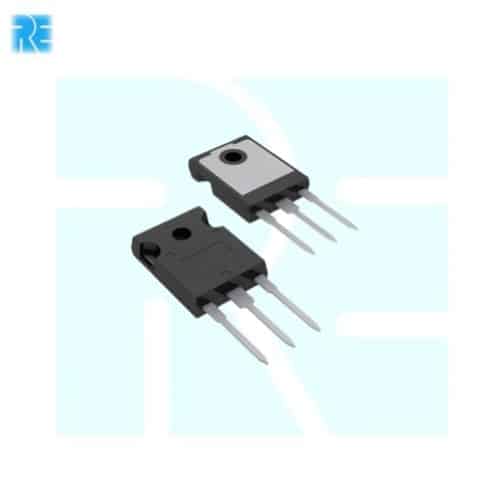

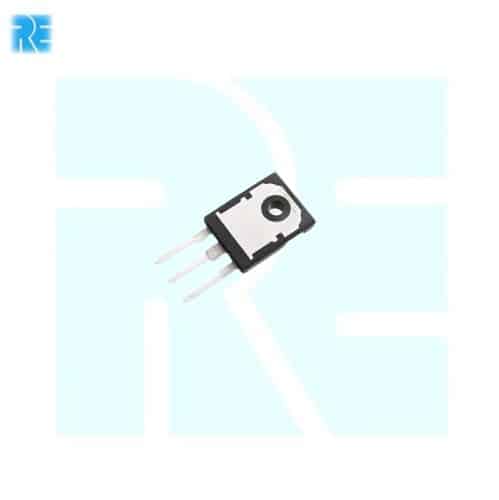

IRFP460 – N CHANNEL MOSFET TO-247
DID-173
Drain-Source Breakdown Voltage 500 V
Gate Charge(Qg): 105nC@10V
Gate-Source Voltage – 20 V, + 20 V
RDS(on): 270mΩ@10V,12A
Number: 1 N-channel
Pd – Power Dissipation: 280W
Gate Threshold Voltage (Vgs(th)@Id): 4V
Operating Temperature -65°C ~ 150°C
Package: TO-247AC-3
| Weight | 4.91 g |
|---|
