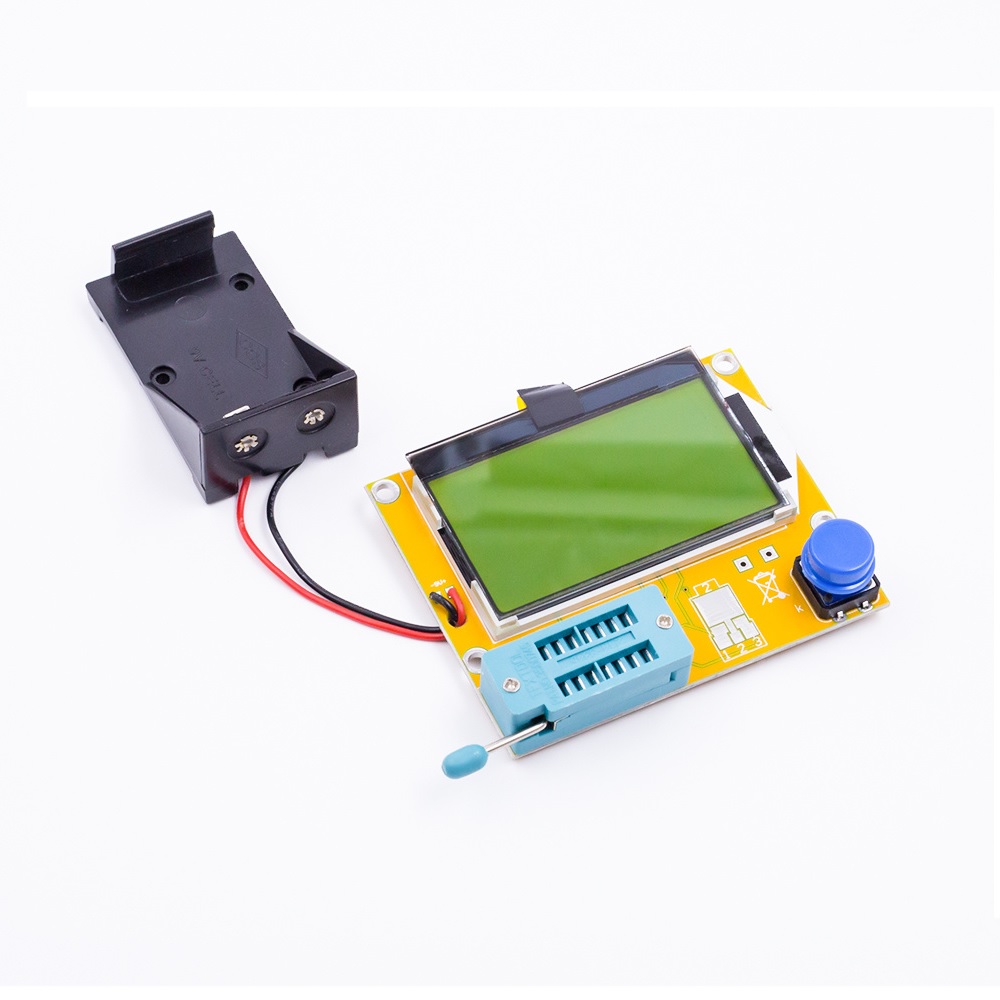

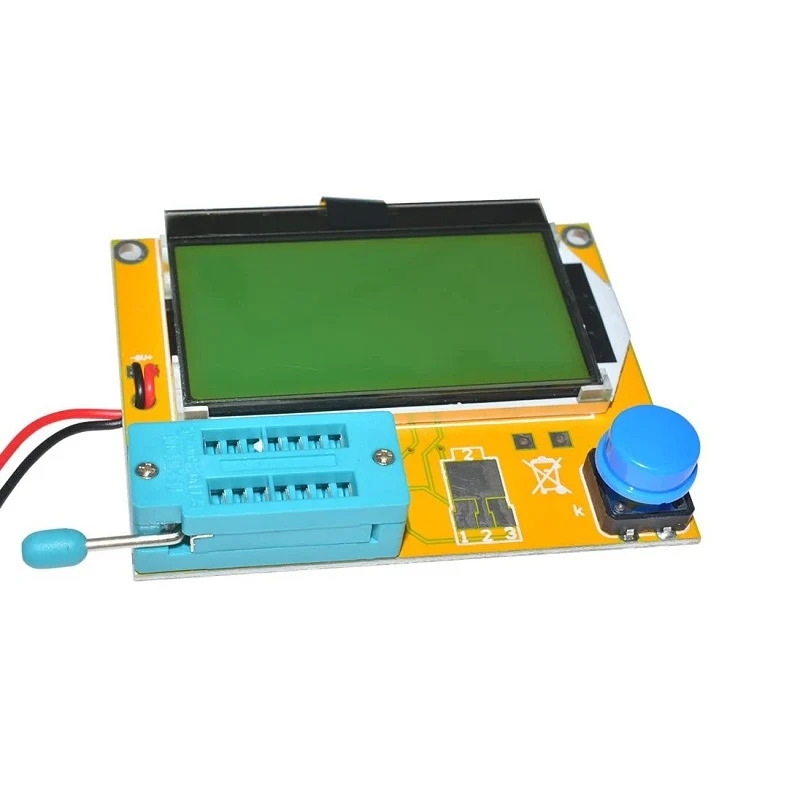

LCR-T4 12864 LCD Graphical Transistor Tester Resistance Capacitance ESR SCR Meter (Multifunction Component Tester)

The LCR-T4 is a multifunction electronic component tester featuring a 12864 graphical LCD display. It automatically identifies and measures transistors, resistors, capacitors, inductors, diodes, MOSFETs, SCRs, and other electronic components, making it an essential tool for electronics repair, testing, and development work.

Key Features -

• Large 12864 graphical LCD display

• Automatic component identification

• Tests transistors, MOSFETs, SCRs, triacs, and diodes

• Measures resistance, capacitance, and ESR

• One-button operation for easy use

• Portable and battery-powered design

• Fast and accurate component testing

• Suitable for hobbyists, students, and professionals

Specifications -

• Product type - Multifunction component tester

• Model - LCR-T4

• Display type - 12864 Graphical LCD

• Test functions - Resistance, Capacitance, ESR, Inductance, Diode, Transistor, MOSFET, SCR, Triac Testing

• Component identification - Automatic detection

• Operation mode - Automatic measurement and analysis

• Power supply - Battery powered

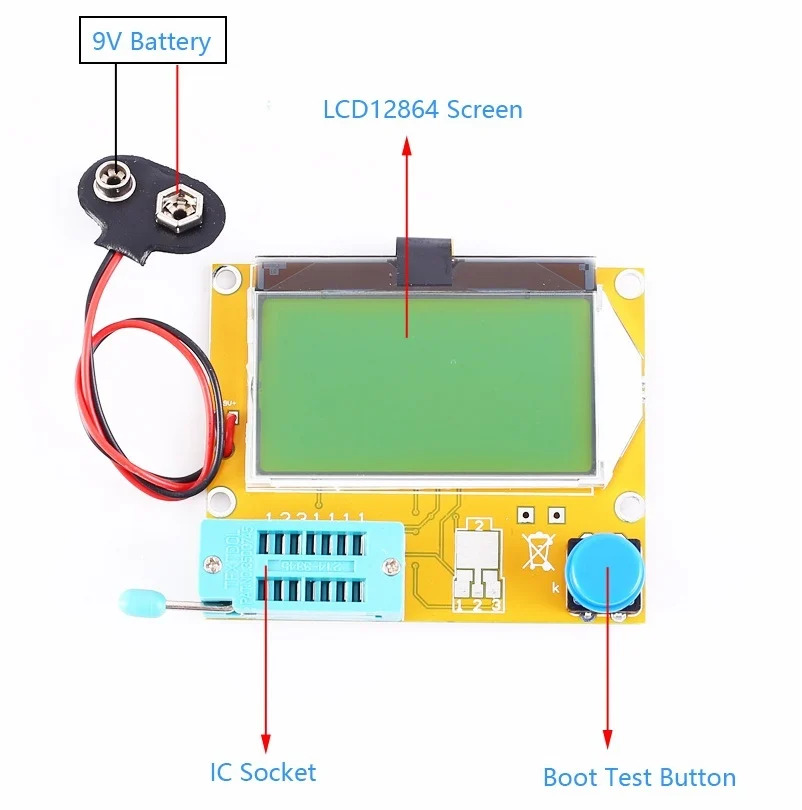

• Test interface - ZIF socket for component insertion

• Mounting type - Portable handheld instrument

• Material - PCB assembly with LCD display and test socket

• Additional features - Displays pin configuration, gain values, ESR, and component parameters automatically

Applications -

• Electronic component testing

• Repair and troubleshooting work

• Educational electronics laboratories

• Embedded system development

• DIY electronics projects

• Quality control and maintenance applications
