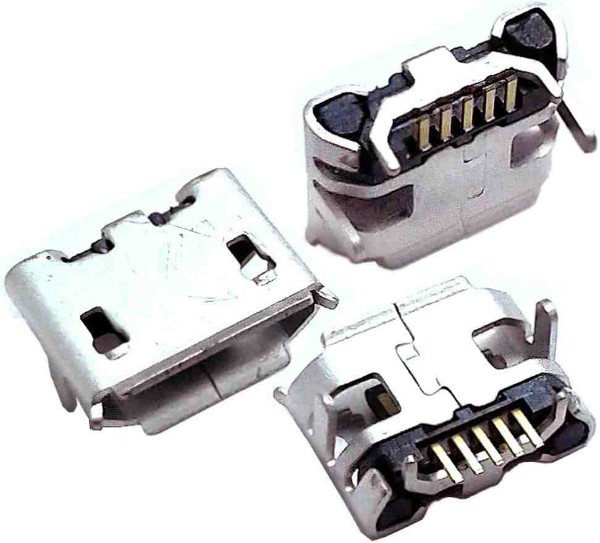

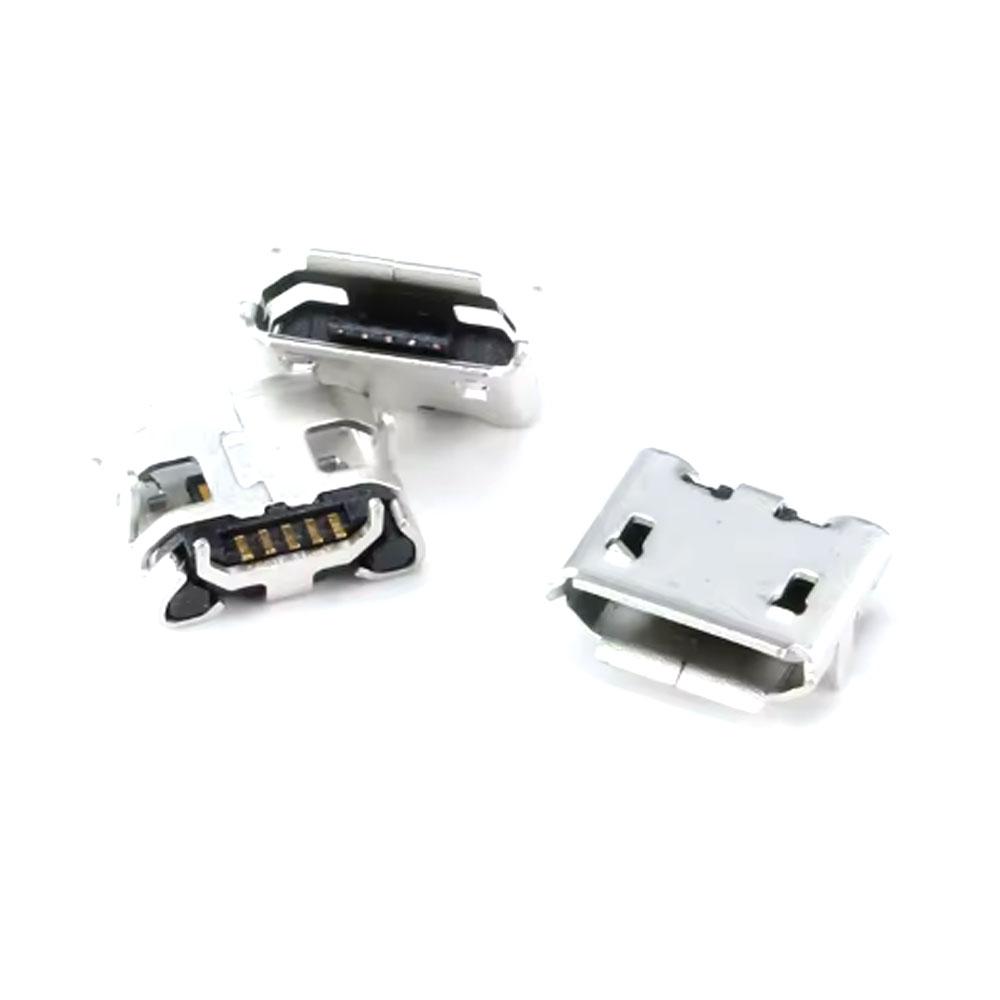

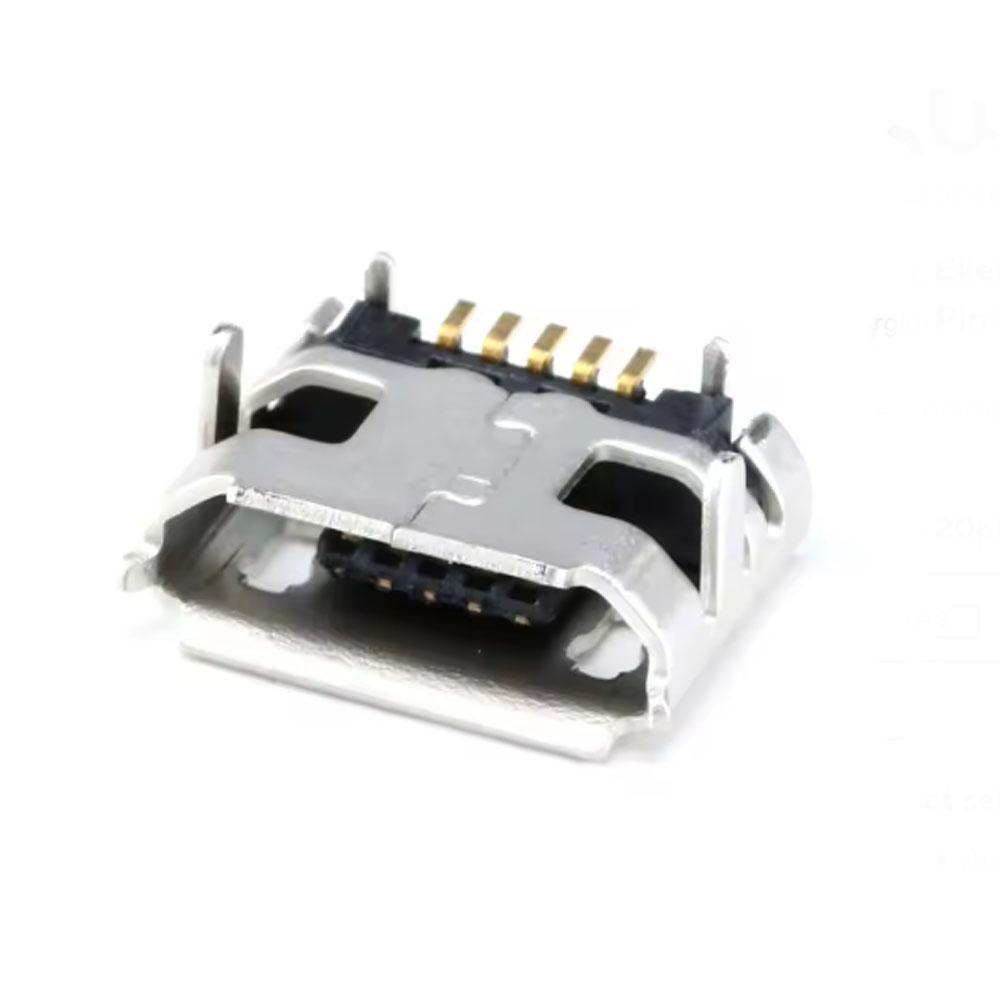

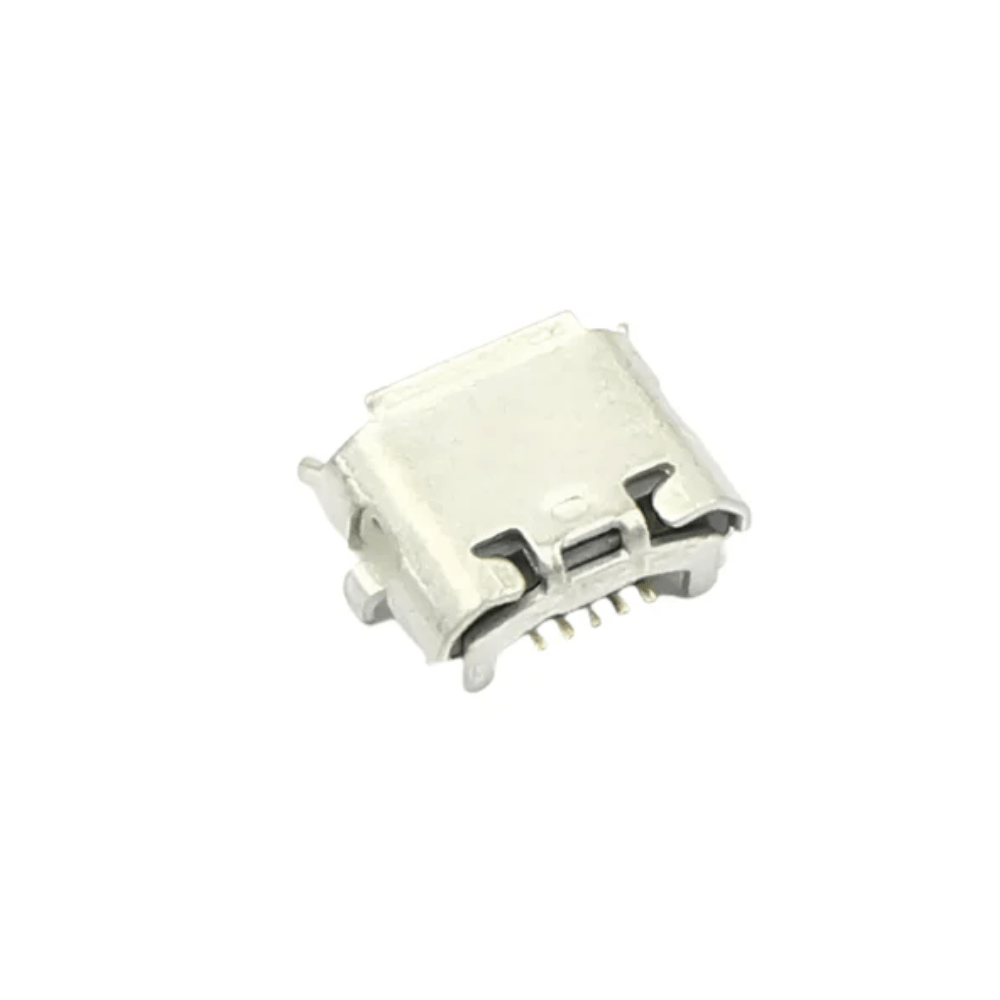

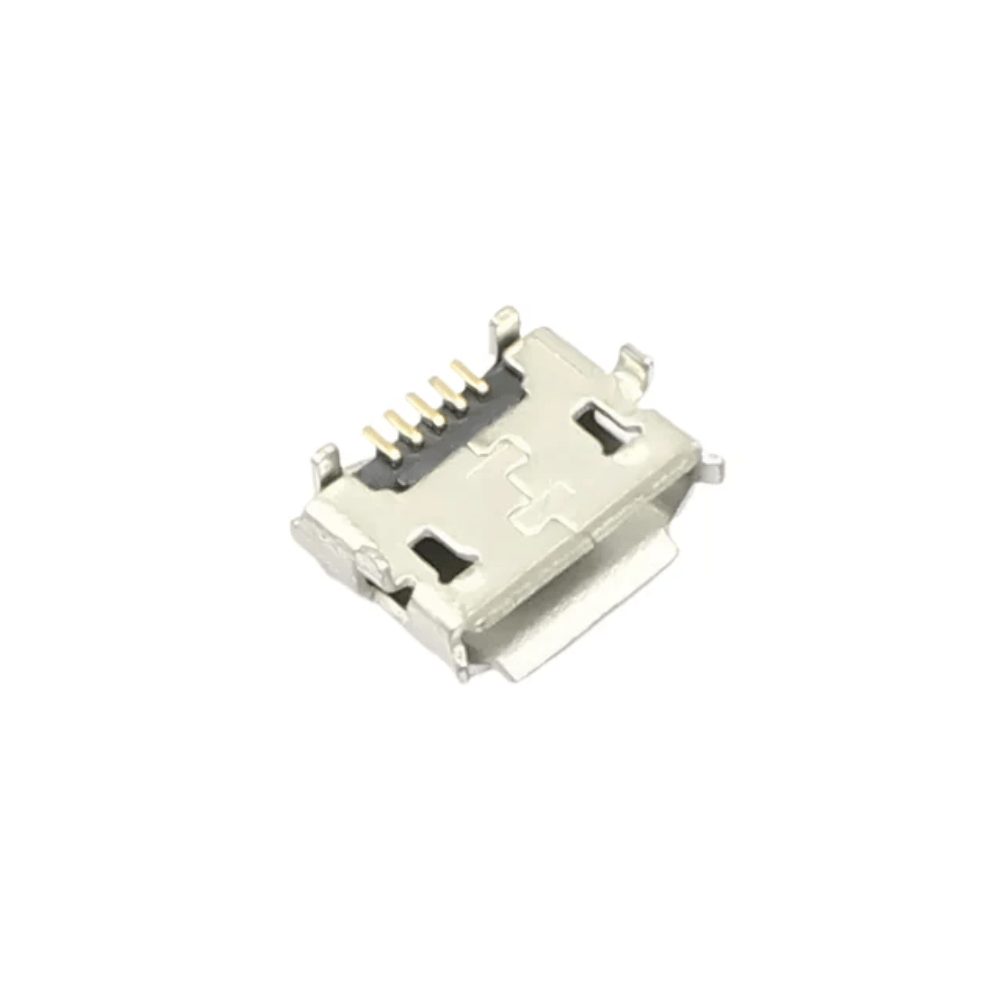

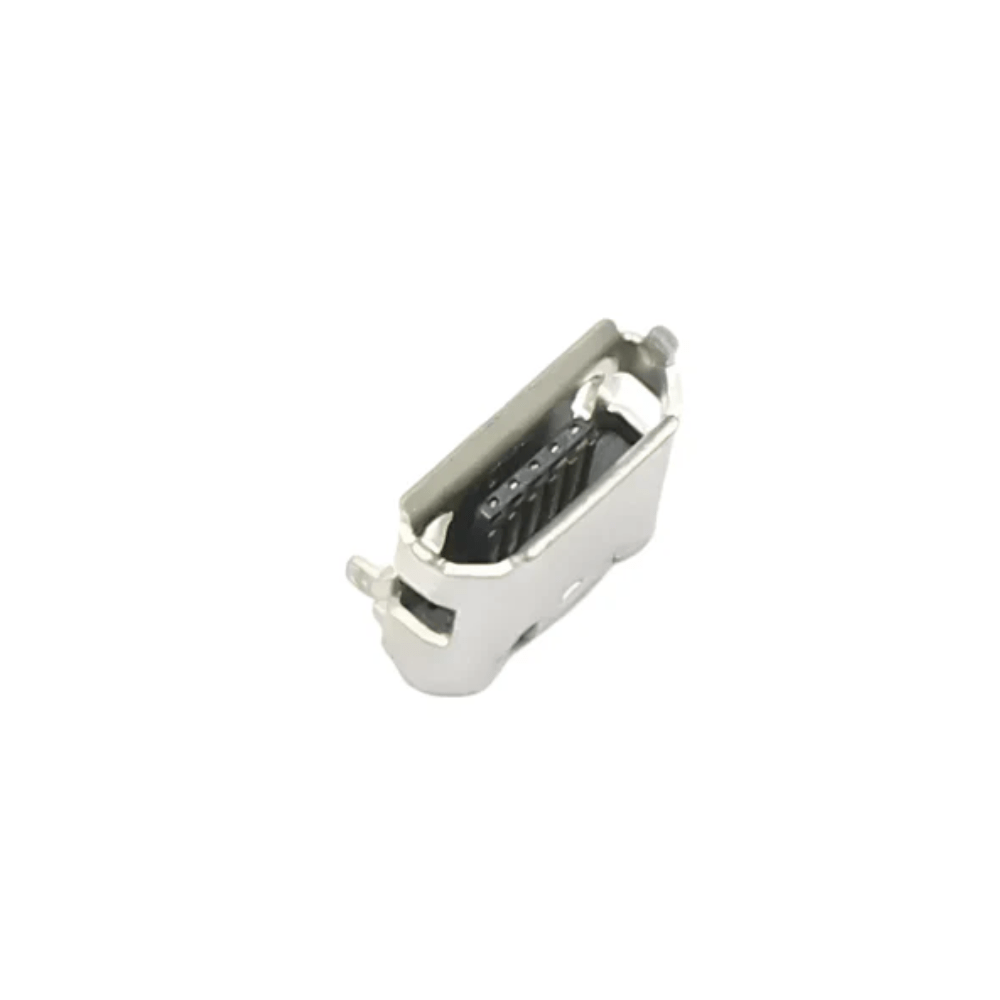

Micro USB 2.0 Type-B 5 Pin Female Connector (PCB Mount USB Socket)

The Micro USB 2.0 Type-B 5 Pin Connector is a compact PCB-mount female USB socket designed for USB data transfer and 5V power connections in smartphones, development boards, embedded systems, battery charging modules, and portable electronic devices. It features a 5-pin Micro USB Type-B interface, providing reliable electrical connectivity for charging, programming, and USB communication.

Its compact size and SMT/through-hole mounting options make it ideal for electronic product manufacturing, repairs, and DIY PCB projects.

Key Features -

• Micro USB 2.0 Type-B 5-pin female connector

• Supports USB 2.0 data transfer and power input

• Compact PCB mount design

• Reliable electrical and mechanical connection

• Suitable for charging and data communication

• Durable metal shielding shell

• Ideal for embedded and portable electronics

Specifications -

• Product Type: Micro USB Connector

• Connector Type: Micro USB 2.0 Type-B Female

• Number of Pins: 5

• USB Standard: USB 2.0

• Mounting Type: PCB Mount

• Termination Type: Solder (SMT/Through-Hole depending on model)

• Contact Material: Gold-Plated Copper Alloy

• Shell Material: Nickel-Plated Steel

• Application: USB Data and Power Connection

Applications -

• Mobile device charging circuits

• Development boards

• Arduino and embedded systems

• Power bank modules

• Portable electronic devices

• USB communication interfaces

• Electronic repairs and replacements

• DIY PCB projects
