Description

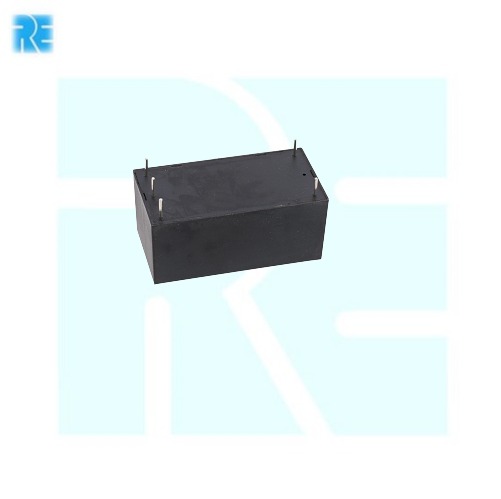

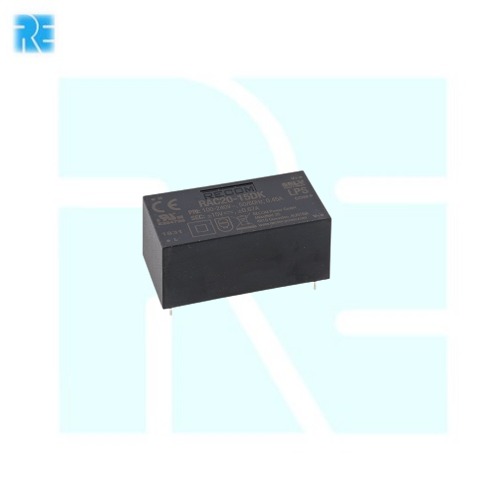

RAC20-15DK Switched power supply 20W ±15V
RAC-15
PCB mounted AC/DC switched power supply.
The module can be supplied with a voltage between 85-264VAC or 120-370VDC
and will convert it to two stabilized DC voltages.
Maximum output power is 20W.
The output is protected against short-circuit, overload and over voltage.
Please observe that the module is powered with mains voltage
Input voltage: 85 – 264VAC / 120 – 370VDC
Output voltage: -15VDC / +15VDC
Output current: 670mA / 670mA
Maximum power: 20W
Dimensions: 52.5 x 27.4 x 23mm
Manufacturer: Recom
Part.no: RAC20-15DK
Additional Information
| Weight | 5.63 g |
|---|
