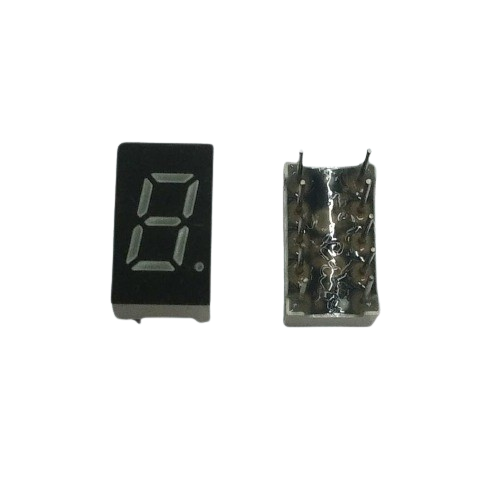

Foryard FYS-3013AS-11 0.3 Inch Common Cathode Red LED Display (Single Digit 7-Segment)

The Foryard FYS-3013AS-11 is a 0.3 inch red LED display designed for numeric indication in electronic circuits and embedded systems. It uses a common cathode configuration, in which the cathodes of the LED segments are connected to a common terminal. The display is suitable for microcontroller projects, digital counters, measurement instruments, and electronic control panels.

Key Features -

• 0.3 inch single-digit LED display

• Red LED illumination

• Common cathode configuration

• Seven-segment numeric display

• Suitable for digital display circuits

• Compatible with appropriate LED display driver circuits

• Compact form factor for electronic equipment

• Individual segment control for displaying numeric digits

Specifications -

• Part Number: FYS-3013AS-11

• Manufacturer: Foryard

• Category: LED Displays

• Display Type: Single-digit 7-segment LED display

• Character Height: 0.3 inch

• Display Colour: Red

• LED Configuration: Common cathode

• Display Technology: Light Emitting Diode (LED)

• Segment Configuration: Seven segments with decimal point, subject to the specific model configuration

• Operating Voltage: Depends on the LED forward voltage and external current-limiting circuit

• Drive Type: Direct segment drive or compatible display driver

• Package Type: Through-hole display, subject to manufacturer specification

• Additional Features: Numeric display for electronic indication and control applications

Applications -

• Digital counters and timers

• Microcontroller-based projects

• Arduino and embedded electronics projects

• Digital voltmeters and measurement instruments

• Electronic control panels

• Clock and temperature display circuits

• Industrial instrumentation

• Numeric status indicators

• DIY electronics and educational projects
