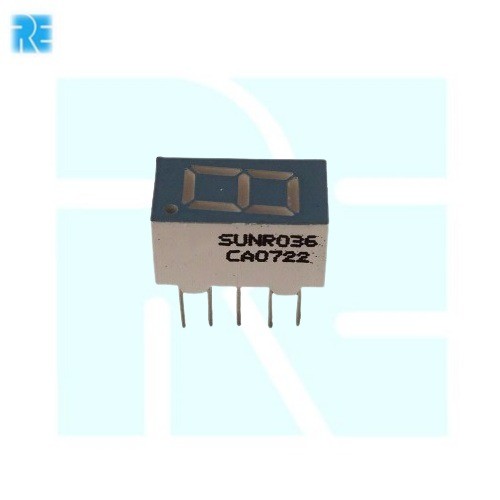

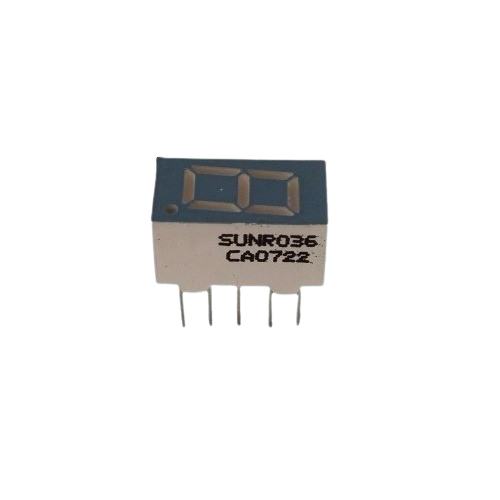

0.36 Inch Common Anode LED Display SUN-SUNR036CA0722 (7-Segment)

The SUN-SUNR036CA0722 is a 0.36-inch seven-segment LED display designed for displaying numeric digits and supported characters in electronic circuits. Its common anode configuration connects the LED segment anodes to a shared positive supply, while individual segments are controlled through their cathode connections. It is suitable for digital instruments, counters, measurement equipment, and embedded electronic projects.

Key Features -

• 0.36-inch digit display

• Common anode (CA) configuration

• Seven-segment LED display for numeric indication

• Compact size for PCB mounting

• Suitable for digital readouts and electronic instruments

• Individual segment control

• Model: SUN-SUNR036CA0722

Specifications -

• Model Number: SUN-SUNR036CA0722

• Display Type: Seven-segment LED display

• Digit Height: 0.36 inch

• Digit Height in Millimetres: Approximately 9.14 mm

• Configuration: Common anode

• Display Technology: Light Emitting Diode (LED)

• Display Colour: Verify manufacturer datasheet

• Number of Digits: Verify manufacturer datasheet

• Forward Voltage: Depends on LED colour and segment current

• Maximum Forward Current: Verify manufacturer datasheet

• Mounting Type: Through-hole PCB mount, subject to the specific package

• Pin Configuration: Refer to the manufacturer's pinout diagram

Applications -

• Digital voltmeters and ammeters

• Electronic counters and timers

• Digital clocks and frequency meters

• Measurement and test instruments

• Embedded systems and microcontroller projects

• Industrial control panels

• Numeric status and value indicators
