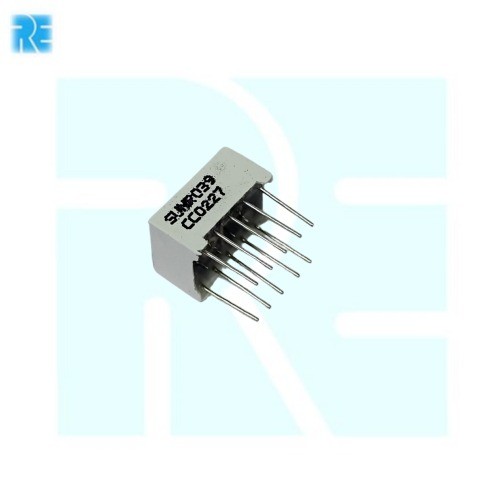

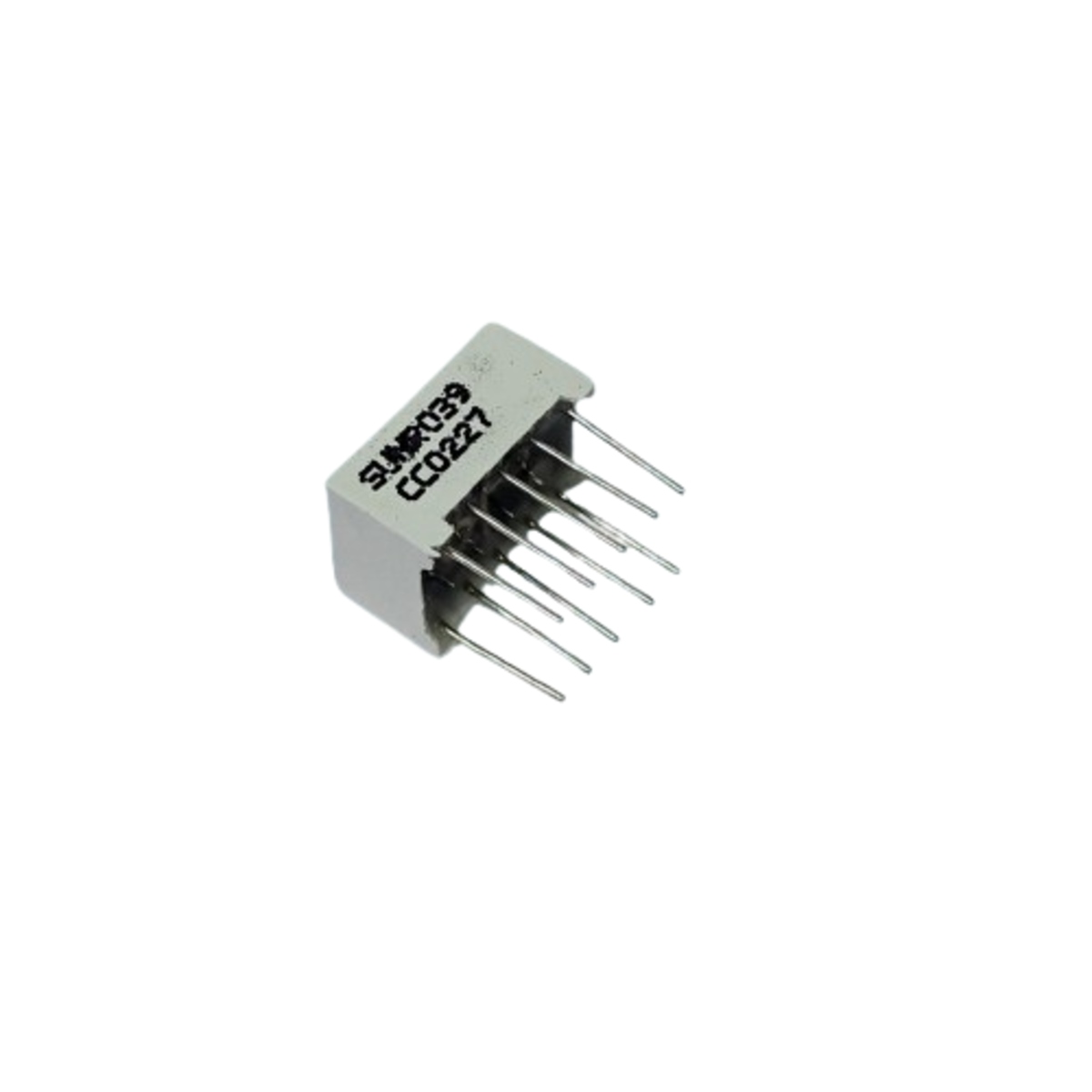

CCO227 0.39 Inch LED Display (Common Cathode, Single Digit 7-Segment)

The CCO227 0.39 inch LED display is a numeric display component designed for electronic circuits, embedded systems, and digital instrumentation. It features a common cathode configuration, in which the cathodes of the LED segments share a common connection. The display can be used with suitable driver circuits to display numeric values in counters, timers, measurement instruments, and electronic control panels.

Key Features -

• 0.39 inch character height

• Common cathode LED configuration

• Seven-segment numeric display design

• Individual segment control for numeric representation

• Suitable for digital display circuits

• Compatible with appropriate LED driver circuits

• Requires current-limiting resistors for safe operation

• Suitable for through-hole PCB integration if supported by the package

Specifications -

• Part Number: CCO227

• Category: 7-Segment LED Displays

• Display Type: Numeric LED display

• Character Height: 0.39 inch

• LED Configuration: Common cathode

• Segment Configuration: Seven segments

• Display Colour: Not confirmed

• Display Technology: Light Emitting Diode (LED)

• Operating Voltage: Depends on LED forward voltage and the drive circuit

• Drive Method: Direct segment drive or compatible LED driver

• Mounting Type: To be confirmed from the manufacturer's datasheet

• Package Type: To be confirmed from the manufacturer's datasheet

• Electrical Connection: Individual segment terminals and common cathode connection

Applications -

• Digital counters and timers

• Digital measurement instruments

• Microcontroller-based display circuits

• Electronic control panels

• Numeric status indicators

• Industrial instrumentation

• Embedded system interfaces

• Educational electronics projects
