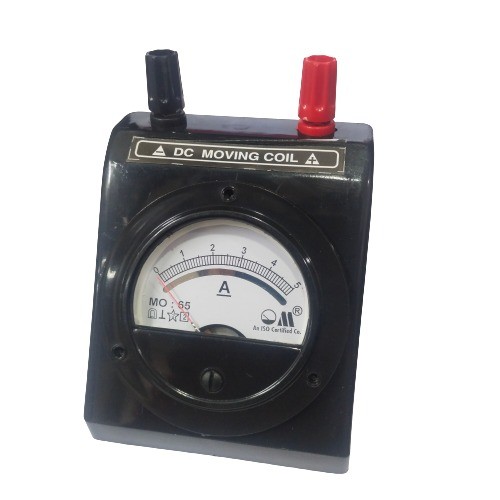

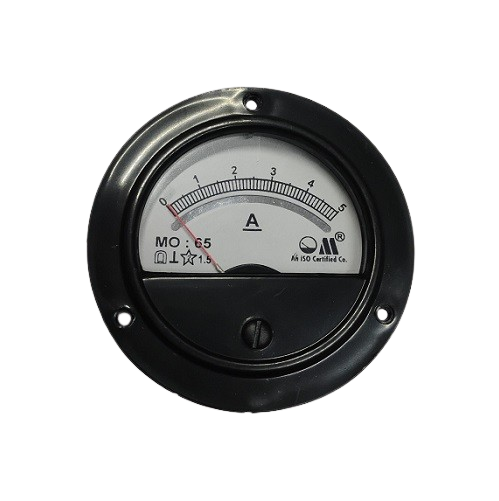

0-5A DC Analog Ammeter (Moving Coil, 1.5% Accuracy)

The 0-5A DC Analog Ammeter is designed to measure direct current in electrical circuits and electronic equipment. Featuring a moving coil mechanism and an accuracy class of 1.5%, it provides a visual indication of current through a graduated analog scale. It is suitable for laboratory experiments, DC power supply monitoring, electrical panels, and electronic testing applications.

Key Features -

• DC current measurement range from 0A to 5A

• Moving coil (MO) mechanism, as specified

• Accuracy class of 1.5%

• Analog pointer display with a graduated scale

• Suitable for DC current monitoring

• Designed for electrical panels and laboratory use

Specifications -

• Product Type: Analog Ammeter

• Measurement Type: DC current

• Measurement Range: 0-5A DC

• Operating Principle: Moving coil mechanism

• Accuracy Class: 1.5%

• Display Type: Analog pointer and graduated scale

• Mounting Type: Verify the specific meter model

• Scale Graduation: Refer to the meter dial

• Connection Type: Direct or shunt-based, depending on the meter design

• Polarity: Observe the positive and negative terminal markings

Applications -

• DC power supply current monitoring

• Battery charging and testing circuits

• Electronic laboratory experiments

• Electrical control panels

• DC motor and load testing

• Electronic circuit troubleshooting

• Current indication in DC equipment
