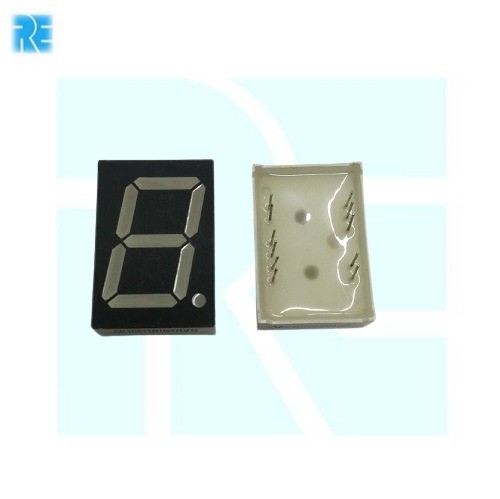

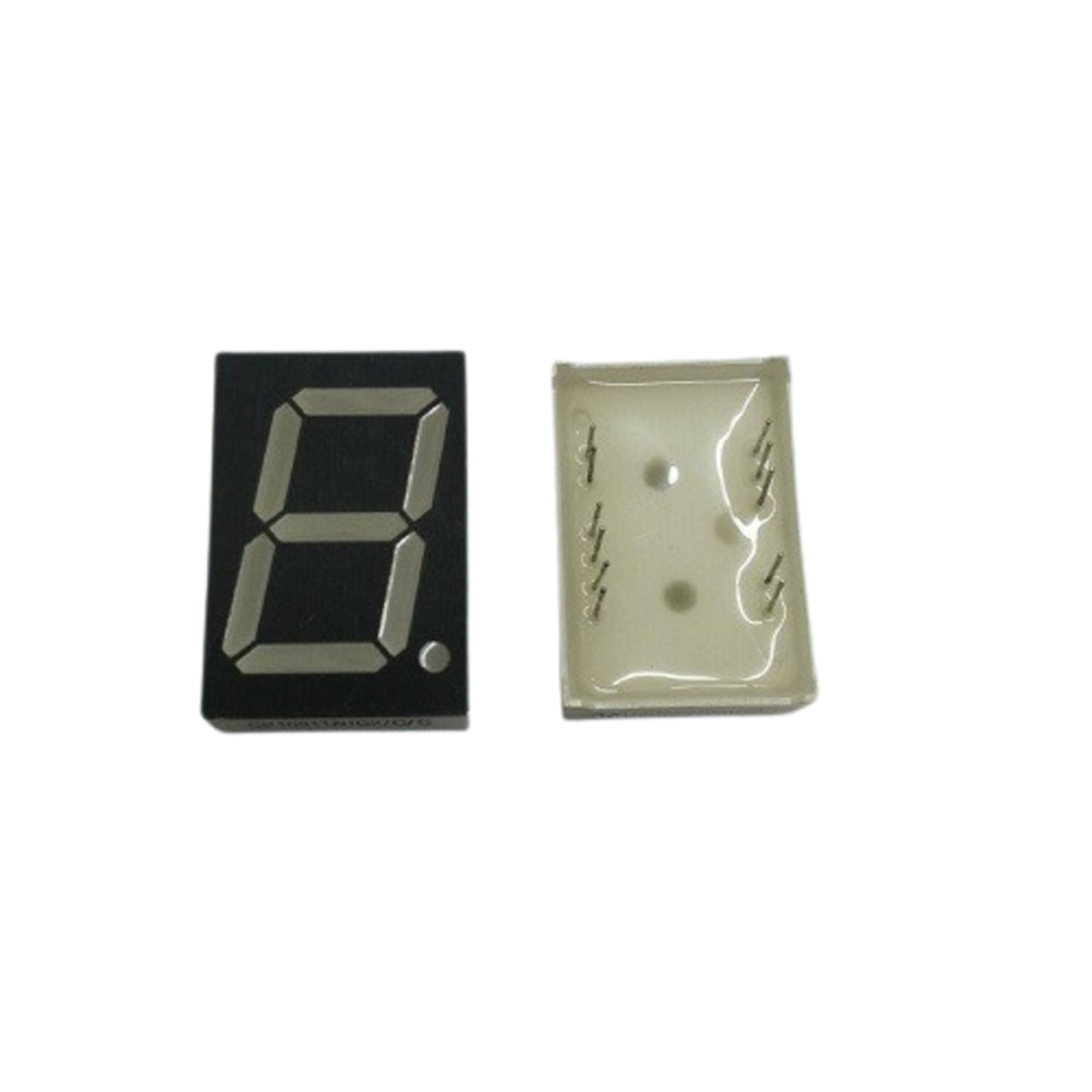

1 Inch Green 7-Segment LED Display CP10011AUG2-C-C (Common Cathode)

The CP10011AUG2-C-C is a 1 inch green 7-segment LED display designed for numerical indication in electronic instruments, control panels, and measurement equipment. Its common cathode configuration allows individual segments to be controlled through their anode connections. The large digit height provides clear visibility in applications requiring easily readable numeric information.

Key Features -

• 1 inch digit height for enhanced readability

• Green LED illumination

• Common cathode configuration

• Seven-segment numeric display

• Suitable for large numeric indicator applications

Specifications -

• Model: CP10011AUG2-C-C

• Display Type: 7-Segment LED Display

• Digit Height: 1 Inch

• Display Colour: Green

• Common Terminal Configuration: Common Cathode

• Display Format: Single Digit, subject to manufacturer datasheet confirmation

• Electrical Ratings: Refer to the manufacturer datasheet

Applications -

• Digital counters and timers

• Voltage and current measuring instruments

• Industrial control panels

• Electronic test equipment

• Numeric status indicators

• Microcontroller-based display systems

Working Principle -

The display contains seven light-emitting diode segments arranged to represent numerical digits from 0 to 9. In a common cathode configuration, the cathodes of the LED segments share a common negative connection. Individual segments illuminate when a suitable positive voltage is applied to their anodes through current-limiting resistors or compatible driver circuitry. Activating the required combination of segments produces the desired number.

Pin Configuration -

• Common Cathode: Shared negative connection for the LED segments

• Segment Pins: Individual connections for segments A, B, C, D, E, F and G

• Decimal Point: Availability and pin assignment should be verified using the manufacturer datasheet

• Refer to the CP10011AUG2-C-C datasheet for exact pin numbering, forward voltage, and maximum segment current before circuit connection.
