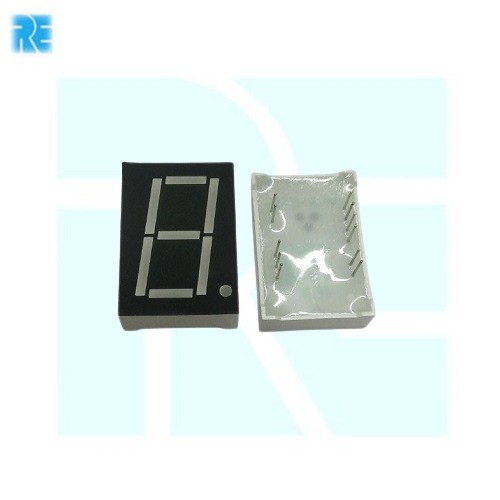

1 Inch Red 7-Segment LED Display FYS-10011AS-11 (Common Cathode, Foryard)

The Foryard FYS-10011AS-11 is a 1 inch red 7-segment LED display designed for numeric indication in electronic circuits, embedded systems, and digital instrumentation. It features a common cathode configuration, in which the cathodes of the LED segments share a common connection. Its large character size improves readability, making it suitable for digital counters, measurement instruments, industrial control panels, and numeric display applications.

Key Features -

• 1 inch character height

• Red LED illumination

• Common cathode configuration

• Seven-segment numeric display

• Large character size for improved readability

• Individual segment control for numeric representation

• Suitable for digital display circuits

• Compatible with appropriate LED driver circuits

• Requires current-limiting resistors for safe operation

Specifications -

• Part Number: FYS-10011AS-11

• Manufacturer: Foryard

• Category: 7-Segment LED Displays

• Display Type: Numeric LED display

• Character Height: 1 inch

• Display Colour: Red

• LED Configuration: Common cathode

• Segment Configuration: Seven segments

• Display Technology: Light Emitting Diode (LED)

• Operating Voltage: Depends on LED forward voltage and the drive circuit

• Drive Method: Direct segment drive or compatible LED driver

• Mounting Type: Refer to the manufacturer's datasheet for confirmation

• Package Type: Refer to the manufacturer's datasheet for confirmation

• Electrical Connection: Individual segment terminals and common cathode connection

Applications -

• Digital counters and timers

• Digital voltmeters and measurement instruments

• Industrial control panels

• Numeric status indicators

• Electronic weighing scales

• Microcontroller-based display systems

• Production and process monitoring equipment

• Laboratory instruments

• Educational electronics projects
