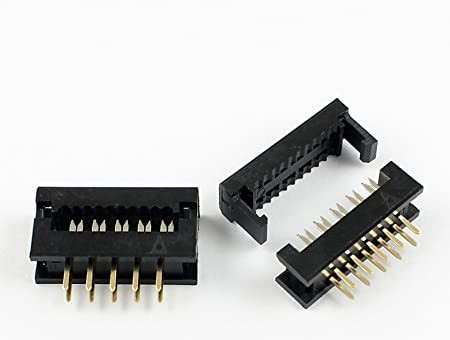

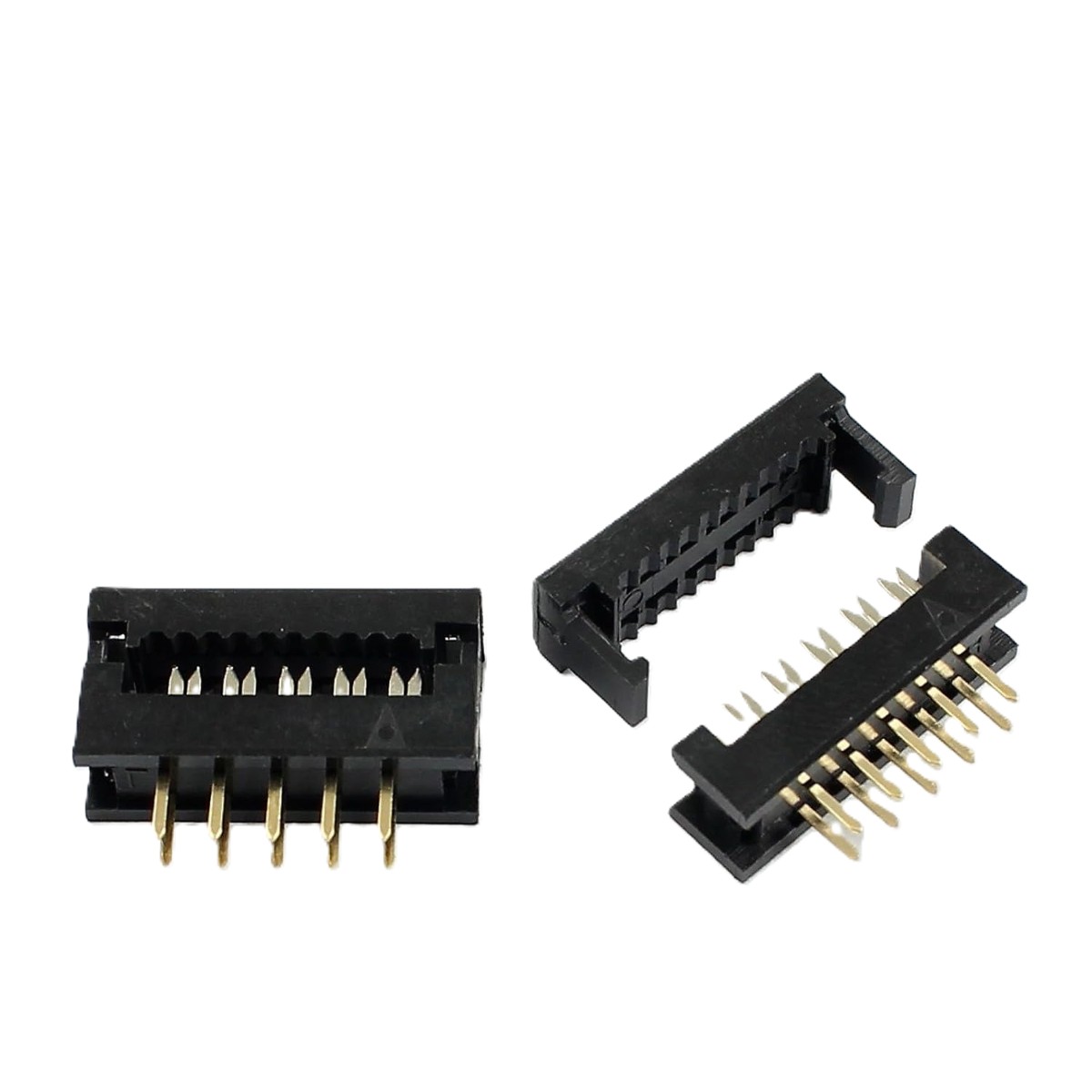

10 Pin FRC IDC Box Transition Straight Male Connector 5x2 Pin 2.54mm (Ribbon Cable Transition Header)

The 10 Pin FRC IDC Box Transition Straight Male Connector is a 5x2 dual-row PCB transition header designed for reliable ribbon cable-to-PCB connections in embedded systems, industrial electronics, communication equipment, and electronic control applications. Featuring a 2.54mm pitch and straight through-hole mounting, it provides secure mechanical retention and stable signal transmission. Its polarized transition box design ensures correct connector orientation and reliable mating with compatible 10-pin FRC/IDC female ribbon cable connectors.

The transition header is ideal for applications requiring secure wire-to-board connectivity with easy ribbon cable assembly and dependable electrical performance.

Key Features -

• 10-pin box transition male connector

• 5x2 dual-row pin configuration

• Standard 2.54mm pitch spacing

• Compatible with FRC and IDC ribbon cable connectors

• Polarized transition box design for correct alignment

• Straight through-hole PCB mounting

• Reliable electrical and mechanical connection

Specifications -

• Product Type: FRC IDC Box Transition Male Connector

• Number of Pins: 10

• Pin Configuration: 5x2 Dual Row

• Pitch: 2.54mm

• Orientation: Straight

• Mounting Type: Through-Hole PCB Mount

• Connector Type: FRC/IDC Compatible Transition Header

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Ribbon Cable to PCB Connection

Applications -

• Ribbon cable interfacing

• Embedded system connections

• Industrial control electronics

• PCB communication interfaces

• Microcontroller development boards

• Computer peripherals

• Electronic prototyping

• DIY electronic projects
