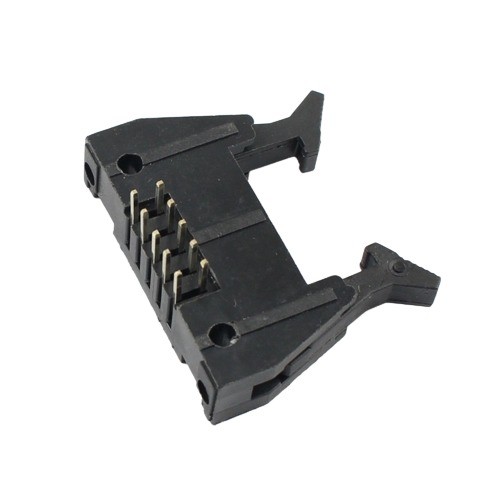

10 Pin FRC/IDC Right Angle Male Header with Lock 5x2 Pin 2.54mm (Box Header Connector)

The 10 Pin FRC/IDC Right Angle Male Header with Lock is a 5x2 dual-row PCB box header designed for reliable ribbon cable-to-PCB connections in embedded systems, communication equipment, industrial electronics, and microcontroller-based applications. Featuring a 2.54mm pitch and right-angle through-hole mounting, it provides secure mechanical retention and stable signal transmission while saving PCB space. The integrated locking mechanism and polarized housing ensure secure mating with compatible 10-pin FRC/IDC female ribbon cable connectors.

Its rugged construction makes it ideal for both prototype development and production electronics.

Key Features -

• 10-pin 5x2 dual-row connector configuration

• Standard 2.54mm pitch spacing

• Right-angle male box header design

• Integrated locking mechanism for secure mating

• Compatible with FRC and IDC ribbon cable connectors

• Polarized housing prevents incorrect insertion

• Durable through-hole PCB mounting construction

Specifications -

• Product Type: FRC/IDC Box Header Connector

• Model: 10 Pin Right Angle Male Header

• Number of Pins: 10

• Pin Configuration: 5x2 Dual Row

• Pitch: 2.54mm

• Orientation: Right Angle

• Mounting Type: Through-Hole PCB Mount

• Connector Type: FRC/IDC Compatible Box Header

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Ribbon Cable to PCB Connection

Applications -

• Ribbon cable interconnections

• Embedded system interfaces

• Microcontroller development boards

• Computer peripheral connections

• Industrial electronic control systems

• Communication equipment

• Electronic prototyping

• DIY electronic projects
