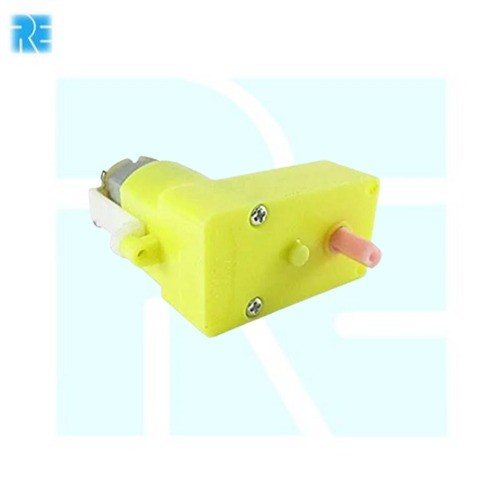

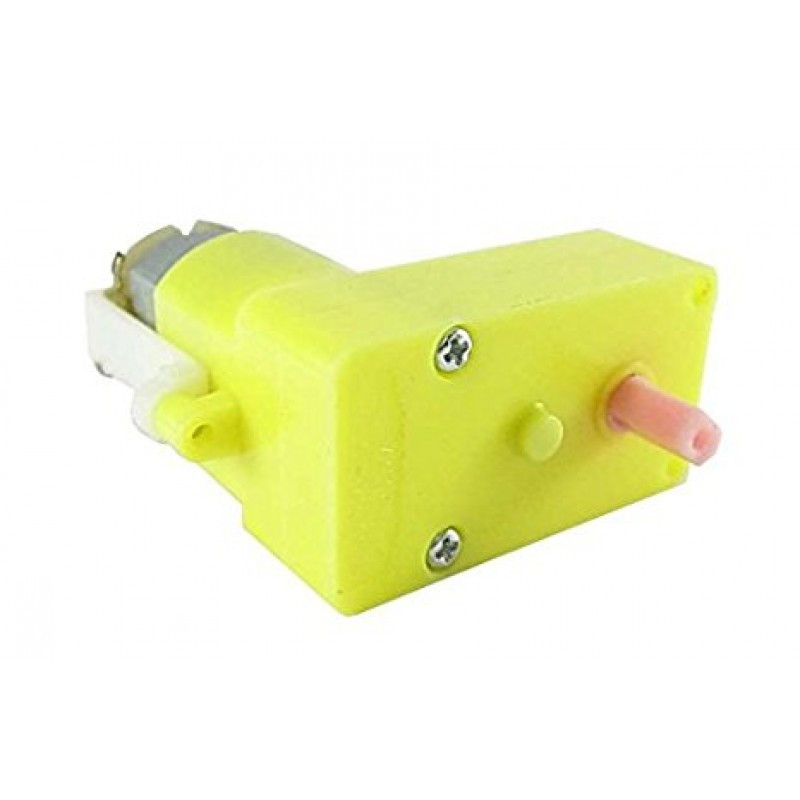

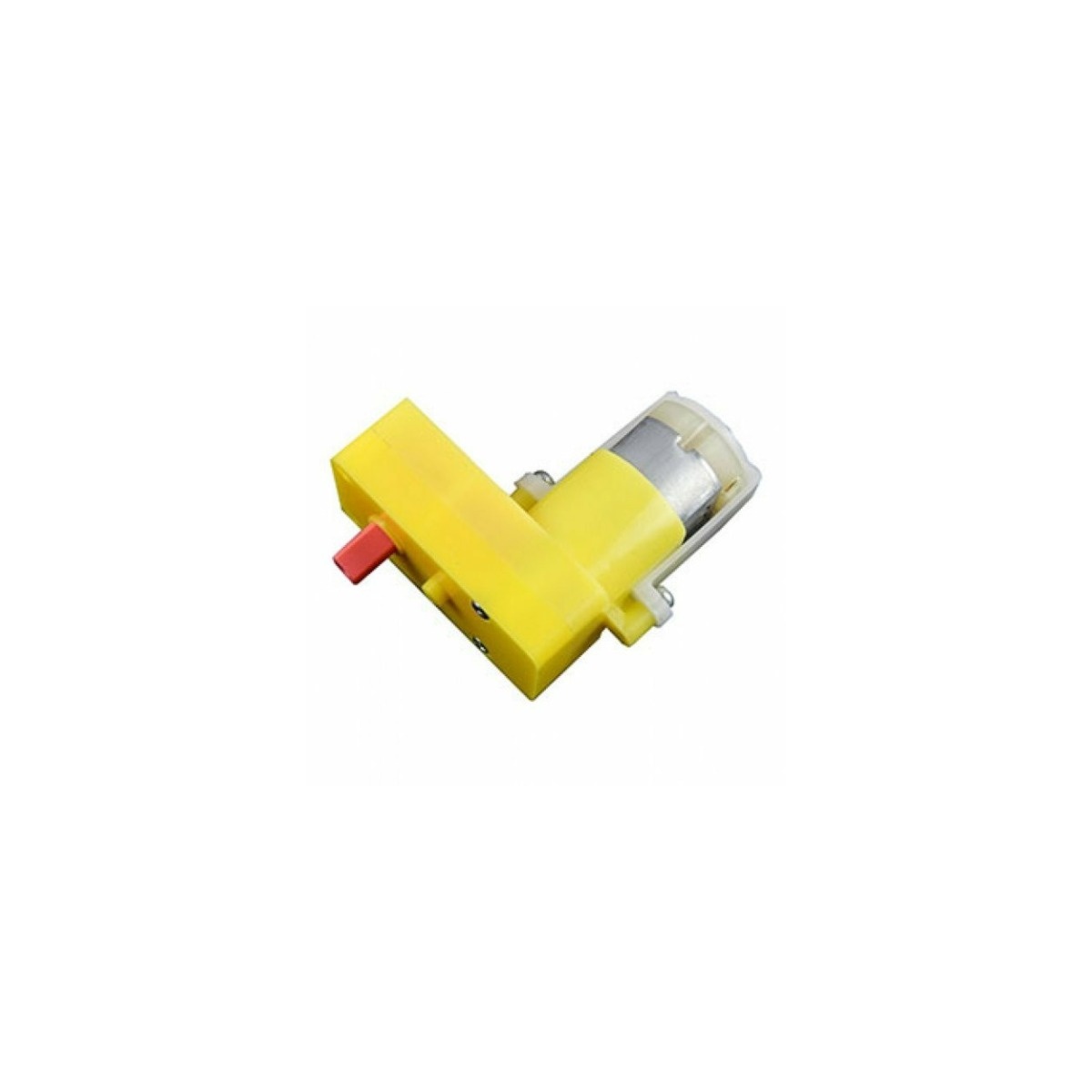

100RPM Single Shaft L-Shape BO Motor DC Gear Motor (High Torque Robot Motor)

The 100RPM Single Shaft L-Shape BO Motor is a compact and cost-effective DC geared motor designed for robotics, educational kits, automation projects, and DIY electronics. It delivers 100RPM with good torque and stable performance over a 3V to 12V DC operating range, making it ideal for small and medium-sized robotic platforms.

Its lightweight L-shaped gearbox design, integrated mounting holes, and compatibility with standard 69mm BO motor wheels enable quick and easy installation in robot chassis. The motor is widely used in line follower robots, obstacle avoidance robots, smart cars, and educational STEM projects.

Key Features -

• 100RPM geared motor output

• Single shaft L-shape gearbox design

• High torque at low operating voltage

• Lightweight and compact construction

• Compatible with 69mm BO motor wheels

• Easy chassis mounting

• Bidirectional rotation support

• Low power consumption

• Smooth and reliable operation

• Ideal for robotics and DIY projects

Specifications -

• Product type - DC Geared BO Motor

• Motor design - L-Shaped

• Output speed - 100RPM

• Operating voltage - 3V to 12V DC

• Shaft length - 7mm

• Shaft diameter - 5.5mm

• Output torque - 0.8kg-cm

• No-load current - 40mA to 180mA

• Dimensions - 55 × 48 × 23mm

• Rotation direction - Bidirectional (By Polarity Reversal)

Applications -

• Robot cars

• 2WD robotic platforms

• Line follower robots

• Obstacle avoidance robots

• Educational robotics kits

• DIY automation projects

• Motion control systems

• Arduino and ESP32 projects

• STEM learning kits

• Hobby electronics
