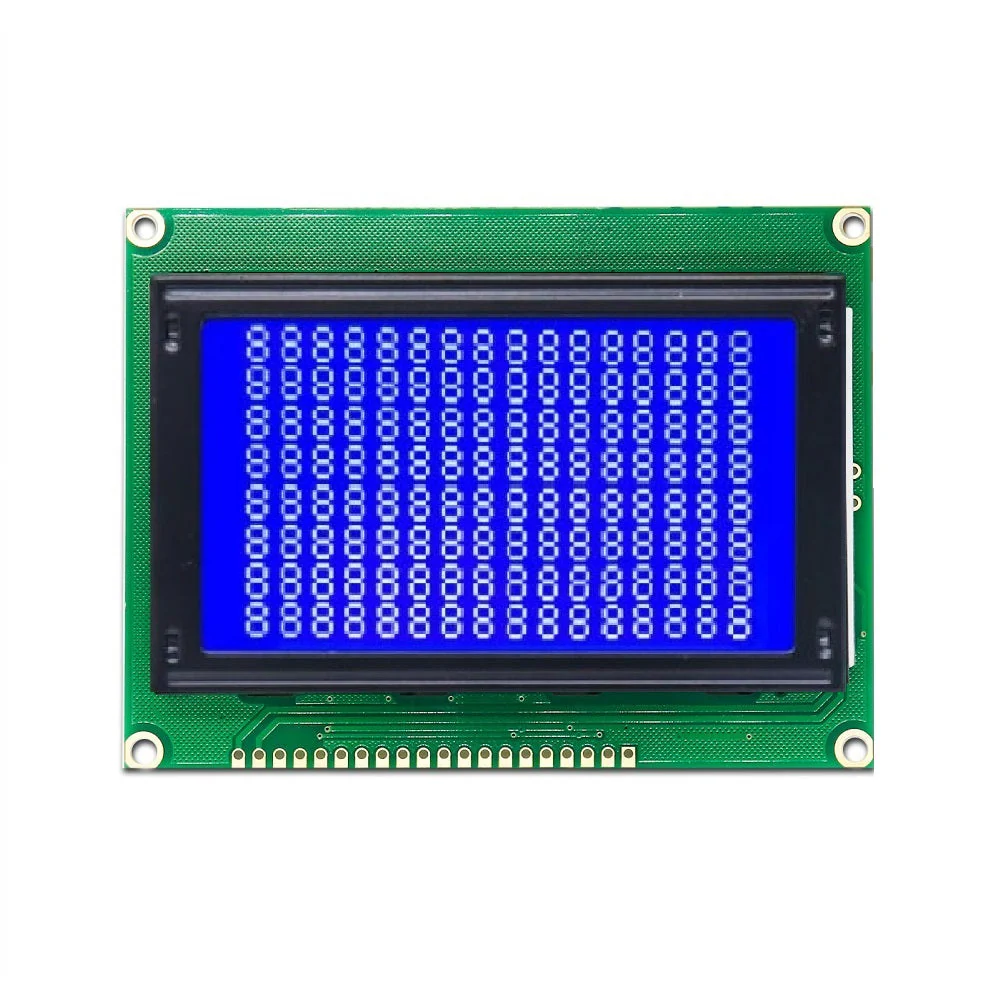

128x64 Graphic Blue LCD Display Module JHD (5V, 128x64 Pixels)
The JHD 128x64 Graphic Blue LCD Display Module is a pixel based display designed for embedded systems, instrumentation, and microcontroller projects requiring graphical output. With a resolution of 128 x 64 pixels, it supports the presentation of text, symbols, icons, and simple graphics, making it suitable for applications that need more flexible visual output than a character LCD.
The module features a blue backlight with white display elements and a parallel control interface. It is suitable for integration with compatible microcontrollers, including Arduino, STM32, PIC, and AVR platforms. Confirm the exact controller and communication protocol from the module datasheet before selecting a library or designing the interface.
Key Features -
• 128 x 64 pixel graphic display resolution
• Supports text, symbols, icons, and simple graphics
• Blue LED backlight
• White display elements on a blue background
• Parallel interface for display control
• Suitable for compatible Arduino, STM32, PIC, and AVR platforms
• Compact design for embedded systems and instrumentation
• Suitable for custom graphical user interfaces
Specifications -
• Product Type: Graphic LCD Display Module
• Brand: JHD
• Display Format: 128x64 Pixels
• Total Resolution: 8192 Pixels
• Backlight Colour: Blue
• Display Element Colour: White
• Input Voltage: 5V DC, verify with the specific module datasheet
• Supply Current: 2 mA, as specified for the supplied module; verify against the datasheet
• Interface Type: Parallel, verify the exact interface configuration
• Board Dimensions: 93 x 70 mm
• Display Area: 72 x 40 mm
• Controller: Refer to the specific module datasheet
Applications -
• Embedded system graphical interfaces
• Instrumentation and measurement equipment
• Sensor monitoring systems
• Industrial control panels
• Arduino and microcontroller projects
• Custom icons and symbol displays
• Electronic testing equipment
• DIY electronics and prototyping
