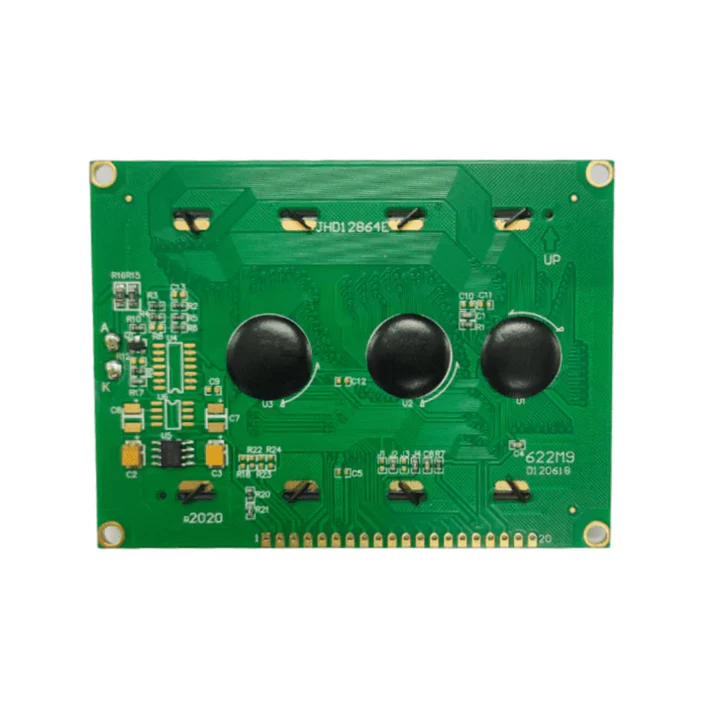

128x64 Graphic Green LCD Display Module JHD (KS0108 Compatible, 5V)

The 128x64 Graphic Green LCD Display Module from JHD is designed for displaying text, symbols, icons, and pixel based graphics in embedded electronic systems. With a 128x64 pixel resolution and a green LED backlight, it provides a practical display solution for custom graphical interfaces, measurement instruments, and microcontroller based projects.

The module uses a KS0108 compatible controller and operates on a 5V supply. Its compact design makes it suitable for Arduino, STM32, PIC, and AVR based applications, subject to controller and interface compatibility.

Key Features -

• 128x64 pixel resolution for text and graphical output

• Green LED backlight for improved display visibility

• KS0108 compatible graphic LCD controller

• Supports pixel based graphics, characters, and symbols

• Suitable for embedded systems and microcontroller projects

• 5V operating supply

• Compact module design for equipment and instrument panels

Specifications -

• Display Type: 128x64 Graphic LCD

• Display Resolution: 128 x 64 pixels

• Backlight Color: Green

• Controller: KS0108 compatible

• Interface: 8 bit parallel or SPI, subject to the specific module configuration

• Input Voltage: 5V

• Operating Temperature: Negative 20 C to positive 70 C

• Module Dimensions: 93.2 x 70.2 x 14 mm

• Weight: 75 g

Applications -

• Arduino and other microcontroller projects

• STM32, PIC, and AVR based embedded systems

• Digital measurement instruments

• Industrial control panels

• Electronic test equipment

• Data monitoring and display systems

• Custom graphical user interfaces
