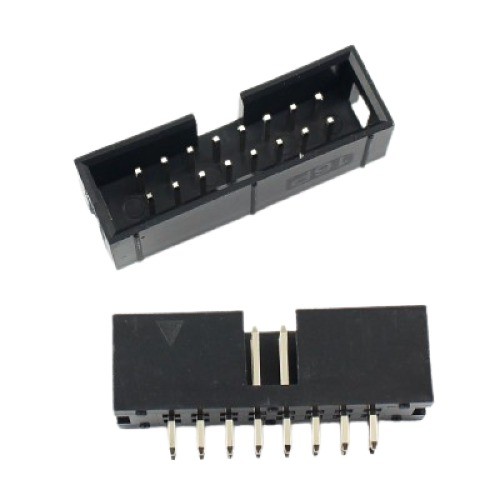

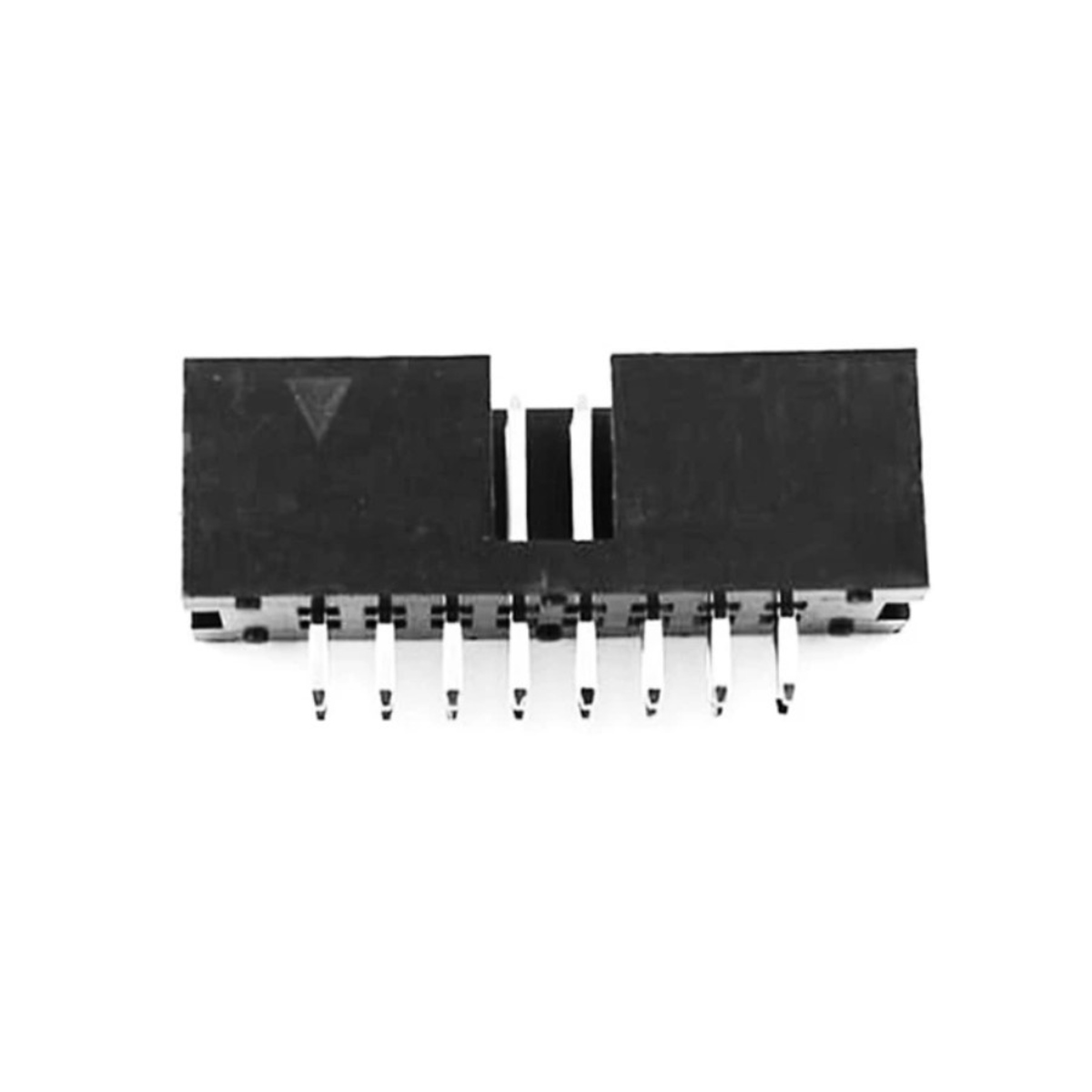

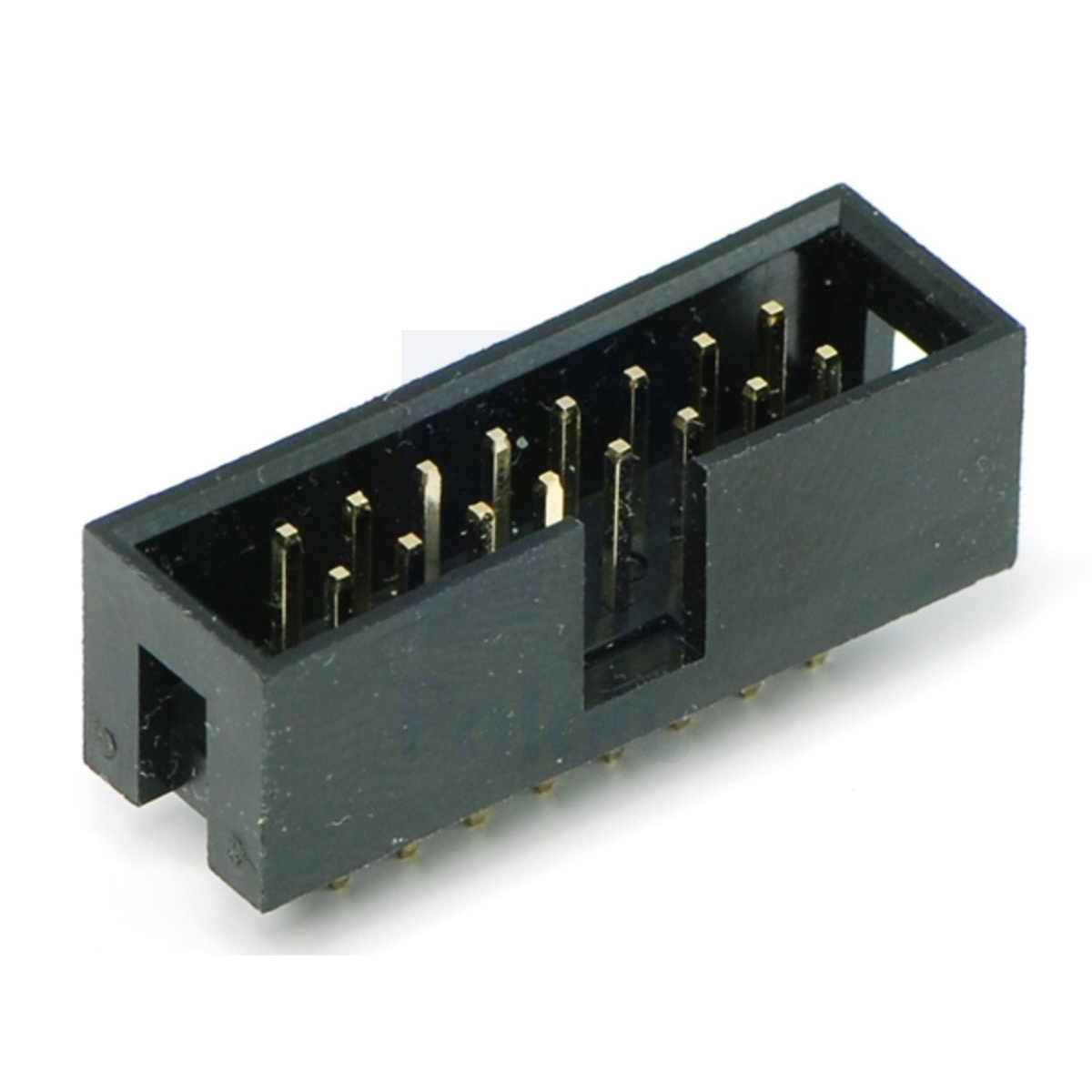

16 Pin FRC IDC Box Header Straight Male Connector 8x2 Pin 2.54mm (Ribbon Cable Box Header Connector)

The 16 Pin FRC IDC Box Header Straight Male Connector is a 8x2 dual-row PCB box header designed for reliable ribbon cable-to-PCB connections in embedded systems, industrial electronics, communication equipment, and development boards. Featuring a 2.54mm pitch and straight through-hole mounting, it provides secure mechanical retention and stable signal transmission. Its polarized box header design ensures proper connector alignment and reliable mating with compatible 16-pin FRC/IDC female ribbon cable connectors.

The robust construction makes it ideal for embedded systems, industrial control equipment, computer peripherals, and electronic prototyping requiring dependable wire-to-board connectivity.

Key Features -

• 16-pin straight box header connector

• 8x2 dual-row pin configuration

• Standard 2.54mm pitch spacing

• Compatible with FRC and IDC ribbon cable connectors

• Polarized box header for secure connector alignment

• Through-hole PCB mounting for reliable installation

• Durable construction with stable signal transmission

Specifications -

• Product Type: Box Header Male Connector

• Number of Pins: 16

• Pin Configuration: 8x2 Dual Row

• Pitch: 2.54mm

• Header Type: Straight Male Box Header

• Mounting Type: Through-Hole PCB Mount

• Connector Type: FRC/IDC Compatible Box Header

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Ribbon Cable to PCB Connection

Applications -

• Ribbon cable interfacing

• Embedded system connections

• Industrial control electronics

• PCB communication interfaces

• Microcontroller development boards

• Computer peripheral connections

• Electronic prototyping

• DIY electronic projects
