1mm Pitch 30 Pin FPC FFC SMT Flip Connector (30 Pin Surface Mount U Upper Contact Connector)

1mm Pitch 30 Pin FPC FFC SMT Flip Connector (30 Pin Surface Mount U Upper Contact Connector)

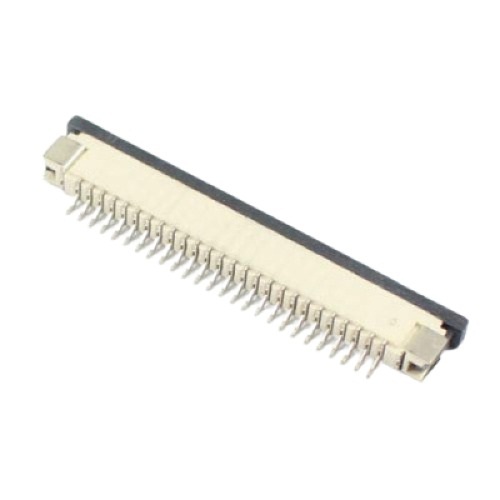

The 1mm Pitch 30 Pin FPC/FFC SMT Flip Connector is a compact surface mount connector designed for reliable connection of 30-pin Flat Flexible Cables (FFC) and Flexible Printed Circuits (FPC). Featuring a 1mm pin pitch and U-Upper Contact configuration, this flip-lock connector provides secure cable retention and dependable electrical performance. Constructed with phosphor bronze contacts and a high-temperature Nylon 46 UL94-V0 insulating body, it is suitable for consumer electronics, display modules, embedded systems, and Printed Circuit Board (PCB) assemblies.

Key Features -

• 30-pin FPC/FFC flip-lock connector

• Standard 1mm pin pitch

• U-Upper Contact configuration

• Surface Mount Device (SMD/SMT) mounting

• Secure flip-lock mechanism

• Phosphor bronze contacts for reliable conductivity

• High-temperature Nylon 46 UL94-V0 insulation

• Compact and lightweight design

• Suitable for automated PCB assembly

• Reliable connection for flexible flat cables

Specifications -

• Product Type - FPC/FFC Connector

• Connector Type - FFC/FPC

• Number of Pins - 30

• Pin Pitch - 1mm

• Contact Type - U-Upper Contact

• Mounting Type - SMD/SMT

• Rated Voltage - 50V

• Rated Current - 0.5A

• Contact Material - Phosphor Bronze

• Insulation Material - Nylon 46 UL94-V0

• Contact Resistance - 20mΩ (Maximum)

• Insulation Resistance - 800MΩ

• Colour - Beige and Black

Applications -

• LCD and TFT display modules

• Camera module connections

• Laptop and notebook electronics

• Printer and scanner assemblies

• Embedded systems

• Consumer electronics

• Industrial control equipment

• Medical electronic devices

• PCB design and prototyping

• Electronics repair and replacement
