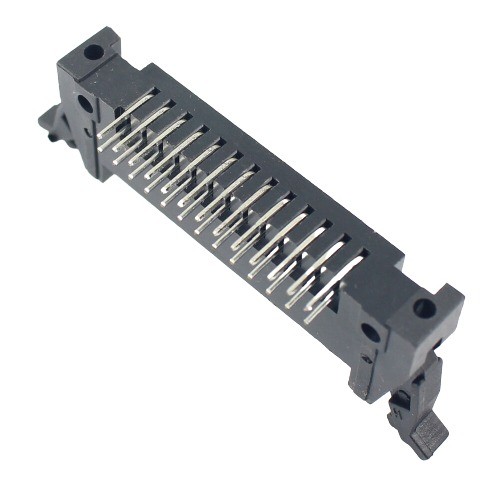

26 Pin FRC IDC Right Angle Male Header with Lock 13x2 2.54mm (IDC Ribbon Cable Connector)

The 26 Pin FRC IDC Right Angle Male Header with Lock is a dual-row PCB connector designed for reliable ribbon cable and IDC connections in embedded systems, industrial electronics, development boards, and PCB interfacing applications. It features a 13x2 pin configuration, standard 2.54mm pitch, right-angle mounting, and locking support for secure cable connection.

Key Features -

• 26 pin right angle male header connector

• 13x2 dual row pin configuration

• Standard 2.54mm pitch

• FRC and IDC ribbon cable compatible

• Locking mechanism for secure connection

• PCB through-hole mounting

• Compact right-angle configuration

• Reliable signal connection

Specifications -

• Product Type: FRC IDC Male Header Connector

• Number of Pins: 26 Pins

• Pin Configuration: 13x2 Dual Row

• Pitch: 2.54mm

• Mounting Type: Right Angle PCB Mount

• Connector Type: IDC FRC Compatible Male Header

• Locking Type: Polarizing and Locking Support

• Contact Material: Metal Alloy

• Housing Material: Insulated Plastic

• Termination Type: Through Hole PCB Mount

• Additional Features: Secure ribbon cable connection, reliable electrical contact, compact right-angle design

Applications -

• Ribbon cable interfacing

• Embedded system connections

• Development boards

• Industrial control electronics

• PCB communication interfaces

• Computer and peripheral interfaces

• Programmable controller connections

• DIY electronic projects
