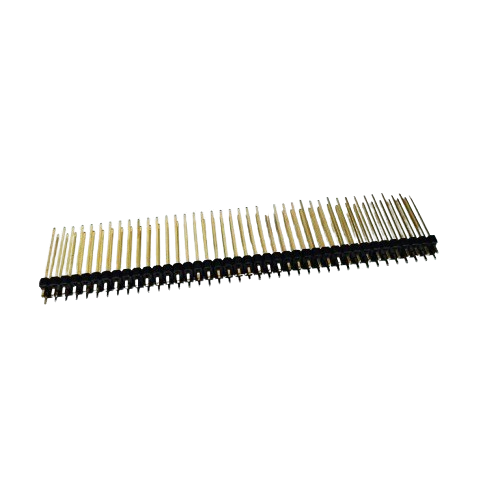

40 x 2 Pin Male Berg Strip Header (2.54 mm Pitch, Straight, Double Row, 25 mm Height, Gold Plated)

The 40 x 2 Pin Male Berg Strip Header is a straight, double-row connector with a standard 2.54 mm pin pitch and gold-plated contacts. It provides a reliable connection interface for printed circuit boards, development boards, and electronic modules. The 25 mm height is suitable for applications requiring extended pin length or additional clearance between connected boards.

Key Features -

• 40 x 2 configuration with 80 pins

• Standard 2.54 mm pitch for compatibility with common PCB layouts

• Straight male header design with two parallel rows

• Gold-plated contacts for improved contact reliability and corrosion resistance

• 25 mm height for extended connection requirements

• Suitable for through-hole PCB mounting, subject to the specific header design

Specifications -

• Product Type: Male Berg Strip Header

• Pin Configuration: 40 x 2 rows

• Total Number of Pins: 80

• Pitch: 2.54 mm

• Mounting Type: Through-Hole PCB Mount, verify against the product drawing

• Header Orientation: Straight

• Row Configuration: Double Row

• Height: 25 mm

• Contact Plating: Gold Plated

• Connector Gender: Male

• Insulator Material and Colour: Verify manufacturer specifications

Applications -

• Microcontroller and development boards

• PCB-to-PCB connections

• Electronic prototyping and circuit development

• Embedded systems and control circuits

• Interface boards and expansion modules

• Test fixtures and electronic instrumentation
