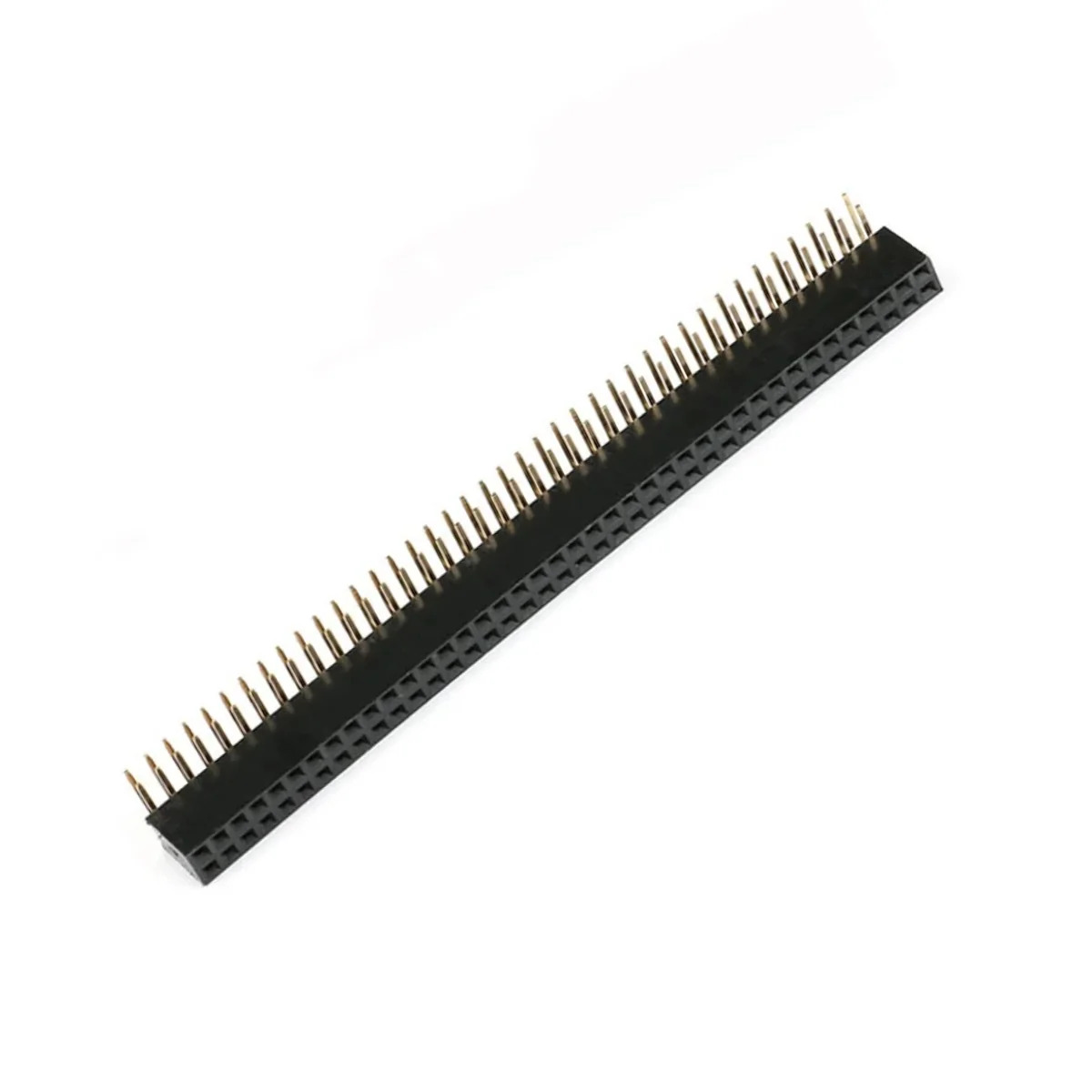

40 X 2 Pin 2.54 mm Pitch Female Flow Solder Right Angle Double Row Header (Gold Plated)

The 40 X 2 Pin 2.54 mm Pitch Female Flow Solder Right Angle Double Row Header is a standard PCB connector designed for reliable socket type connections between circuit boards, male pin headers, development boards, and electronic modules. It features a 2.54 mm standard pitch, double row configuration, right angle female contacts, and flow solder mounting for secure PCB assembly.

The gold plated contacts provide good electrical conductivity, reliable mating performance, and improved resistance to oxidation and corrosion. The right angle design allows connections to be routed horizontally from the PCB, making it useful where board space or connector orientation is important.

Key Features -

• 2.54 mm standard pin pitch

• 40 X 2 pin configuration

• Double row female header

• Right angle contact orientation

• Gold plated contacts

• Flow solder PCB mounting

• Reliable socket type electrical connection

• Suitable for mating with standard 2.54 mm male headers

• Space saving right angle design

• Suitable for electronic circuits and embedded systems

Specifications -

• Product Type = Female Berg Strip Header

• Pin Configuration = 40 X 2 Pin

• Number of Pins = 80 Pins

• Pitch = 2.54 mm

• Number of Rows = 2

• Connector Type = Female Header

• Orientation = Right Angle

• Contact Plating = Gold Plated

• Mounting Type = Flow Solder

• Contact Type = Female Socket

• Application = PCB connection, prototyping and electronic circuits

Applications -

• PCB assembly

• Electronic circuit connections

• Development boards

• Embedded systems

• Microcontroller projects

• PCB-to-PCB connections

• Electronic modules

• Prototyping applications

• Industrial electronics

• DIY electronics projects
