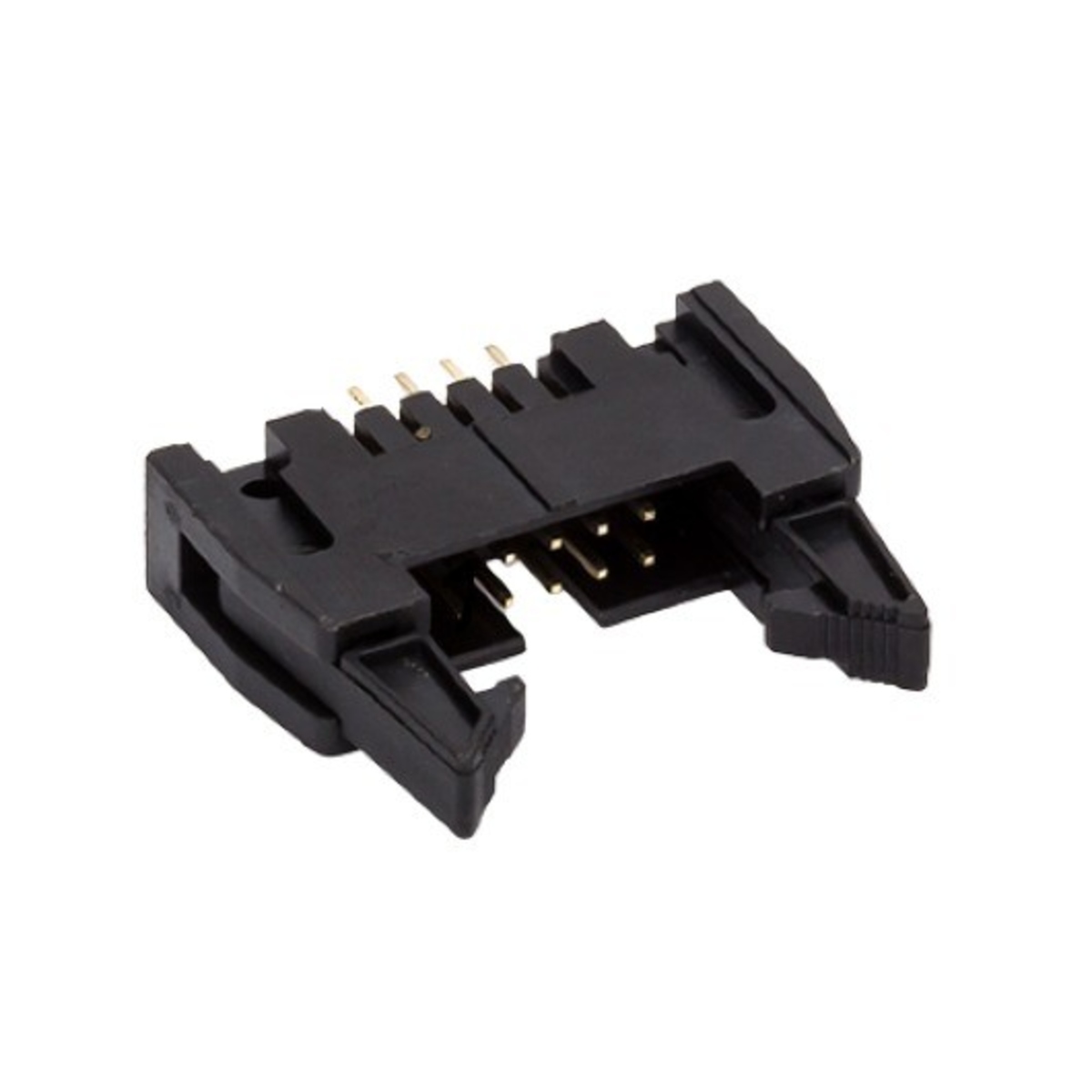

8 Pin FRC IDC Straight Male Header Connector with Lock 4x2 Pin 2.54mm (Ribbon Cable Box Header Connector)

The 8 Pin FRC IDC Straight Male Header Connector with Lock is a 4x2 dual-row PCB header designed for reliable ribbon cable-to-PCB connections in embedded systems, industrial electronics, communication equipment, and electronic control applications. Featuring a 2.54mm pitch and straight through-hole mounting, it provides secure mechanical retention and stable signal transmission. The integrated locking and polarized housing ensures a firm, correctly aligned connection with compatible 8-pin FRC/IDC female ribbon cable connectors.

Its robust construction makes it suitable for both prototyping and production applications.

Key Features -

• 8-pin straight male header connector

• 4x2 dual-row pin configuration

• Standard 2.54mm pitch spacing

• Compatible with FRC and IDC ribbon cable connectors

• Integrated locking mechanism for secure mating

• Polarized housing prevents incorrect insertion

• Through-hole PCB mounting for reliable installation

Specifications -

• Product Type: FRC IDC Male Header Connector

• Number of Pins: 8

• Pin Configuration: 4x2 Dual Row

• Pitch: 2.54mm

• Orientation: Straight

• Mounting Type: Through-Hole PCB Mount

• Connector Type: FRC/IDC Compatible Box Header

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Ribbon Cable to PCB Connection

Applications -

• Ribbon cable interfacing

• Embedded system connections

• Industrial control electronics

• PCB communication interfaces

• Microcontroller development boards

• Computer peripherals

• Electronic prototyping

• DIY electronic projects
