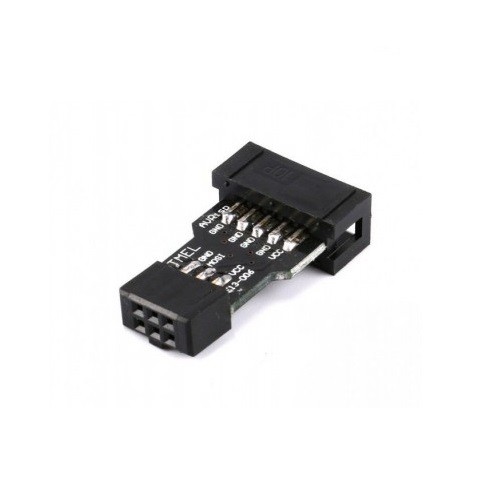

AVR-ISP 10-Pin to 6-Pin Adapter PCB (USBasp AVR Programmer, ISP Interface)

The AVR-ISP 10-Pin to 6-Pin Adapter PCB is designed to connect a 10-pin ISP programming cable to a compatible 6-pin AVR ISP header. It provides a convenient interface for programming supported AVR microcontrollers using a USBasp programmer. The adapter simplifies connections between different ISP connector formats without requiring custom wiring.

Key Features -

• Converts a compatible 10-pin AVR-ISP interface to a 6-pin ISP interface

• Designed for use with USBasp AVR programmers

• Compact printed circuit board design

• Provides an organized connection between programming interfaces

• Suitable for supported AVR microcontroller programming

• Helps simplify development and debugging connections

• No active signal conversion required for a correctly wired passive adapter

Specifications -

• Product Type: AVR ISP Adapter PCB

• Input Interface: 10-Pin ISP

• Output Interface: 6-Pin ISP

• Programmer Compatibility: USBasp, subject to pinout compatibility

• Target Interface: AVR In-System Programming (ISP)

• PCB Type: Passive Adapter Board

• Signal Conversion: Pin mapping between compatible connector formats

• Operating Voltage: Depends on programmer and target board

• Connector Type and Mounting: Verify the specific adapter PCB

• PCB Dimensions: Verify manufacturer specification

Applications -

• AVR microcontroller programming

• USBasp programmer connections

• Embedded system development

• Microcontroller prototyping

• Firmware uploading and debugging workflows

• Electronics education and development projects

• Connecting different AVR ISP cable formats
