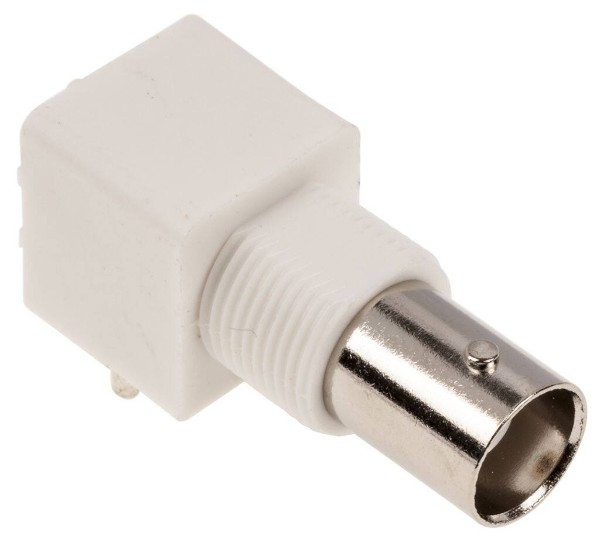

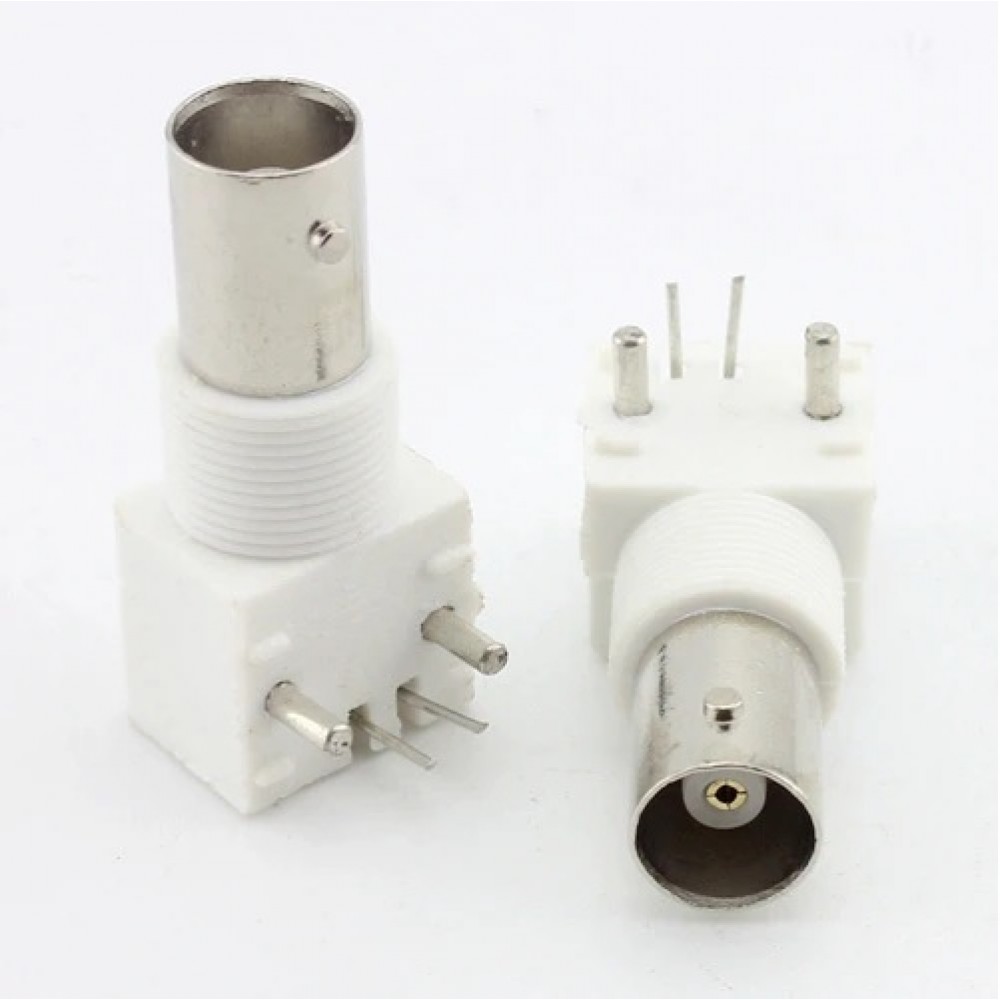

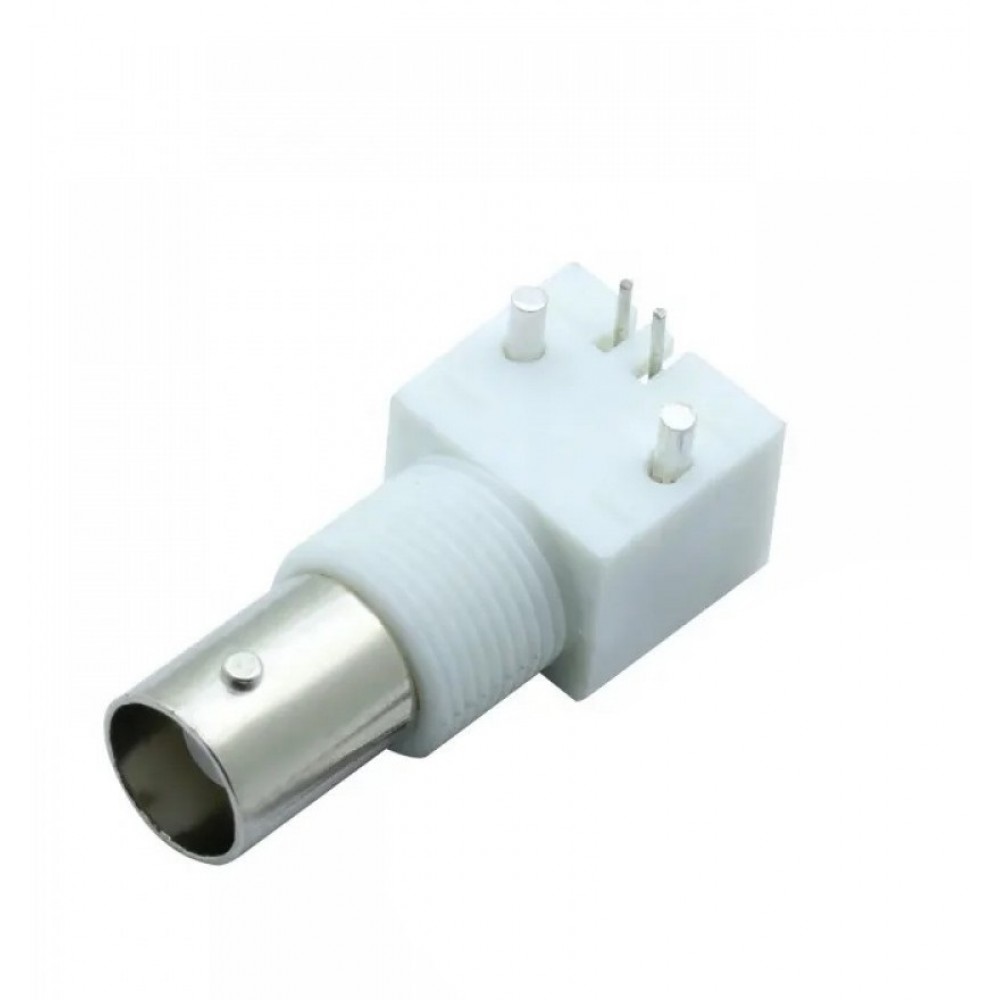

BNC Female Right Angle Type 416 Solder PCB Mount Connector

The BNC Female Right Angle Type 416 Solder PCB Mount Connector is a 90-degree PCB-mount coaxial connector designed for reliable RF, video, and signal transmission in communication equipment, CCTV systems, oscilloscopes, and electronic instruments. Its right-angle design allows compact PCB layouts while maintaining a secure BNC interface for easy cable connection.

The connector features a standard BNC female socket with solder PCB terminals, making it ideal for direct mounting on printed circuit boards in industrial and commercial electronic applications.

Key Features -

• BNC female right-angle PCB mount connector

• Type 416 connector design

• Standard BNC bayonet locking interface

• 90-degree connector orientation for compact layouts

• Solder PCB mounting terminals

• Durable metal construction with excellent shielding

• Reliable RF and video signal transmission

Specifications -

• Product Type: BNC PCB Mount Connector

• Model: Type 416

• Connector Type: BNC Female

• Orientation: Right Angle (90 Degree)

• Mounting Type: PCB Mount

• Termination Type: Solder Pins

• Locking Mechanism: BNC Bayonet Lock

• Contact Material: Copper Alloy

• Housing Material: Nickel-Plated Brass

• Application: RF, Video and Signal Connection

Applications -

• CCTV camera systems

• Oscilloscopes and test equipment

• RF communication systems

• Video transmission equipment

• Industrial control systems

• Broadcast equipment

• Electronic instrumentation

• PCB-based RF circuits
