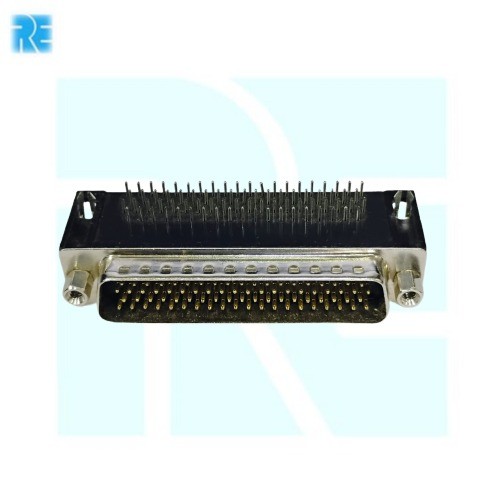

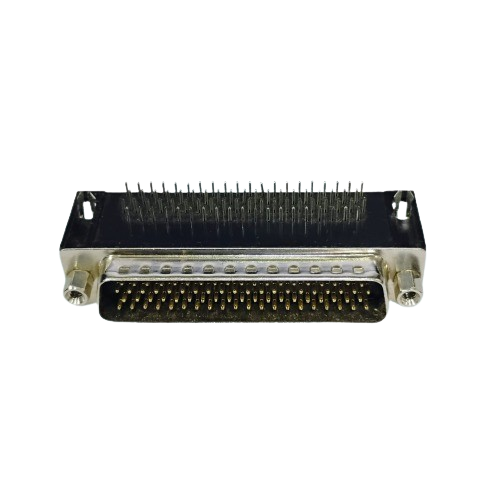

DB78 Male D-Sub Connector (78 Pin, Right Angle, PCB Mount)

The DB78 Male D-Sub Connector is designed for high-density signal and data connections in industrial electronics, communication equipment, embedded systems, and computer interface applications. It features a 78-pin male D-Sub configuration with a right-angle PCB mounting design for compact board-level integration and reliable multi-signal connectivity.

Key Features -

• 78-pin male D-Sub connector

• High-density 78-contact configuration

• Right-angle PCB mounting design

• Through-hole PCB mounting

• Metal shield shell for mechanical protection and shielding

• Suitable for multi-signal and data connections

• Compact board-level connector design

Specifications -

• Product Type: D-Sub Connector

• Connector Type: DB78 Male Connector

• Number of Contacts: 78

• Connector Gender: Male

• Mounting Type: PCB Through-Hole Mount

• Orientation: Right Angle

• Termination Type: Through-Hole Solder

• Contact Material: Metal alloy, exact composition to be verified

• Housing Material: Insulated body with metal shield shell

• Connector Configuration: 78-pin D-Sub

• Voltage and Current Ratings: Refer to manufacturer specifications

Applications -

• Industrial communication systems

• Computer interface equipment

• Embedded electronic systems

• High-density signal connections

• Communication and control equipment

• Instrumentation systems

• PCB-based electronic assemblies
