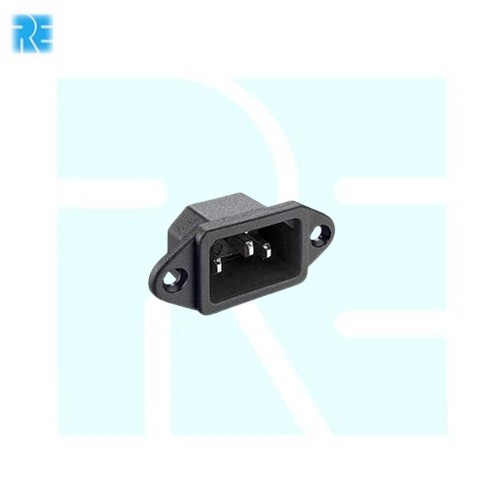

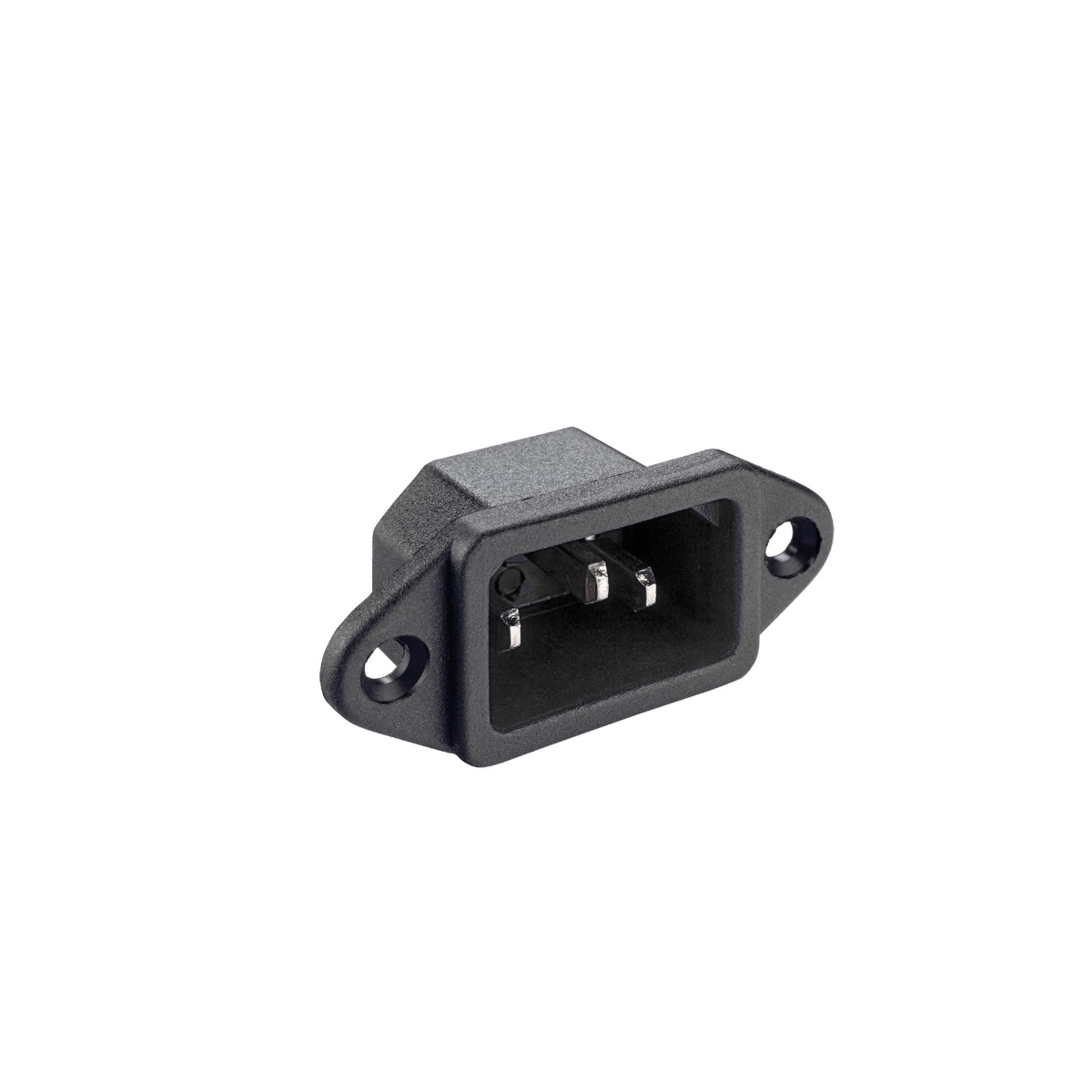

ELCOM EMI-20 Male Power Connector EMI20 15A 250V Panel Mount IEC Power Inlet

The ELCOM EMI-20 Male Power Connector (EMI20) is a panel mount IEC AC power inlet designed to provide a safe and reliable mains power connection for electrical and electronic equipment. Compliant with IEC 60320 standards, it is suitable for power supplies, industrial control panels, laboratory instruments, UPS systems, and electronic enclosures.

Rated for 15A at 250V AC, the EMI-20 features a rugged insulated housing, high-quality metal contacts, and multiple terminal options for easy installation. Its screw-mount panel design ensures secure mounting and dependable long-term performance in demanding applications.

Key Features -

• IEC male AC power inlet connector

• Rated for up to 15A at 250V AC

• Secure panel mount screw-type installation

• Durable insulated housing for reliable operation

• Low contact resistance for efficient power transfer

• Available with solder or Fast-On terminals

• Suitable for industrial and electronic equipment

Specifications -

• Product Type: IEC AC Power Inlet

• Model: EMI-20

• Brand: ELCOM

• Connector Type: Male IEC Power Inlet

• Mounting Type: Panel Mount (Screw Type)

• Rated Current: 15A

• Rated Voltage: 250V AC

• Terminal Type: Solder / Fast-On (Model Variant Dependent)

• Body Material: Glass-Filled Nylon-6

• Contact Material: Brass with Nickel Plating

• Terminal Material: Brass with Tin Plating

• Insulation Resistance: 1000 MOhm Minimum at 500V DC

• Dielectric Strength: 2kV AC (1 Minute)

• Operating Temperature: 0C to 70C

Applications -

• Switch mode power supplies (SMPS)

• Industrial control panels

• Laboratory and test equipment

• UPS and inverter systems

• Medical and instrumentation equipment

• Electronic enclosures

• Automation systems

• DIY electrical and electronic projects
