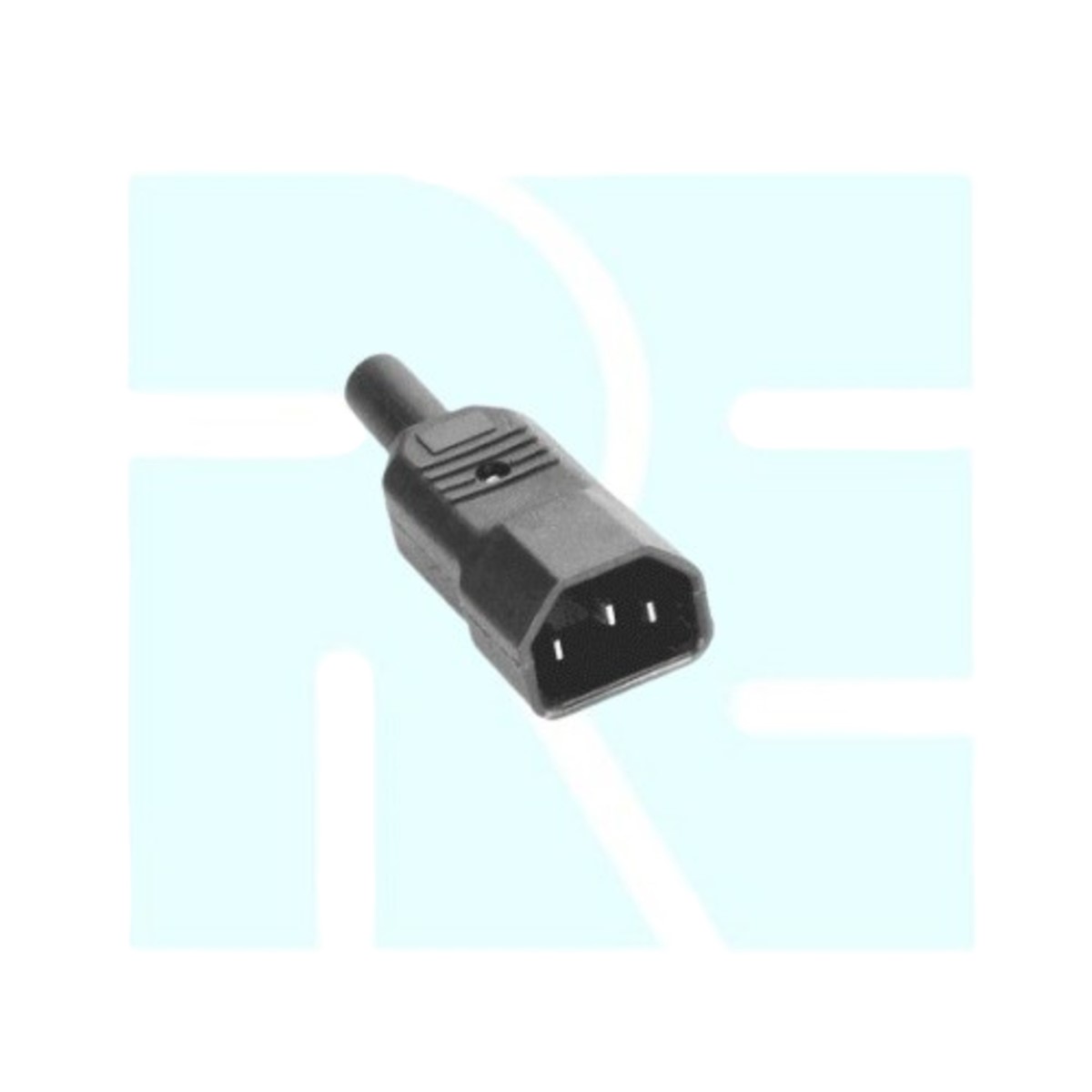

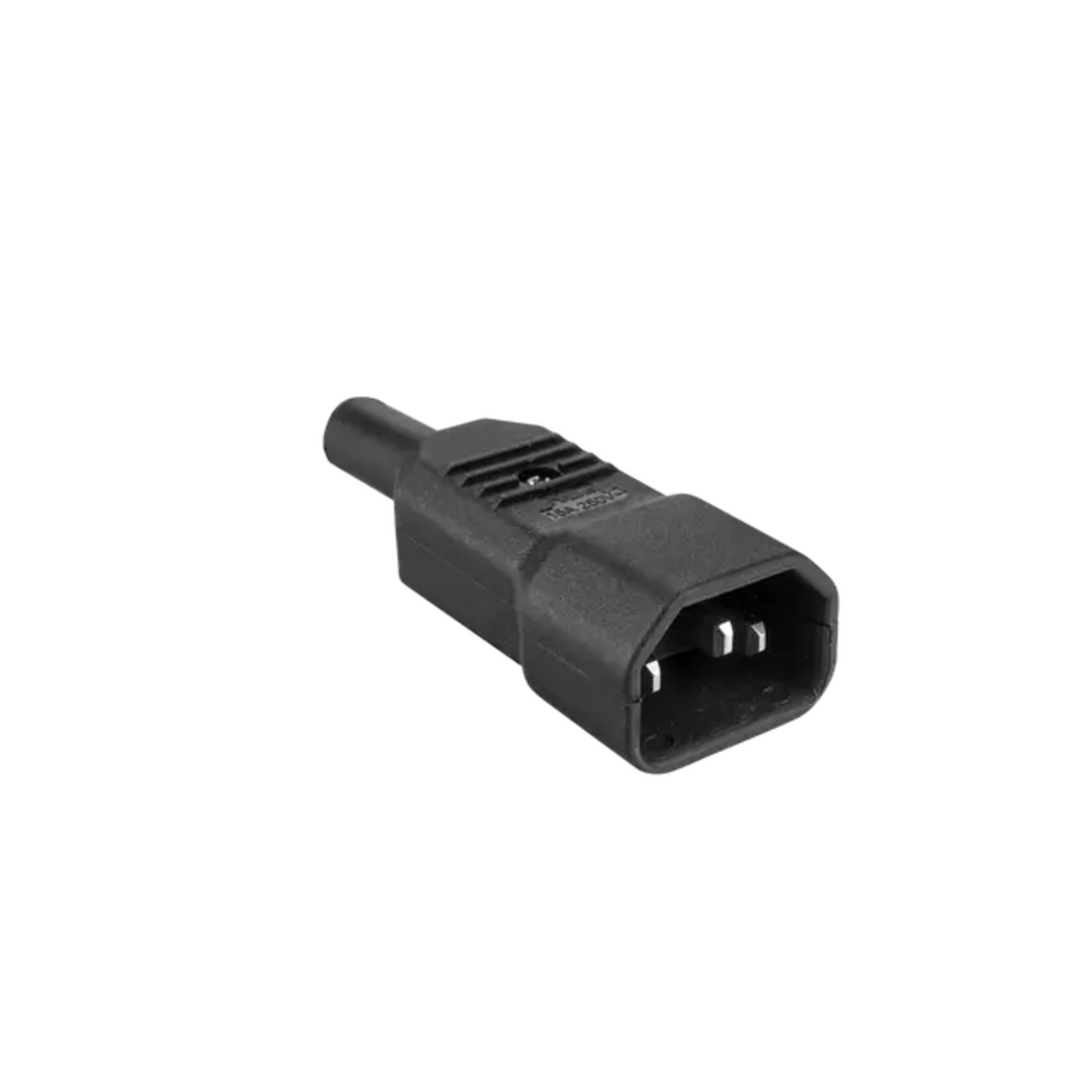

ELCOM EMI-40 / RMC-12 Male Panel Mount Power Connector IEC AC Power Inlet (15A 250V)

The ELCOM EMI-40 / RMC-12 Male Panel Mount Power Connector is a robust IEC AC power inlet designed to provide a safe and reliable mains power connection for industrial, commercial, and electronic equipment. Its panel mount design ensures secure installation, while the durable insulated housing and high-quality contacts provide dependable long-term performance.

Rated for 15A at 250V AC, the EMI-40 / RMC-12 is suitable for power supplies, laboratory instruments, industrial control panels, automation systems, UPS units, and other equipment requiring a standard IEC AC power input. It complies with international IEC safety standards for reliable operation.

Key Features -

• Male IEC AC power inlet connector

• Panel mount design for secure installation

• Rated up to 15A at 250V AC

• Durable insulated housing for long service life

• Low contact resistance for reliable power transfer

• Screw terminal connection for secure wiring

• Complies with IEC safety standards

Specifications -

• Product Type: Male IEC Power Connector

• Model: EMI-40 / RMC-12

• Brand: ELCOM

• Connector Type: IEC AC Power Inlet

• Mounting Type: Panel Mount

• Rated Current: 15A

• Rated Voltage: 250V AC

• Terminal Type: Screw-Type Terminals

• Cable Size: 0.75 sq mm to 1.0 sq mm

• Body Material: Glass-Filled Nylon

• Contact Material: Brass with Nickel Plating

• Insulation Resistance: 100 MOhm Minimum at 500V DC

• Dielectric Strength: 2kV AC for 1 Minute

Applications -

• Switch mode power supplies (SMPS)

• Industrial control panels

• UPS and inverter systems

• Laboratory and test equipment

• Medical equipment

• Automation systems

• Electronic enclosures

• DIY electrical and electronic projects
