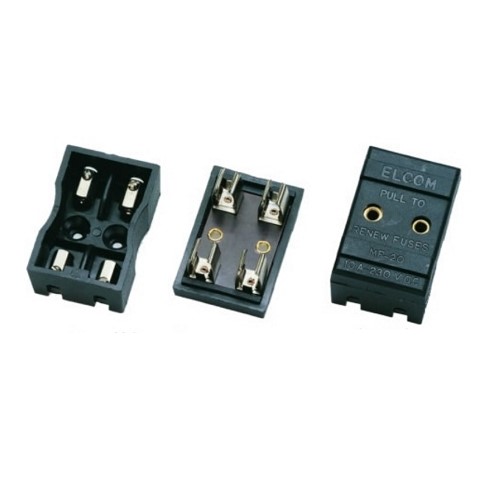

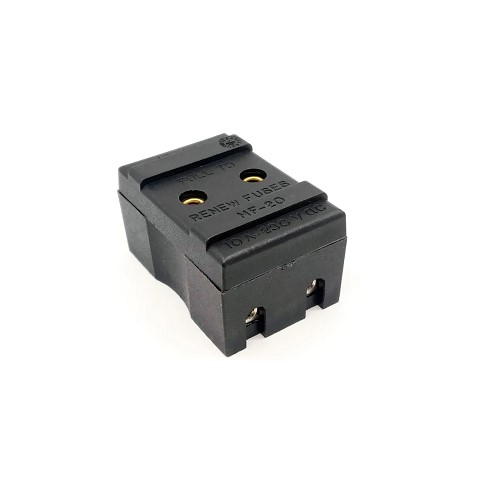

ELCOM MF-20 Dual Fuse Holder Chassis Mount for 6.3×32mm Fuses (10A 250V AC)

The ELCOM MF-20 Dual Fuse Holder is a chassis mount fuse holder designed to accommodate two 6.3×32mm cartridge fuses for reliable overcurrent protection in electrical and electronic equipment. Its dual-fuse configuration makes it suitable for protecting both line and neutral circuits or two independent circuits within the same enclosure.

Rated for 10A at 250V AC, the MF-20 features a durable glass-filled polyamide body, press-on fuse caps, and nickel-plated brass contacts for dependable electrical performance and long service life. The screw-in terminals provide secure wiring, making it ideal for industrial control panels, power supplies, instrumentation, and electrical distribution systems.

Key Features -

• Dual fuse holder for two 6.3×32mm cartridge fuses

• Chassis mount design for secure installation

• Rated for 10A at 250V AC

• Press-on fuse caps for quick fuse replacement

• Screw-in terminals for secure wiring

• Durable glass-filled polyamide construction

• Nickel-plated brass contacts for reliable conductivity

Specifications -

• Product Type: Dual Fuse Holder

• Model: MF-20

• Brand: ELCOM

• Fuse Size: 6.3 × 32mm

• Number of Fuses: 2

• Mounting Type: Chassis Mount

• Rated Current: 10A

• Rated Voltage: 250V AC

• Terminal Type: Screw-In

• Cap Type: Press-On

• Body Material: Glass-Filled Polyamide (PA-GF)

• Contact Material: Brass with Nickel Plating

• Contact Resistance: 10 mOhm Maximum (Initial)

• Insulation Resistance: 100 MOhm Minimum

• Dielectric Strength: 2kV AC for 1 Minute

• Operating Temperature: -20C to +85C

• Maximum Soldering Temperature: 270C for 5 Seconds

• Approximate Weight: 44.6g

Applications -

• Industrial control panels

• Power supplies and SMPS

• Electrical distribution equipment

• Test and measurement instruments

• Automation systems

• UPS and inverter systems

• Electronic equipment

• Circuit protection applications
