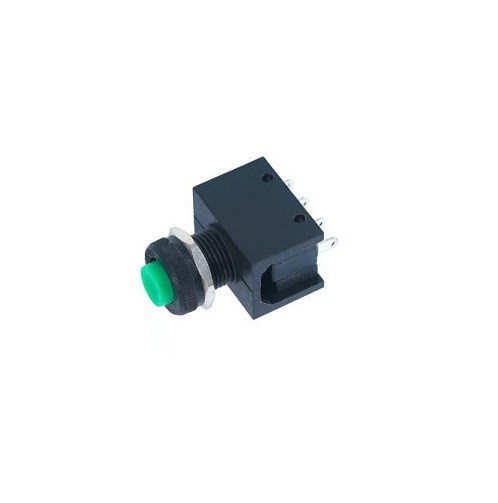

ELCOM MPU-1-07 Green Momentary Micro Power Switch (SPDT, 4A, 250V AC)
The ELCOM MPU-1-07 Micro Power Switch is a compact momentary push button switch designed for electronic control panels, industrial equipment and electrical switching applications. Featuring a green unshrouded actuator, SPDT contact configuration and 4A current rating at 250V AC, this switch provides reliable manual circuit control. Its silver plated brass terminals, solder type connections and mechanical life of 50,000 cycles make it suitable for instrumentation, automation systems and electronic equipment requiring momentary switching.
Key Features
• ELCOM MPU-1-07 micro power switch
• Green unshrouded actuator cap
• Momentary push button operation
• SPDT contact configuration
• Normally Open and Normally Closed contacts
• Rated current of 4A
• Rated voltage of 250V AC
• Silver plated brass terminals
• Solder type electrical connections
• Maximum contact resistance of 20m Ohm
• Minimum insulation resistance of 100M Ohm
• Mechanical life of 50,000 cycles
• Electrical life of 10,000 cycles minimum
• Dielectric withstand voltage of 1 kV AC for 1 minute
