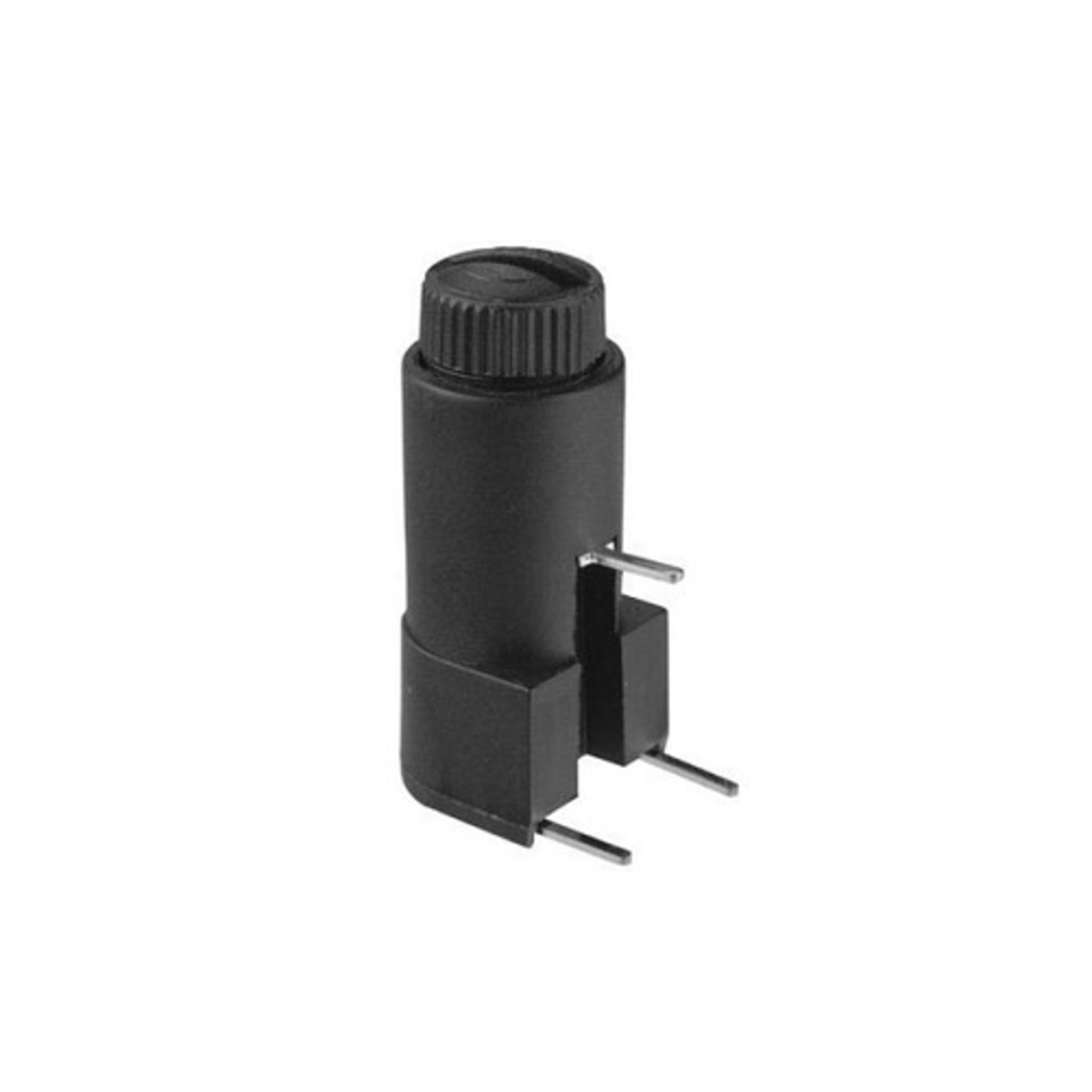

ELCOM PBF-3 PCB Mount Fuse Holder Horizontal 3-Lead Black for 5×20mm Fuse (6.3A 250V AC)

The ELCOM PBF-3 PCB Mount Fuse Holder is a compact horizontal fuse holder designed to accommodate 5×20mm glass or ceramic cartridge fuses for reliable overcurrent protection in electronic circuits. Its 3-lead PCB mounting design provides secure installation and stable electrical connections, making it ideal for power supplies, control boards, instrumentation, and industrial electronics.

Rated for 6.3A at 250V AC, the PBF-3 features a durable glass-filled polyamide body, brass contacts with silver/tin plating, and a screw-in cap with a convenient coin slot for quick fuse replacement.

Key Features -

• PCB mount fuse holder for 5×20mm cartridge fuses

• Horizontal 3-lead design for secure PCB installation

• Screw-in cap with coin slot for easy fuse replacement

• Rated for 6.3A at 250V AC

• Durable glass-filled polyamide construction

• Low contact resistance for reliable electrical performance

• Suitable for glass and ceramic cartridge fuses

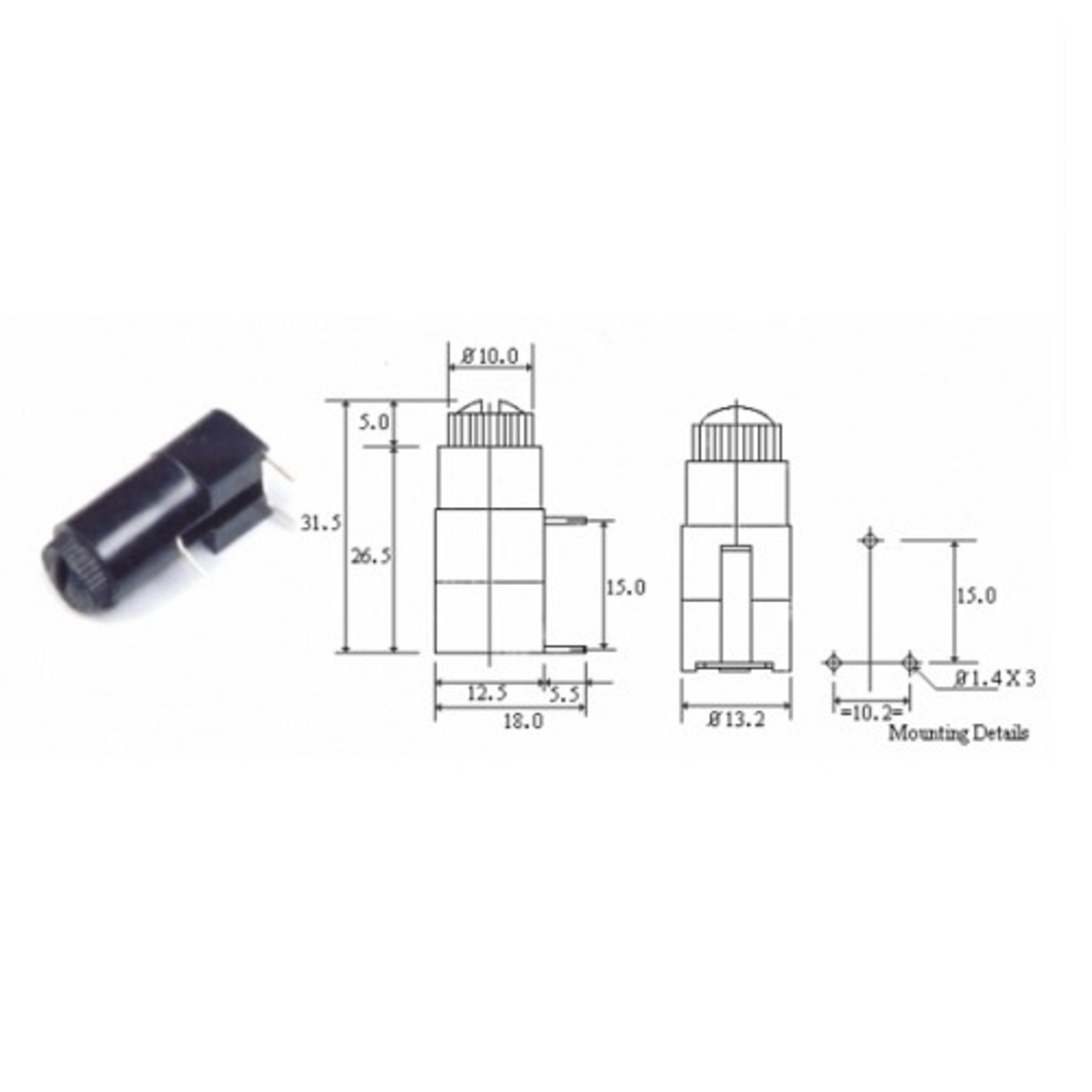

Specifications -

• Product Type: PCB Mount Fuse Holder

• Model: PBF-3

• Brand: ELCOM

• Fuse Size: 5 × 20mm

• Mounting Type: Horizontal PCB Mount (3 Leads)

• Rated Current: 6.3A

• Rated Voltage: 250V AC

• Terminal Type: Solder Type

• Cap Design: Screw-In with Coin Slot

• Body Material: Glass-Filled Polyamide (PA-GF)

• Contact Material: Brass with Silver/Tin Plating

• Contact Resistance: 10 mOhm Maximum (Initial)

• Insulation Resistance: 1000 MOhm Minimum

• Dielectric Strength: 2kV AC for 1 Minute

• Operating Temperature: -20C to +85C

• Maximum Soldering Temperature: 270C for 5 Seconds Maximum

• Approximate Weight: 4.7g

Applications -

• Printed circuit boards (PCB)

• Switch mode power supplies (SMPS)

• Industrial control systems

• Test and measurement equipment

• Consumer electronic devices

• Instrumentation circuits

• Automation equipment

• DIY electronic projects
