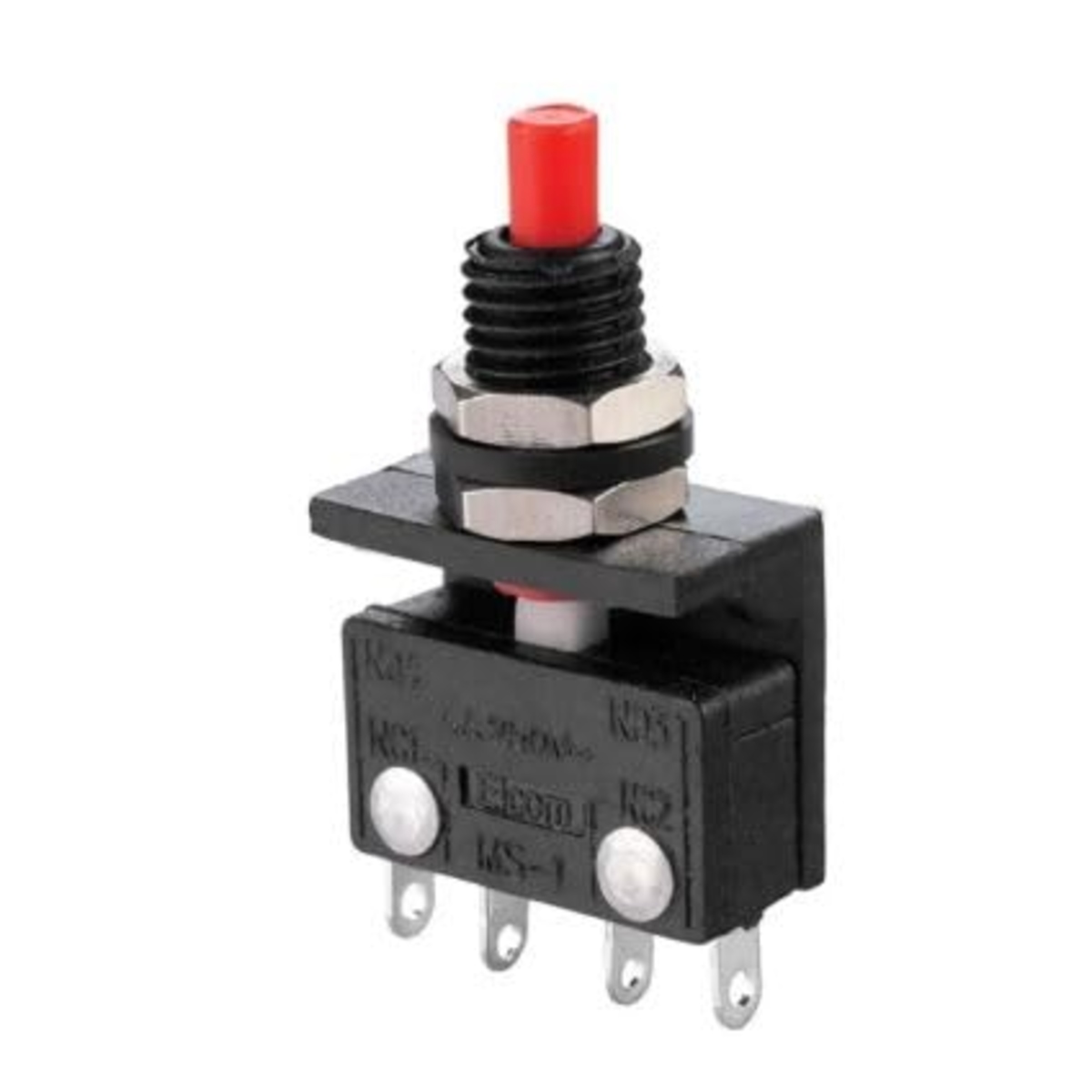

ELCOM PMS-1-04 Red Panel Mount Micro Switch (SPDT Momentary Push Button Switch)

The ELCOM PMS-1-04 Red Micro Switch is a compact panel mount momentary push button switch designed for reliable switching in electronic equipment, industrial control panels, instrumentation, and automation systems. It features a Single Pole Double Throw (SPDT) contact configuration with normally open (NO) and normally closed (NC) contacts, making it suitable for a wide range of control and signal switching applications.

Designed for long service life and dependable operation, the PMS-1-04 incorporates a durable insulated body, silver-plated contacts, and a red push button actuator. Its panel mount construction allows quick installation in control panels, test equipment, and electronic devices.

Key Features -

• Panel mount momentary micro switch

• SPDT contact configuration (COM, NO, NC)

• Red push button actuator for easy identification

• Reliable spring-return momentary operation

• Durable insulated housing construction

• Silver-plated contacts for low contact resistance

• Suitable for industrial and electronic applications

Specifications -

• Product Type: Panel Mount Micro Switch

• Model: PMS-1-04

• Brand: ELCOM

• Switch Type: Momentary Push Button Micro Switch

• Contact Configuration: SPDT (1NO + 1NC)

• Mounting Type: Panel Mount

• Actuator Colour: Red

• Current Rating: 4A

• Voltage Rating: 250V AC

• Terminal Type: Solder Terminals

• Contact Material: Copper with Silver Plating

• Body Material: PBT Glass-Filled / Engineering Plastic

• Electrical Life: Minimum 10,000 Operations

• Mechanical Life: Minimum 50,000 Operations

• Operating Temperature: -25C to +85C

Applications -

• Industrial control panels

• Test and measuring instruments

• Electronic equipment

• Automation systems

• Power supply controls

• Control and signal circuits

• DIY electronic projects

• Instrumentation equipment
