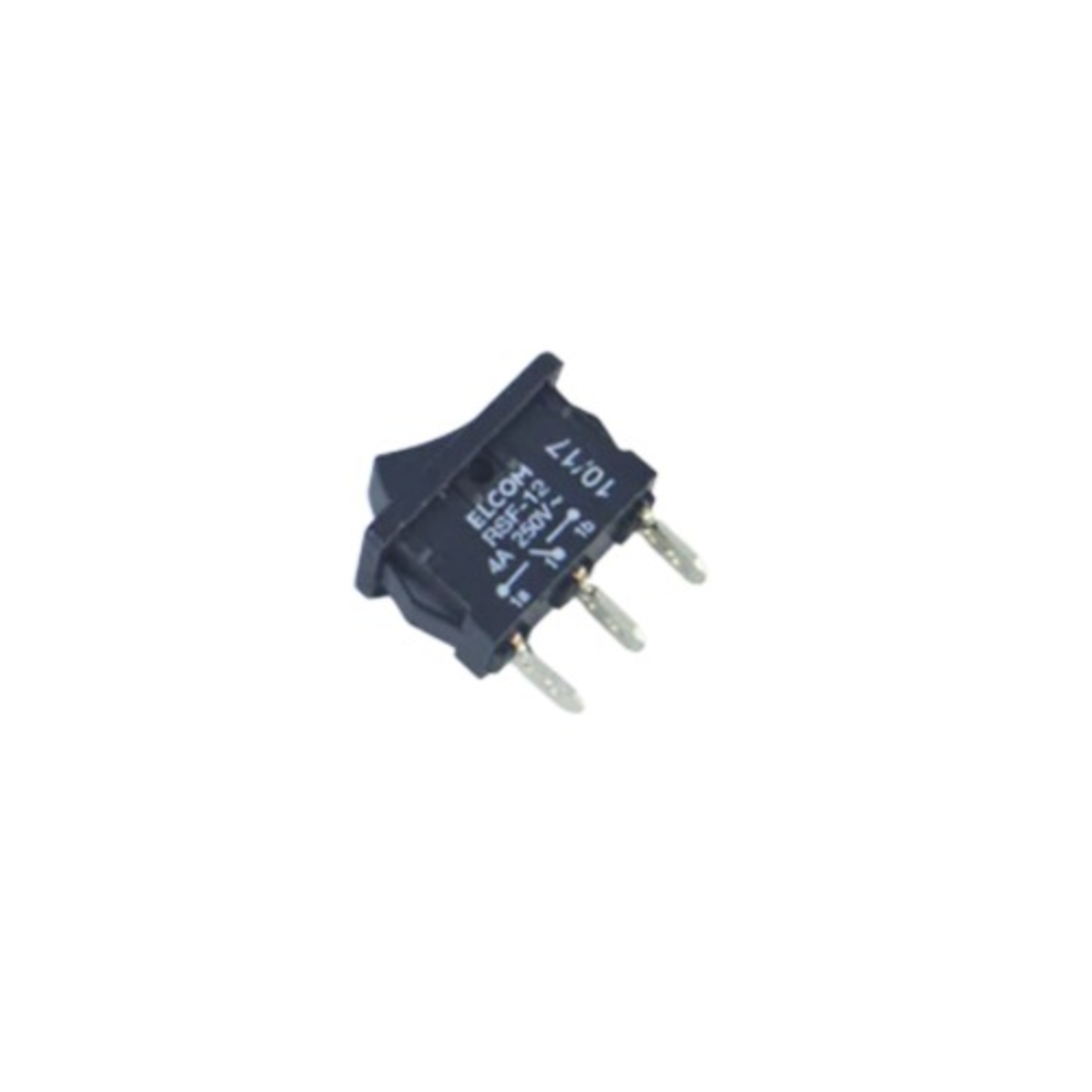

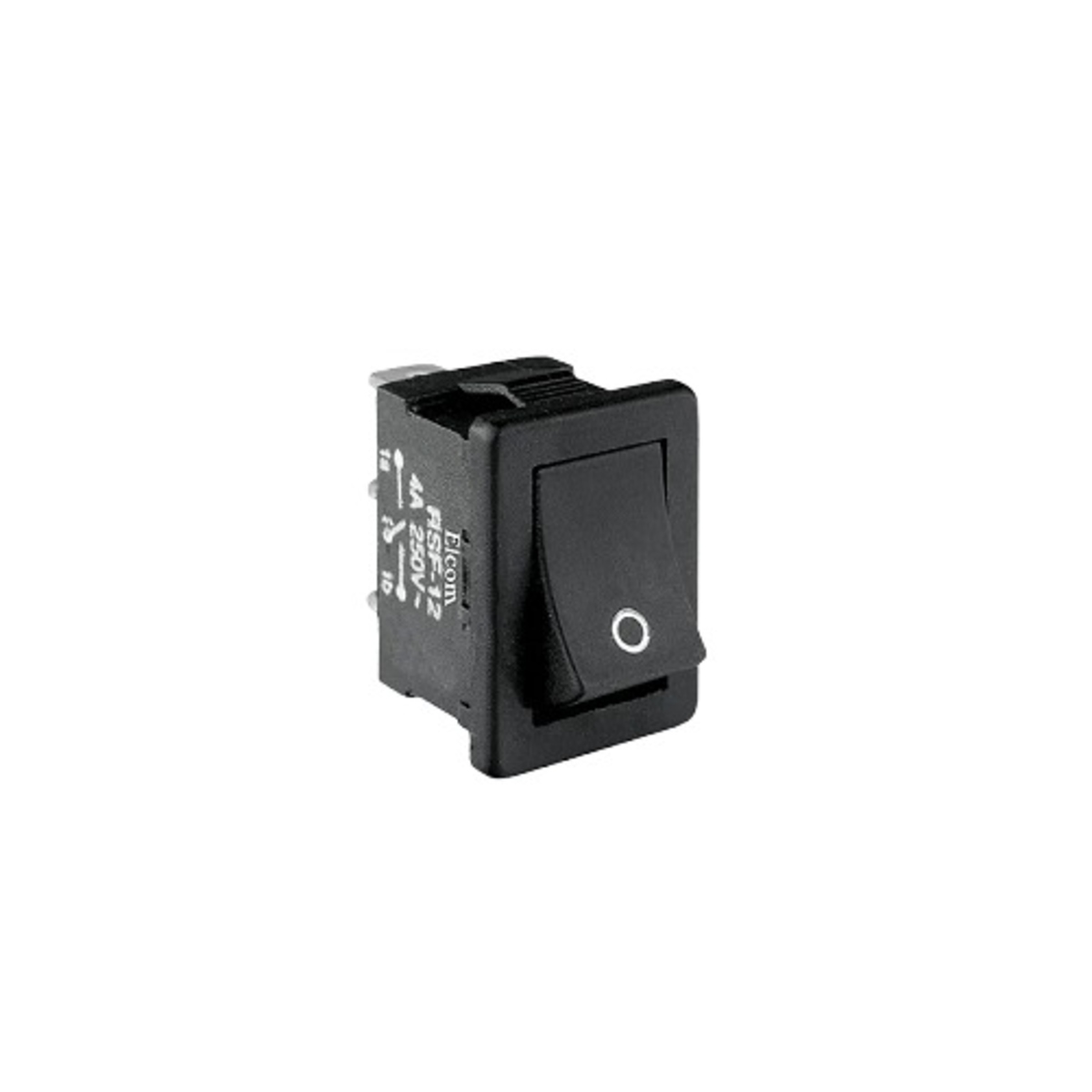

ELCOM RSF-12 4A SPDT Rocker Switch Panel Mount 250V AC (RSF-12 Rocker Switch)

The ELCOM RSF-12 Rocker Switch is a high-quality SPDT panel-mount switch designed for reliable power control in electrical appliances, industrial equipment, control panels, instrumentation systems, and electronic projects. Featuring a snap-in mounting design, silver-plated contacts, and durable nylon housing, it provides long service life and dependable switching performance.

Key Features -

• SPDT rocker switch configuration

• Non-illuminated switch design

• Rated for 4A at 250V AC

• Snap-in panel mounting

• Silver-plated copper alloy contacts

• Compatible with solder and fast-on terminals

• Durable nylon housing construction

• Long electrical life of 10,000 cycles

Specifications -

• Product type - Rocker Switch

• Model - RSF-12

• Switch type - SPDT

• Illumination - Non-Illuminated

• Current rating - 4A

• Voltage rating - 250V AC

• Mounting type - Panel Mount Snap-In

• Terminal type - Solder Type / Fast-On 4.8mm x 0.8mm

• Contact resistance - 10mOhm Maximum Initial

• Insulation resistance - 100 MOhm Minimum at 500V DC

• Dielectric strength - 1.5kV AC for 1 Minute

• Housing material - Nylon

• Terminal material - Copper Alloy Silver Plated

• Operating temperature - 0C to 85C

• Soldering temperature - 270C for 5 Seconds Maximum

• Electrical life - 10,000 Cycles

• Standard compliance - IEC 61058

• Available colors - Red, Green, Black

Applications -

• Power control panels

• Electrical appliances

• Industrial automation equipment

• Test and measurement instruments

• Consumer electronics

• Control boxes

• Power distribution systems

• DIY electronic projects
