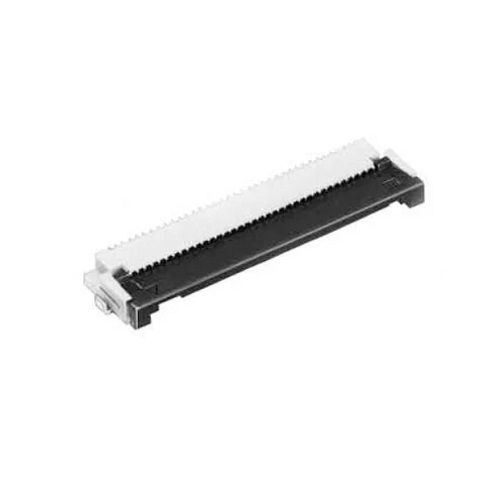

The FH12-10S-0.5SH(50) is a compact 10-pin FFC/FPC board connector designed for reliable connection of flexible flat cables (FFC) and flexible printed circuits (FPC) in space-constrained electronic applications. Featuring a 0.5mm pitch, horizontal (right-angle) orientation, and surface-mount (SMT) design, it is ideal for displays, cameras, embedded systems, consumer electronics, industrial equipment, and portable devices.

Key Features -

• 10-pin FFC/FPC board connector

• Fine 0.5mm pitch for compact PCB layouts

• Horizontal (right-angle) mounting design

• Surface-mount (SMT) termination

• Bottom-contact configuration

• Secure ZIF (Zero Insertion Force) locking mechanism

• Compact, low-profile construction

• Suitable for automated PCB assembly

Specifications -

• Product Type - FFC/FPC Board Connector

• Part Number - FH12-10S-0.5SH(50)

• Series - FH12

• Number of Positions - 10

• Pitch - 0.5mm

• Connector Type - FFC/FPC Receptacle

• Contact Location - Bottom Contact

• Mounting Angle - Horizontal (Right Angle)

• Mounting Type - Surface Mount (SMD/SMT)

• Current Rating - 500mA per Contact

• Compatible Cable Type - 0.5mm Pitch FFC/FPC Cable

• Locking Mechanism - ZIF (Zero Insertion Force) Flip Lock

Applications -

• LCD and OLED display modules

• Camera module interfaces

• Raspberry Pi and embedded systems

• Consumer electronics

• Portable electronic devices

• Industrial control equipment

• Medical electronics

• Test and measurement instruments

• Robotics and automation systems

• Custom PCB designs
