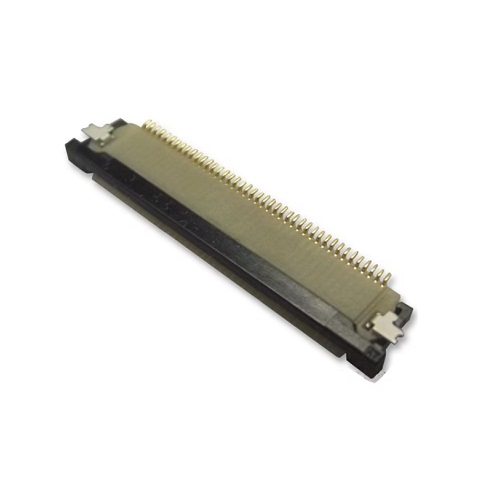

The FH12-40S-0.5SH(55) is a high-density FFC/FPC board connector designed for reliable connection of flexible flat cables (FFC) and flexible printed circuits (FPC) in compact electronic devices. Featuring a 40-contact, 0.5mm pitch configuration and a right-angle surface-mount design, it is ideal for displays, cameras, embedded systems, industrial electronics, medical devices, and consumer electronics requiring space-saving interconnect solutions.

Key Features -

• 40-pin FFC/FPC board connector

• Fine 0.5mm contact pitch

• Right-angle receptacle design

• Surface-mount (SMT) construction

• Secure locking mechanism for reliable cable retention

• Compact, low-profile design for high-density PCBs

• High durability and reliable electrical performance

• Suitable for automated PCB assembly processes

Specifications -

• Product Type - FFC/FPC Board Connector

• Part Number - FH12-40S-0.5SH(55)

• Series - FH12

• Connector Type - FFC/FPC Receptacle

• Number of Contacts - 40

• Pitch Spacing - 0.5mm

• Mounting Type - Surface Mount (SMT)

• Orientation - Right Angle

• Contact Gender - Receptacle

• Compatible Cable Type - FFC/FPC Cable

• Locking Style - Flip-Lock / ZIF (Zero Insertion Force)

• PCB Mounting - Surface Mount Technology

Applications -

• LCD and OLED display connections

• Raspberry Pi and embedded systems

• Camera modules

• Laptops and tablet computers

• Industrial control equipment

• Medical electronics

• Consumer electronic devices

• Portable instrumentation

• Robotics and automation systems

• Custom PCB designs requiring FFC/FPC connectivity
