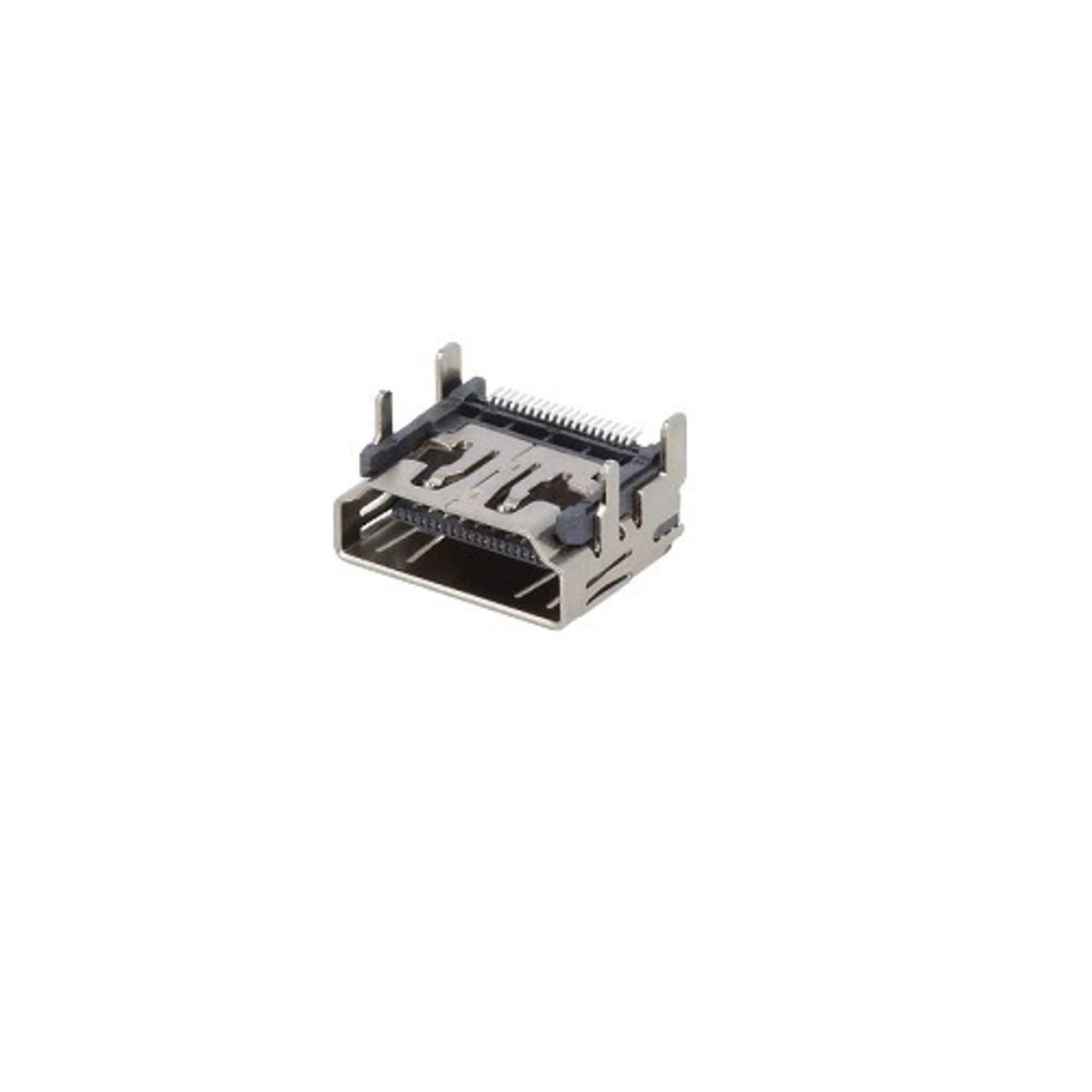

HDMI SMT Female 90 Degree Angle 19 Pin Socket (Right-Angle PCB Mount Connector)

The HDMI SMT Female 19 Pin Socket is a surface-mount connector designed for digital audio and video interfaces in electronic devices. Its 90-degree right-angle configuration allows a compatible HDMI male plug to connect parallel to the PCB surface, helping optimize space in compact electronic assemblies. The connector is suitable for PCB designs requiring an HDMI input or output interface, depending on the circuit application.

Key Features -

• 19-pin HDMI female socket

• 90-degree right-angle connector design

• Surface-mount technology (SMT) construction

• Designed for compatible HDMI male plugs

• Supports digital audio and video signal connections

• Suitable for compact PCB layouts

• Ideal for electronic equipment and interface boards

Specifications -

• Product Type: HDMI Female Socket

• Connector Interface: HDMI

• Connector Gender: Female

• Number of Pins: 19

• Mounting Type: Surface Mount (SMT)

• Orientation: 90 Degree Right Angle

• Connection Type: PCB Mount

• Contact Material and Plating: Verify manufacturer specification

• Housing Material: Verify manufacturer specification

• Supported HDMI Version: Depends on connector and complete system design

• PCB Footprint and Dimensions: Verify manufacturer drawing

Applications -

• HDMI interface circuit boards

• Embedded computing systems

• Display and multimedia equipment

• Digital video devices

• Compact electronic products

• PCB design and prototyping

• Electronic equipment repair and replacement
