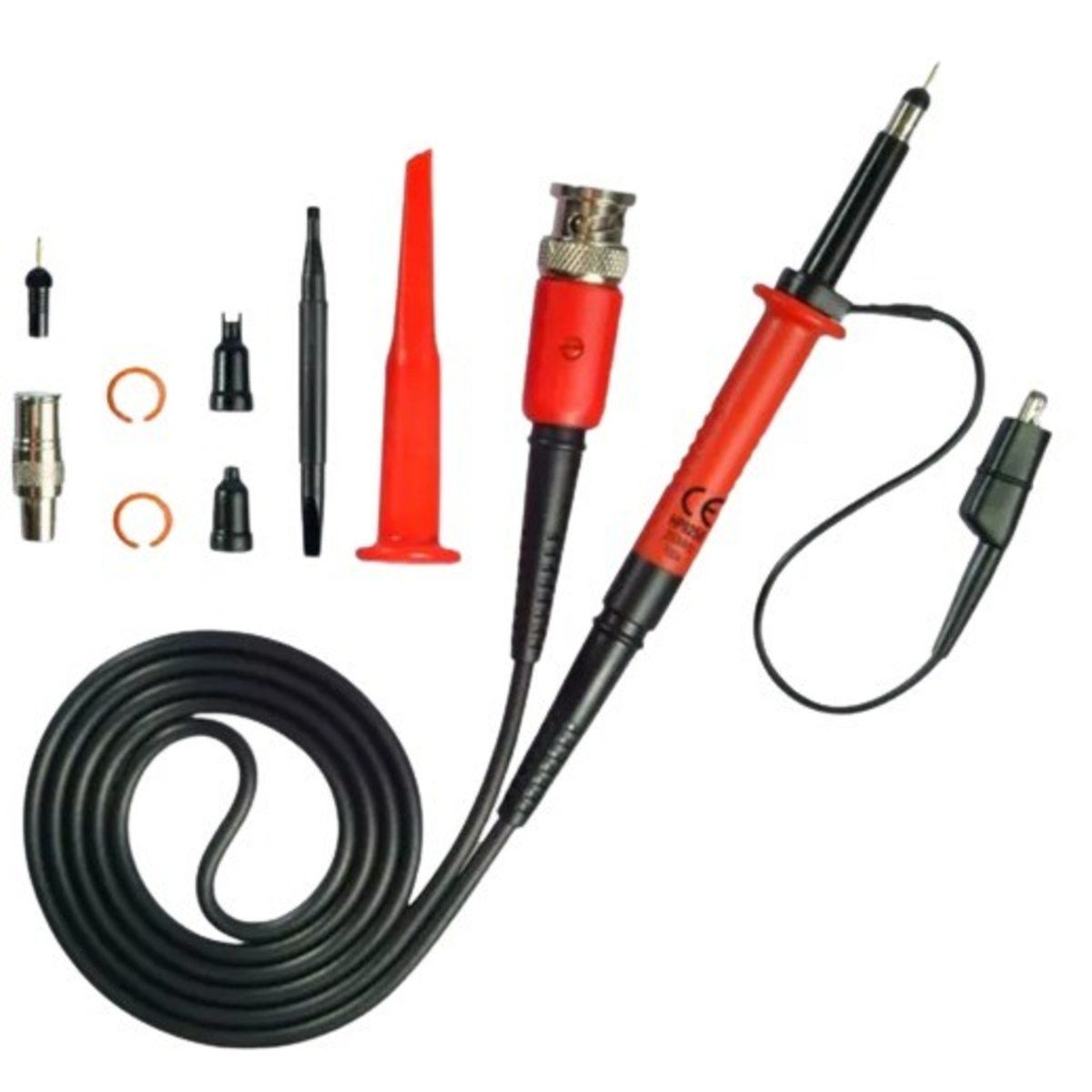

HV Oscilloscope Probe HP-9258 100:1 250MHz 100M Ohm 5.5pF 1500Vrms (High Voltage Probe)

The HP-9258 High Voltage Oscilloscope Probe is a professional 100:1 attenuation probe designed for measuring high-voltage signals with oscilloscopes. Featuring a bandwidth of up to 250MHz, 100M Ohm input resistance, low input capacitance, and 1500Vrms voltage rating, it is ideal for power electronics, industrial equipment, laboratory testing, and high-voltage circuit analysis.

Key Features -

• 100:1 attenuation ratio

• High voltage measurement capability

• 250MHz bandwidth

• 100M Ohm input resistance

• Low 5.5pF input capacitance

• Maximum voltage rating of 1500Vrms

• Adjustable compensation for accurate measurements

• Compatible with most standard oscilloscopes

Specifications -

• Product type - High voltage oscilloscope probe

• Model - HP-9258

• Attenuation ratio - 100:1

• Bandwidth - 250MHz

• Input resistance - 100M Ohm

• Input capacitance - 5.5pF

• Maximum voltage rating - 1500Vrms

• Probe type - Passive High Voltage Probe

• Connector type - Standard Oscilloscope Interface

• Compensation adjustment - Yes

• Application type - High voltage signal measurement

• Additional features - High accuracy and low loading effect on measured circuits

Applications -

• Oscilloscope measurements

• High voltage circuit testing

• Power electronics analysis

• SMPS troubleshooting

• Industrial equipment maintenance

• Research and development laboratories

• Educational and engineering applications
