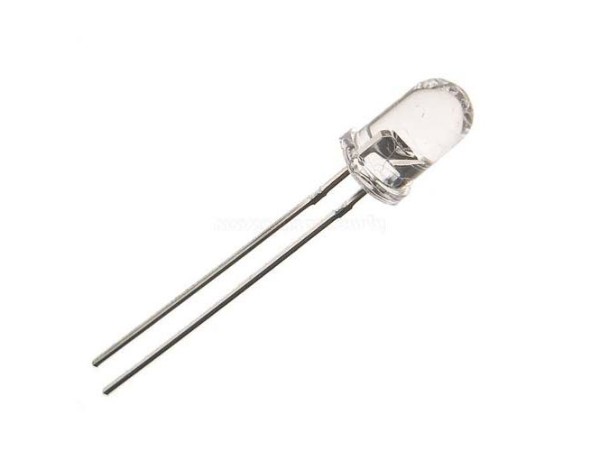

Infrared LED 5mm 940nm Everlight IR333-3C Clear IR Transmitter Diode 20mA Radial (IR333-3C LED)
The Everlight IR333-3C is a 5mm infrared emitting diode designed for reliable IR transmission at approx 940nm wavelength. It features a clear lens radial package and is optimized for use with phototransistors and IR receiver modules in detection and communication systems.
Key Features -
- Infrared emission peak wavelength approx 940nm
- Standard 5mm radial through hole package
- Forward current approx 20mA typical operation
- Clear lens for efficient IR transmission
- High radiant intensity output
- Low forward voltage and power consumption
Specifications -
- Peak wavelength - approx 940nm
- Forward current - approx 20mA typical up to 100mA max
- Forward voltage - approx 1.2V to 1.5V
- Radiant intensity - approx 7.8mW per sr at 20mA
- Viewing angle - approx 20 to 30 degree
- Package type - 5mm radial through hole
- Operating temperature - approx -40 to 85 degree C
Applications -
- IR remote control transmitters
- Proximity and obstacle detection sensors
- Optical switching circuits
- IR communication systems
- Automation and control systems
Pinout Configuration -
- Anode - positive terminal longer lead
- Cathode - negative terminal shorter lead flat side
Working Principle -
The IR333-3C emits infrared light when forward biased current flows through the semiconductor junction. The emitted wavelength around 940nm is invisible to the human eye but is detected by IR receivers and photodiodes. The output intensity depends on forward current and is used in sensing and signal transmission systems.
