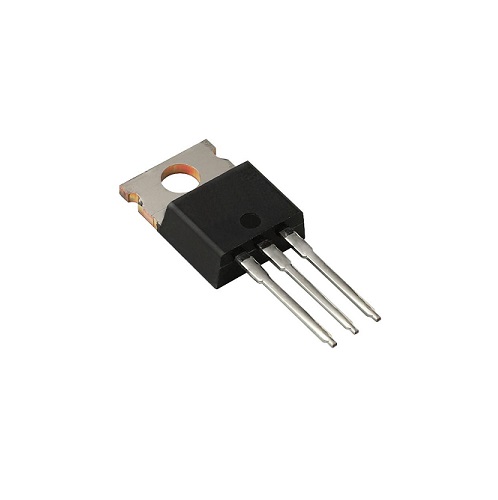

ISL9V3040P3 IGBT 400V 21A TO-220AB Power Transistor (High Speed Switching IGBT for Power Control Applications)

ISL9V3040P3 IGBT 400V 21A TO-220AB Power Transistor (High Speed Switching IGBT for Power Control Applications)

The ISL9V3040P3 IGBT is designed for high efficiency power switching applications requiring high voltage and current handling capability. It combines the advantages of MOSFET input characteristics with bipolar transistor output performance, making it suitable for industrial and power electronic applications.

Key Features -

• High voltage IGBT power transistor

• Continuous collector current up to 21A

• Low collector emitter saturation voltage

• TO-220AB package for efficient heat dissipation

• High speed switching capability

• Suitable for power control applications

Specifications -

• Product type - Insulated Gate Bipolar Transistor (IGBT)

• Model - ISL9V3040P3

• Package type - TO-220AB

• Mounting type - Through Hole 3 Pin Package

• Voltage rating - Collector Emitter Voltage 400V

• Current rating - Continuous Collector Current 21A

• Frequency - Suitable for high speed switching applications

• Material - Silicon Semiconductor

• Additional features - Power dissipation 150W, collector emitter saturation voltage 1.25V, efficient thermal performance, low switching losses

Applications -

• Inverter circuits

• Motor control systems

• SMPS power supplies

• UPS systems

• Industrial power electronics
