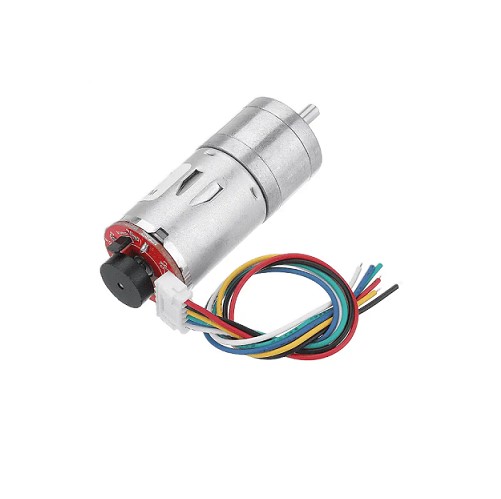

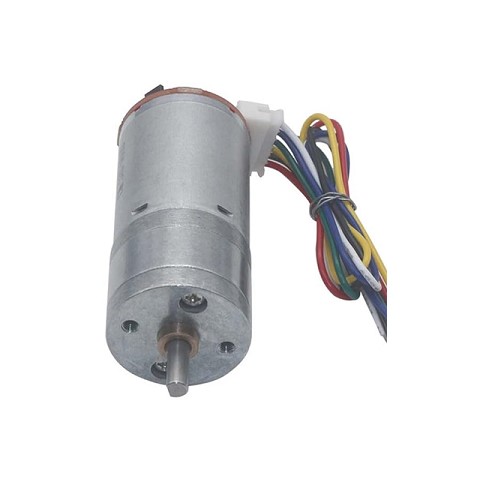

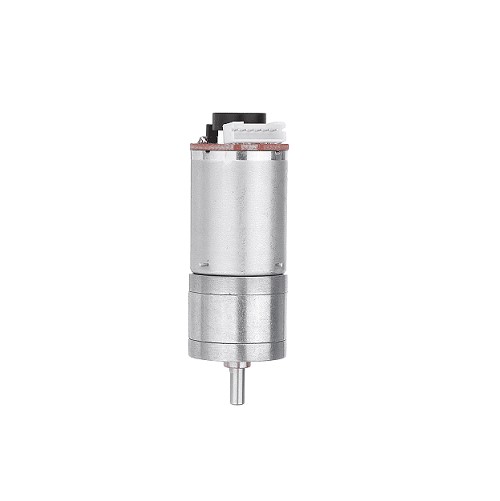

JGA25-370 12V 1360RPM DC Reducer Gear Motor with Encoder (Geared DC Motor with Encoder)

The JGA25-370 12V DC reducer gear motor with encoder is designed for robotics, automation systems, motion control, and precision speed feedback applications. It provides reliable high torque operation with integrated encoder feedback for accurate speed and position monitoring in embedded and industrial projects.

Key Features -

• 12V DC operation with reduced 1360RPM output speed for precise low speed control

• Durable metal gears with metal bush bearings

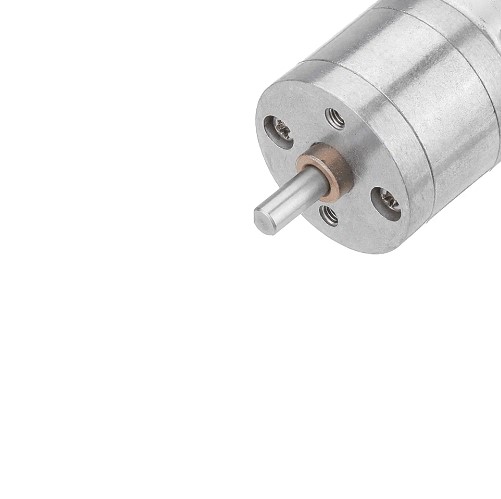

• 4mm output shaft design

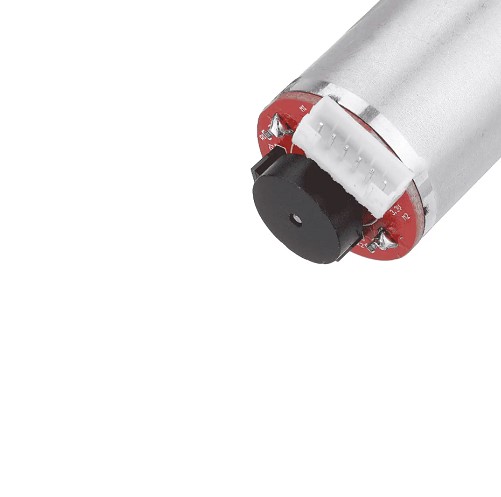

• Integrated encoder feedback system

• Bidirectional motor rotation support

• Built in protection against over current, overload, over temperature, and reverse polarity

Specifications -

• Product type - Geared DC motor with encoder

• Model - JGA25-370

• Motor type - DC reducer gear motor

• Gear type - Reducer gear

• Mounting type - Mechanical mount

• Voltage rating - 12V DC motor operation

• Encoder supply voltage - 3.3V to 5V

• Speed - 1360RPM

• Shaft diameter - 4mm

• Rotation direction - Bidirectional

• Protection features - Over current, overload, over temperature, reverse polarity

• Material - Metal gearbox with encoder assembly and metal bush bearings

• Additional features - Encoder feedback support for precise speed and position control

Wiring Mode -

• Red - Motor power supply positive (+)

• Black - Encoder power supply negative (-) 3.3V to 5V

• Blue - Encoder power supply positive (+) 3.3V to 5V

• White - Motor power supply negative (-)

Applications -

• Robotics and automation systems

• Smart motion control projects

• Embedded electronic systems

• DIY robotic vehicles

• Industrial automation equipment
