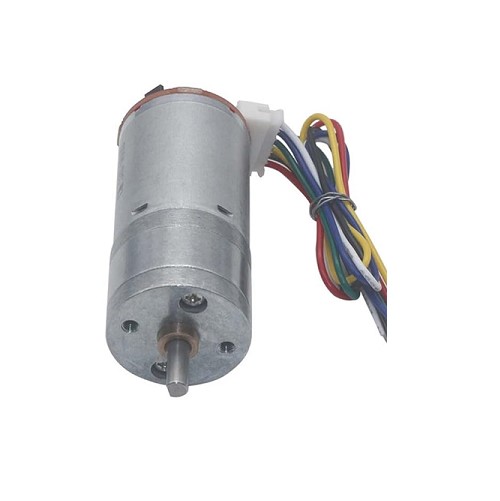

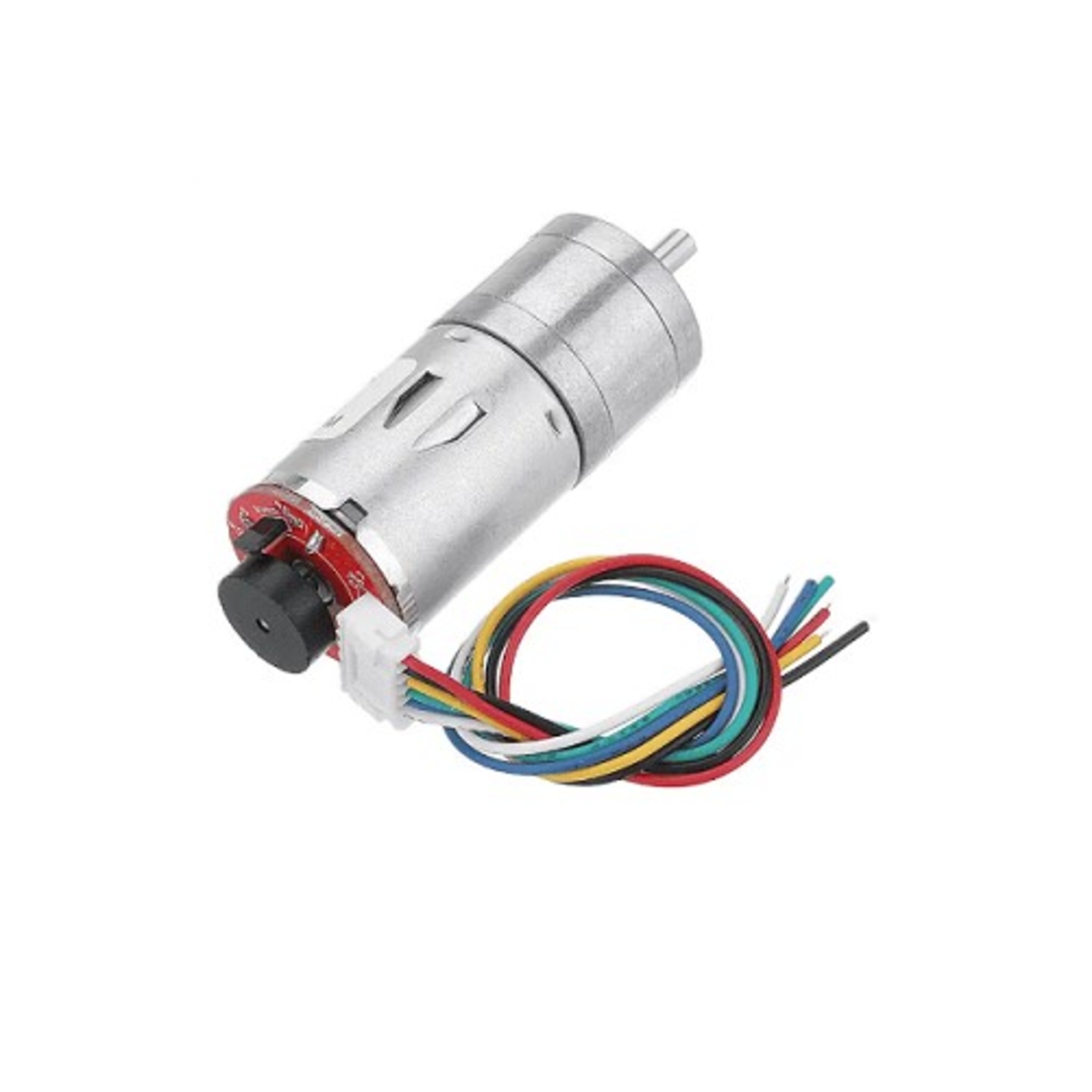

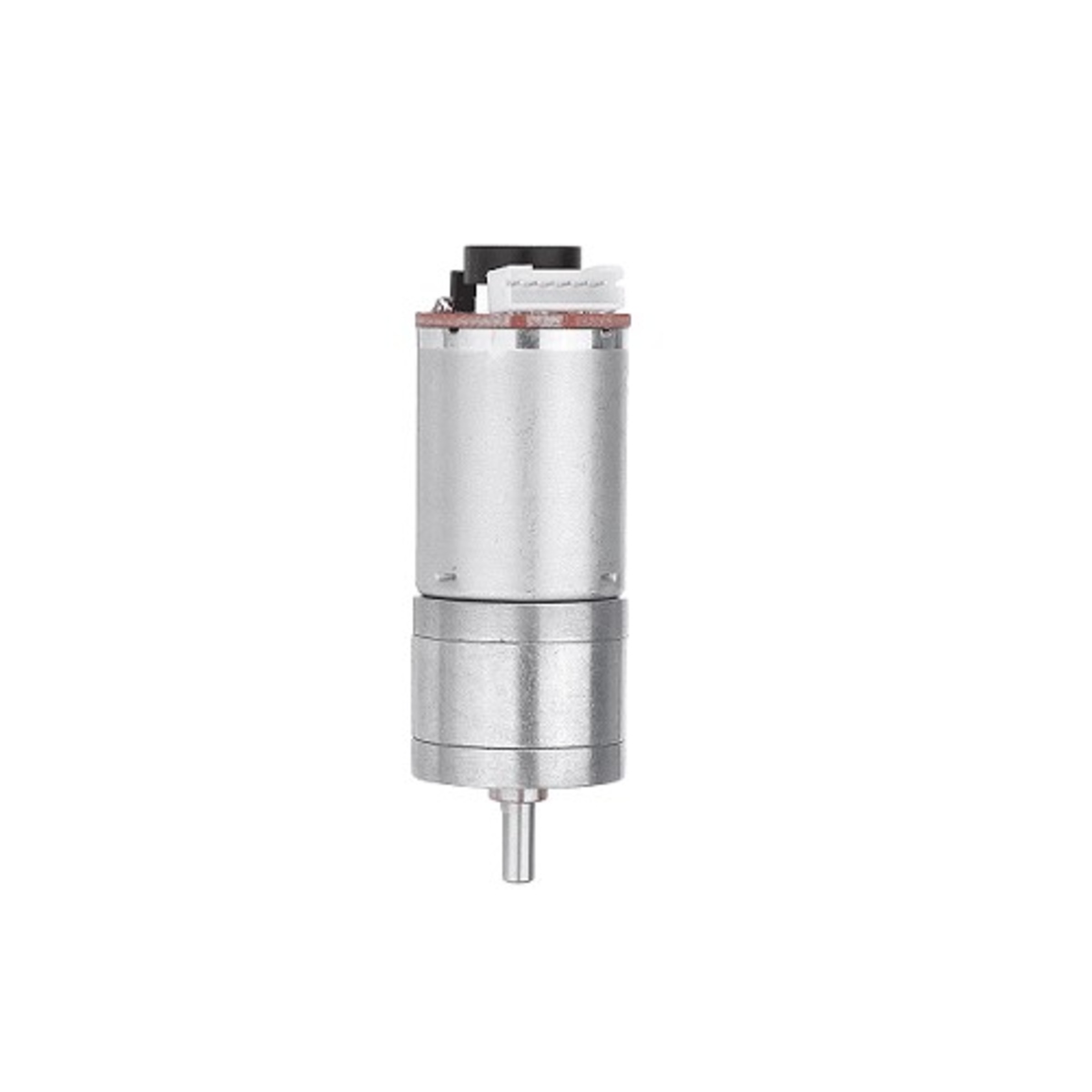

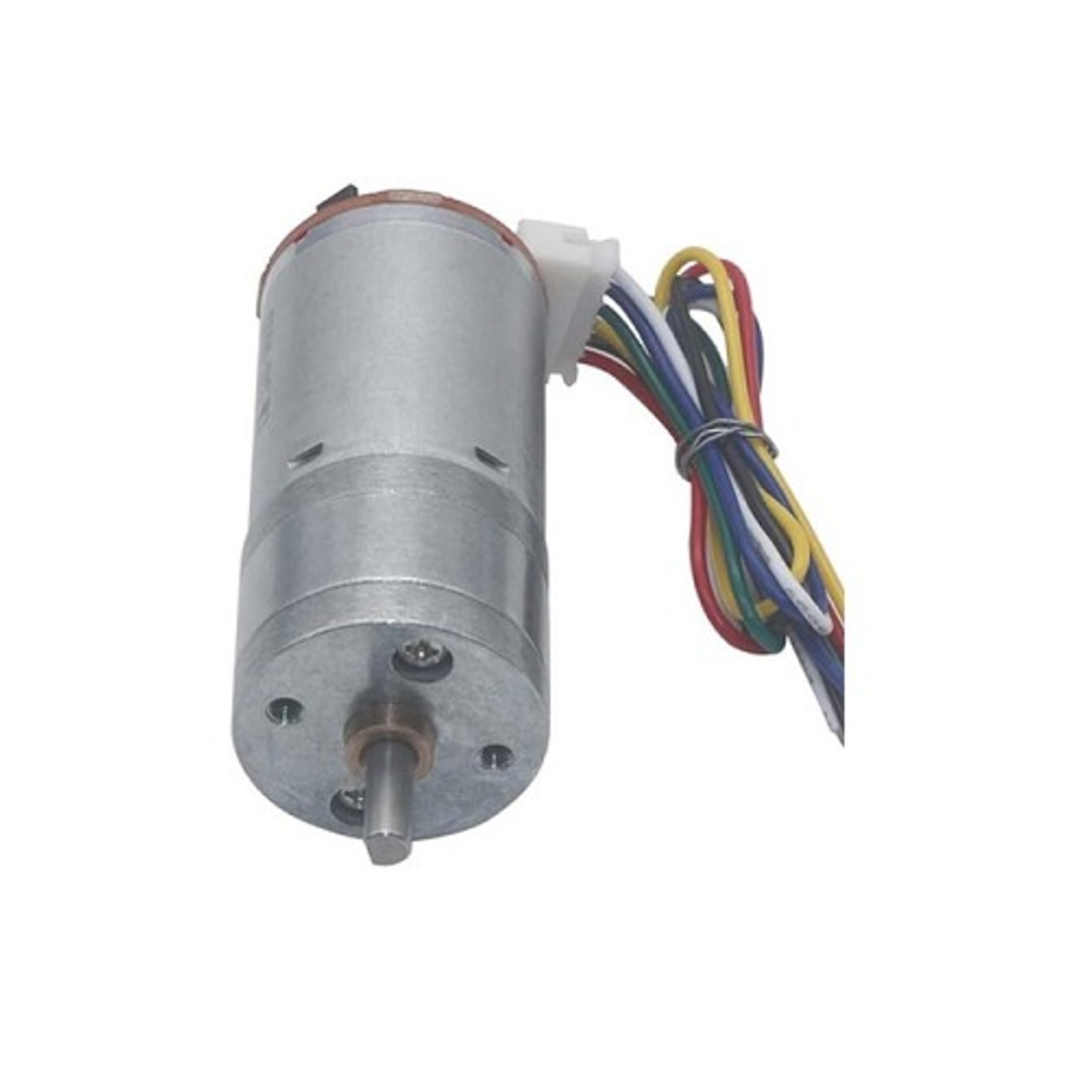

JGA25-370 12V 280RPM DC Reducer Gear Motor with Encoder (Metal Gear Motor, Encoder DC Motor, High Torque Gear Motor)

The JGA25-370 12V 280RPM DC Reducer Gear Motor with Encoder is a compact and reliable geared motor designed for robotics, automation systems, smart vehicles, positioning systems, and industrial control applications. Featuring a durable metal gearbox, built-in encoder, and bidirectional operation, this motor provides precise speed feedback, high torque output, and stable low-speed performance for motion control projects.

Key Features -

• 12V DC operation

• 280RPM output speed

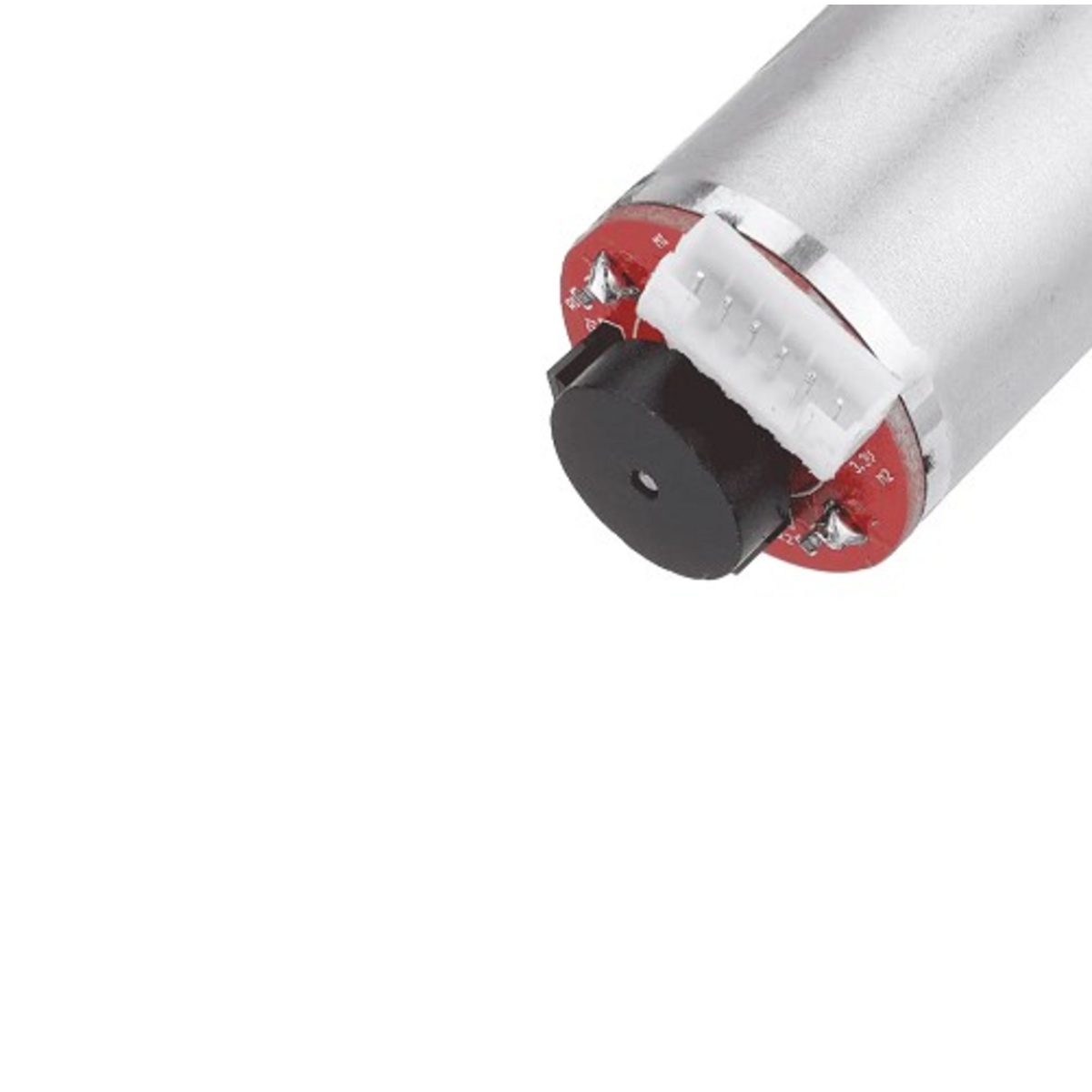

• Built-in encoder for speed and position feedback

• Durable metal gear construction

• High torque output

• Bidirectional rotation support

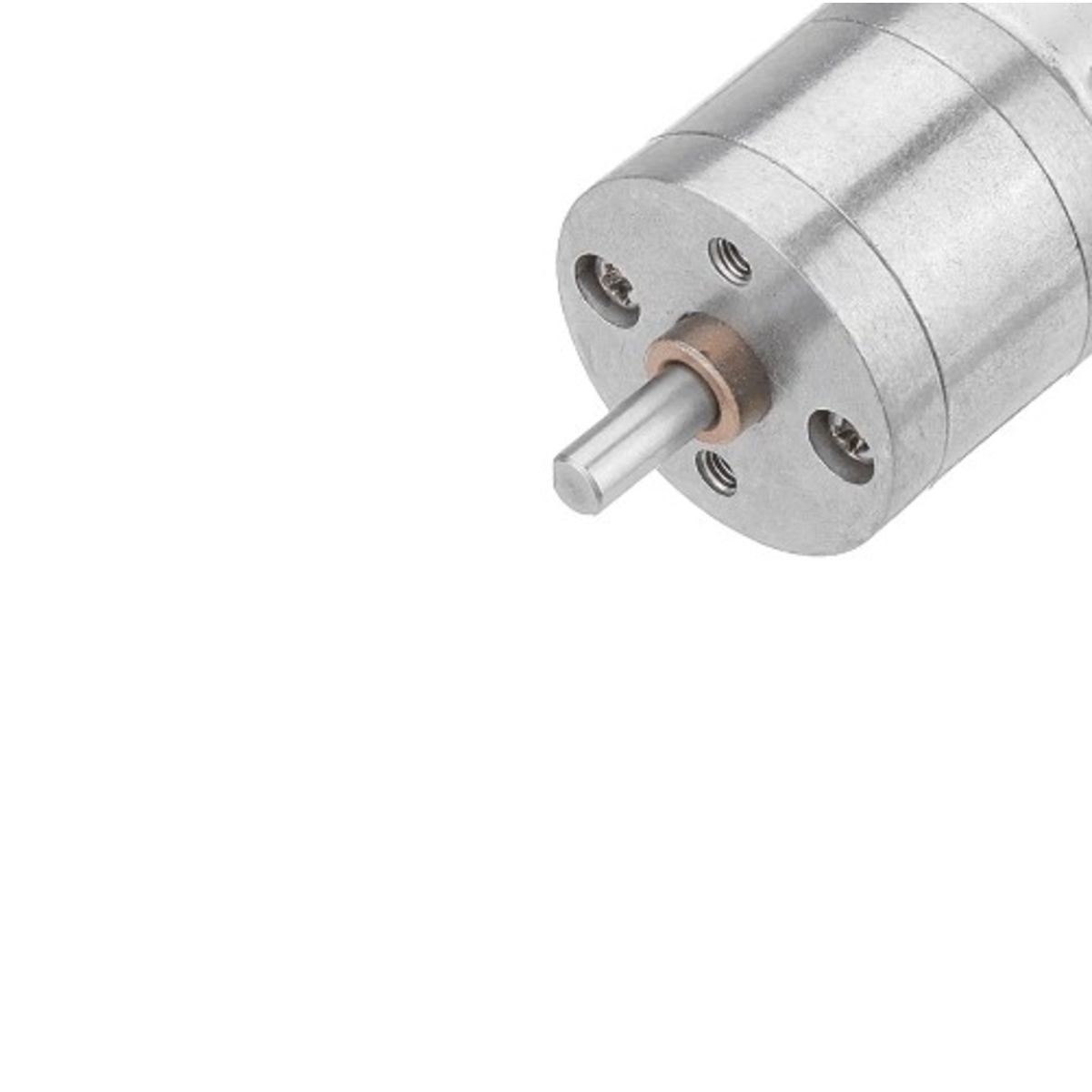

• 4mm output shaft

• Compact and robust design

Specifications -

• Product type - DC geared motor with encoder

• Model - JGA25-370

• Operating voltage - 12V DC

• Output speed - 280RPM

• Gear type - Reducer Gear

• Rotation direction - Bidirectional

• Shaft diameter - 4mm

• Gear material - Metal

• Bearing type - Metal bush bearings

• Encoder supply voltage - 3.3V to 5V

• Protection features - Over-current protection, overload protection, over-temperature protection, and reverse polarity protection

Wiring Mode -

• Red - Motor Power Supply Positive (+)

• Black - Encoder Power Supply Negative (-) (3.3V to 5V, polarity must not be reversed)

• Blue - Encoder Power Supply Positive (+) (3.3V to 5V, polarity must not be reversed)

• White - Motor Power Supply Negative (-)

Applications -

• Robotics projects

• Smart car platforms

• Motion control systems

• Industrial automation

• Position control applications

• Conveyor systems

• DIY electronics projects
