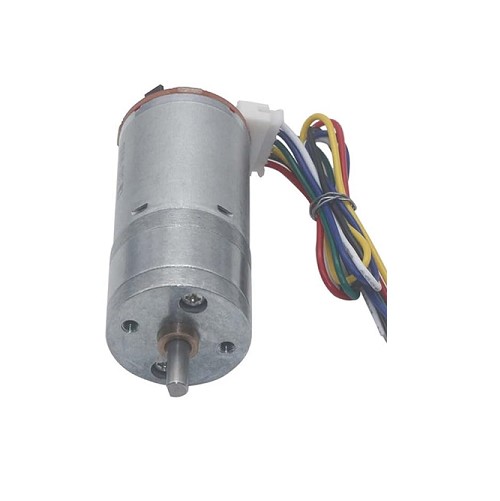

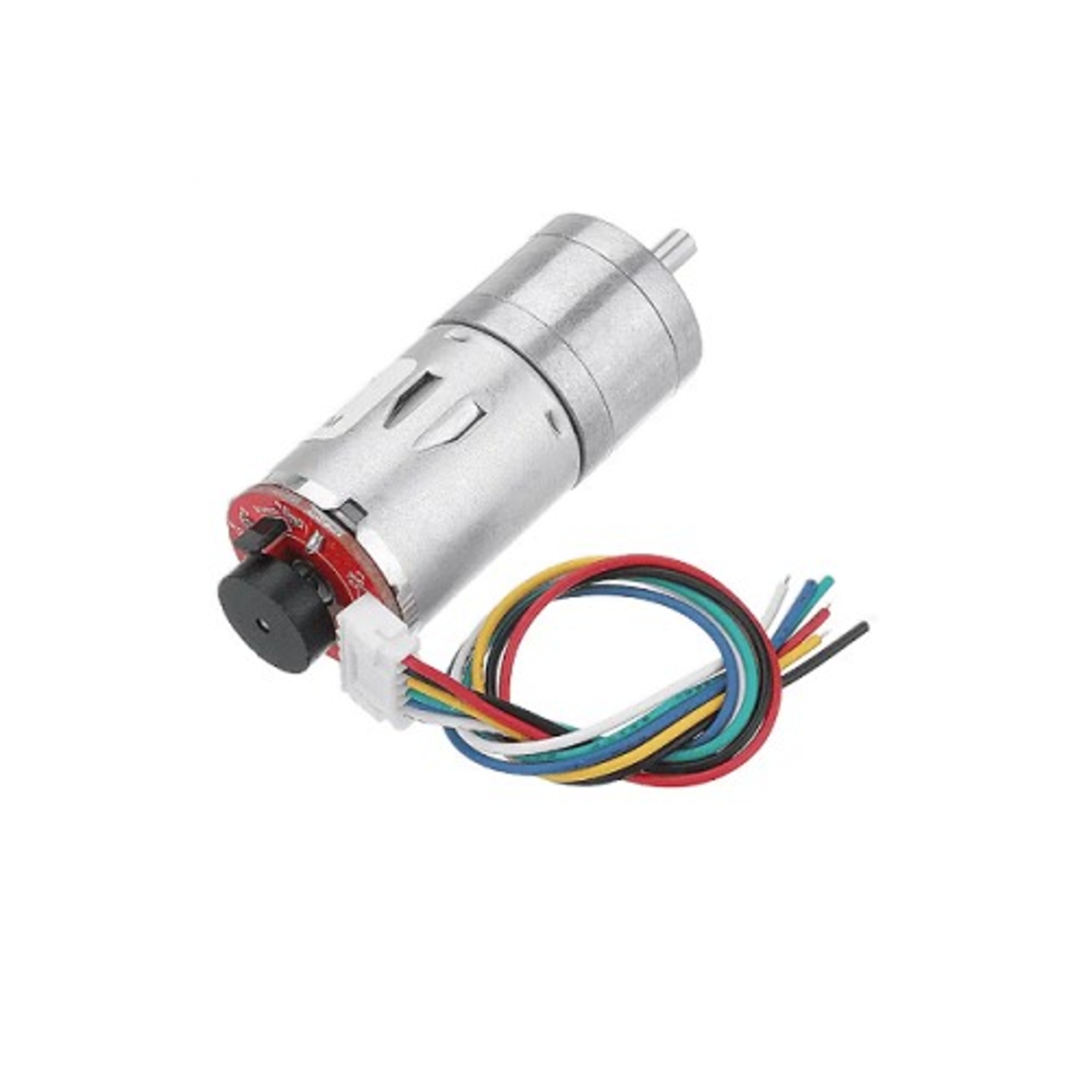

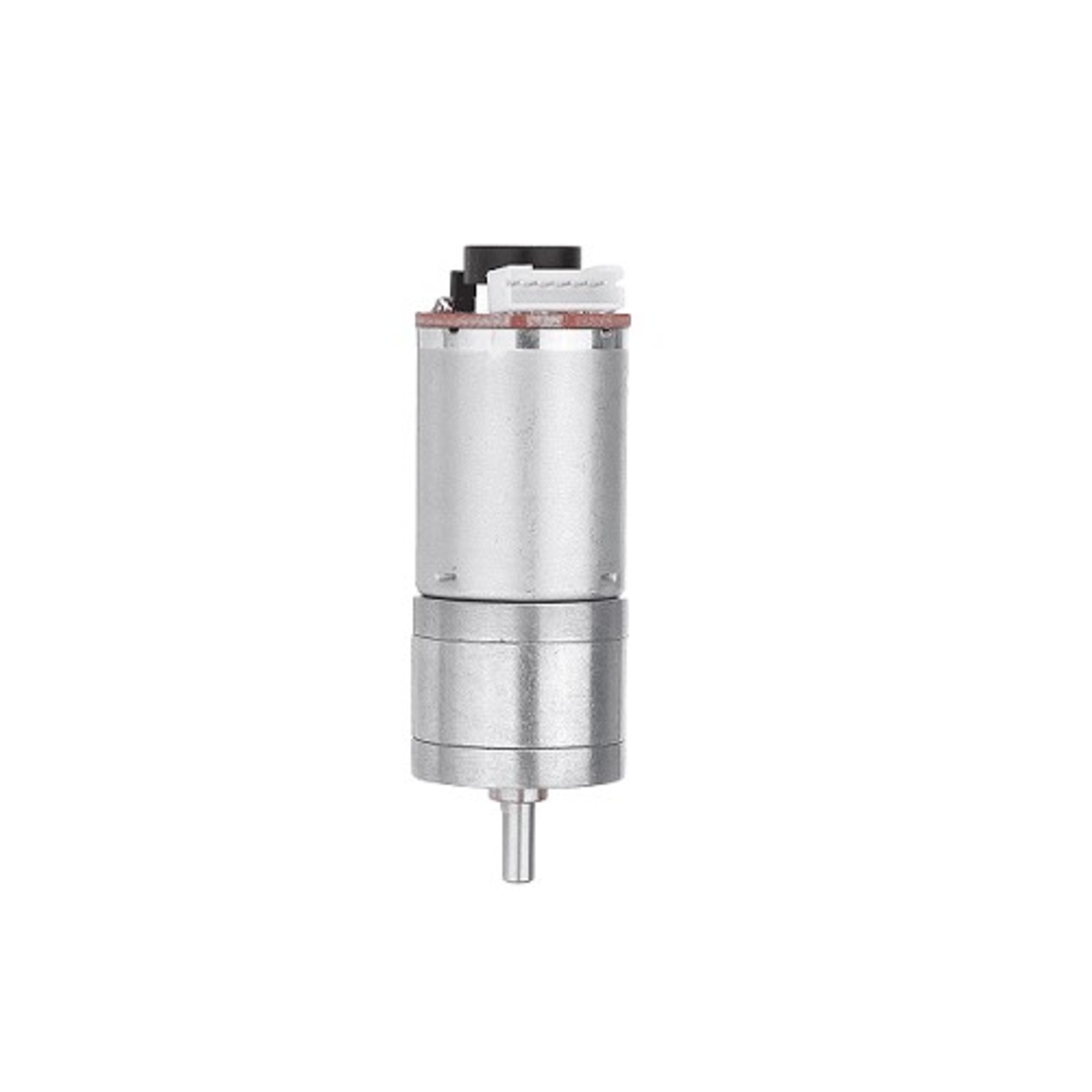

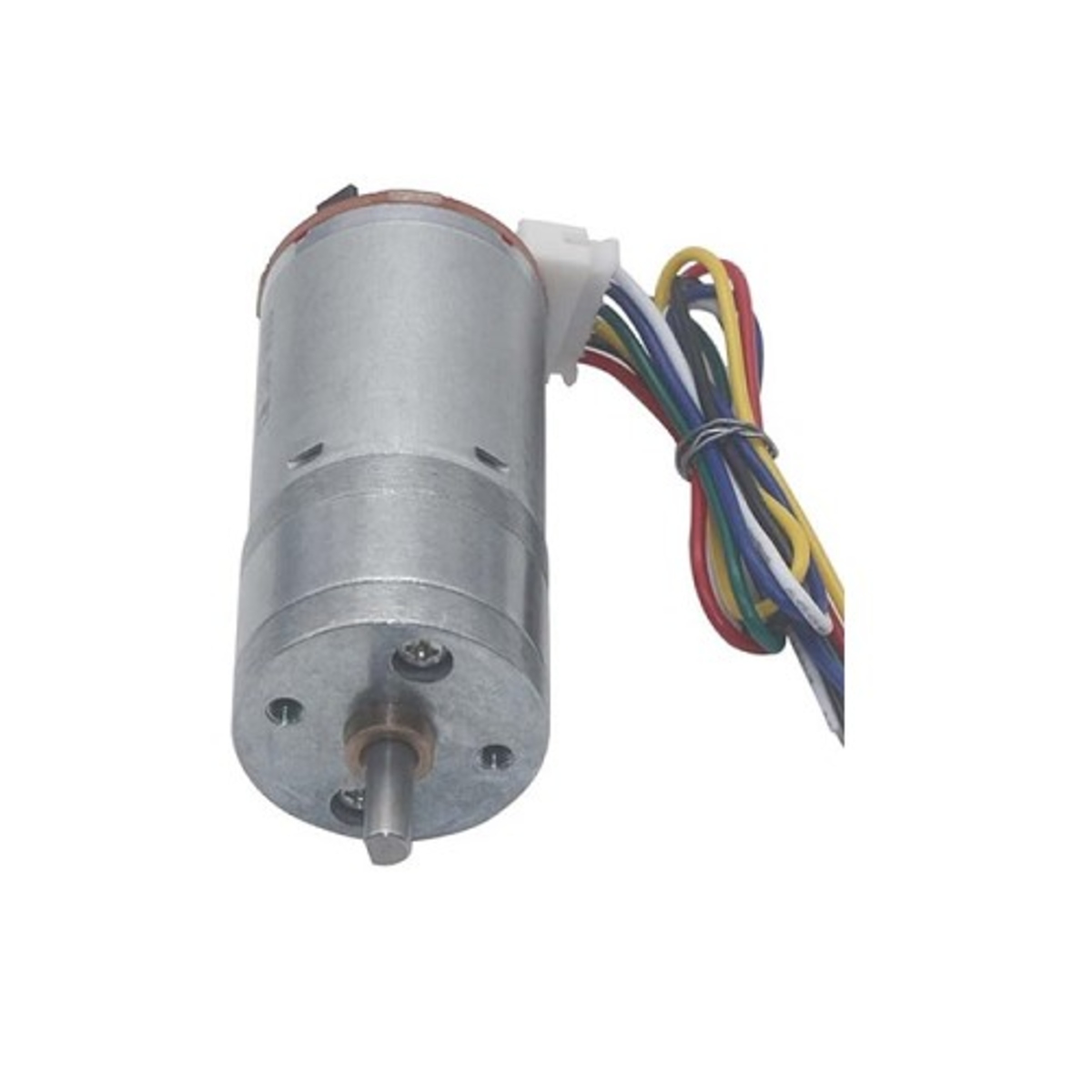

JGA25-370 12V 35RPM DC Gear Motor with Encoder (Metal Reducer Gear Motor)

The JGA25-370 12V 35RPM DC Gear Motor with Encoder is a high-performance metal geared DC motor designed for applications requiring precise low-speed motion control, high torque, and accurate speed feedback. Equipped with an integrated quadrature encoder, it enables real-time position and speed monitoring, making it ideal for closed-loop control systems.

Featuring a durable metal reducer gearbox, metal bush bearings, and a 4mm D-type output shaft, this motor delivers reliable performance in robotics, automation, conveyor systems, AGVs, smart machinery, and embedded motion control applications.

Key Features -

• Operates from a 12V DC power supply

• Low-speed 35RPM output with high torque

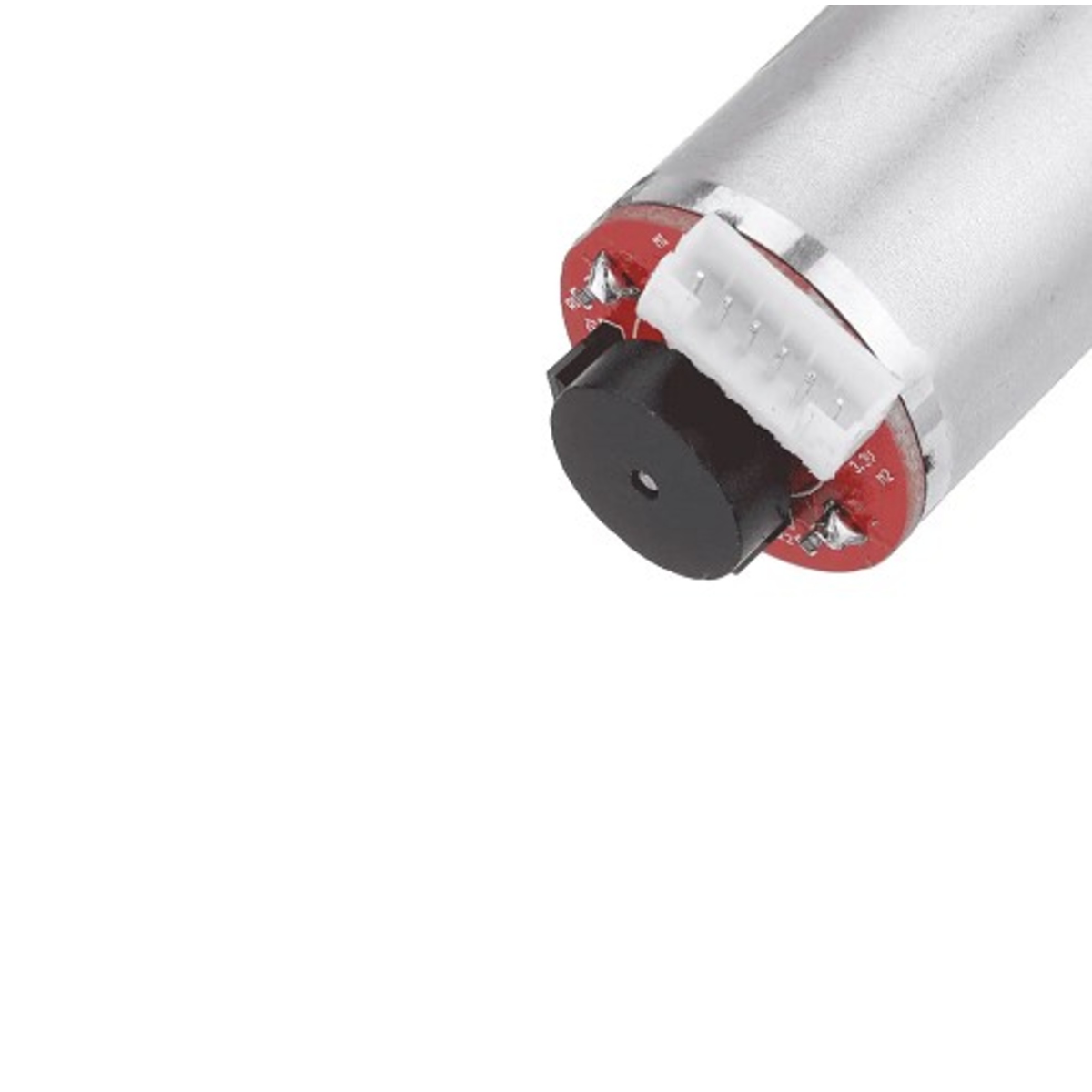

• Integrated encoder for speed and position feedback

• Precision metal reducer gearbox

• Durable metal gears and bush bearings

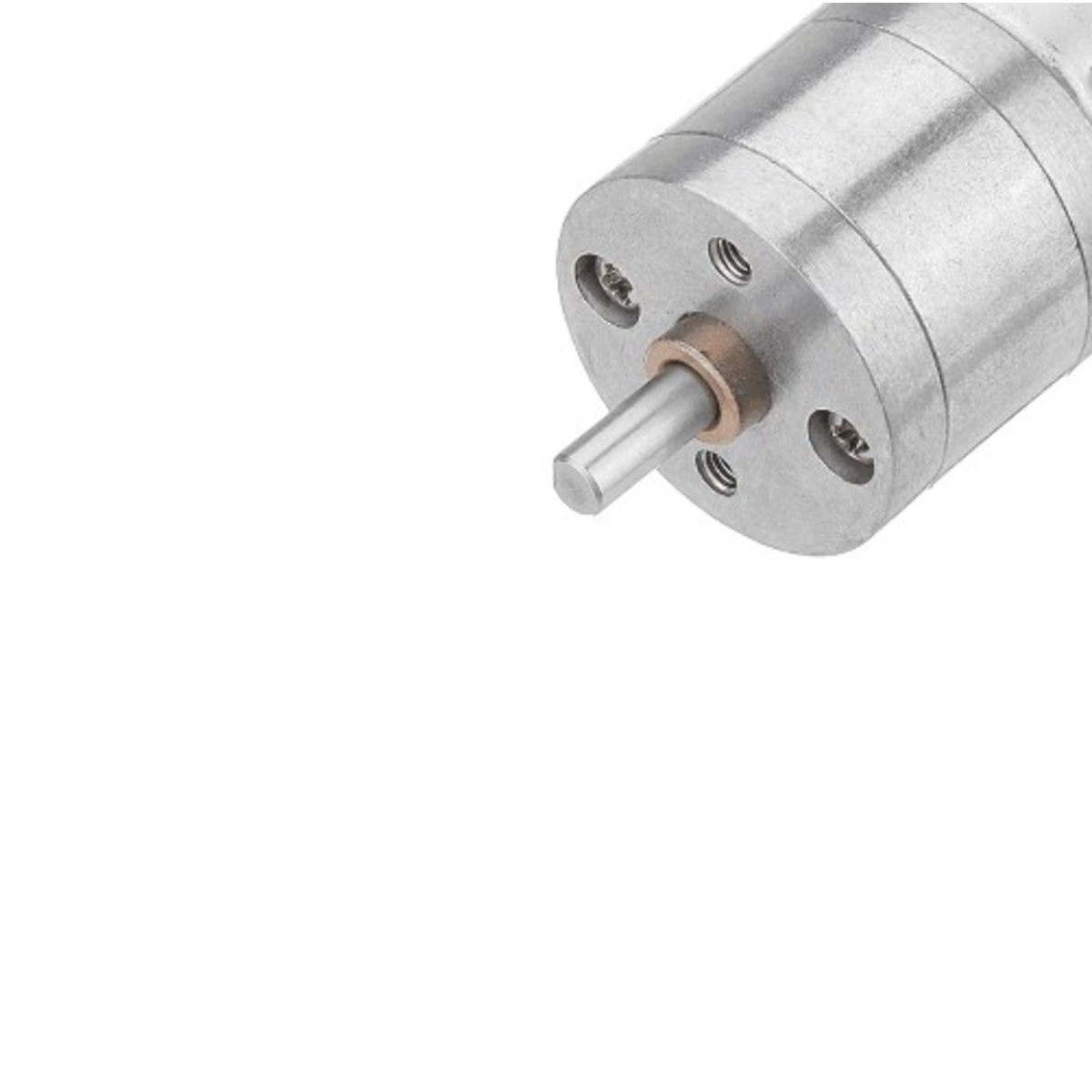

• 4mm D-type output shaft

• Bidirectional rotation support

• Smooth and stable operation

• Built-in protection against overload and reverse polarity

• Suitable for industrial and robotics applications

Specifications -

• Product type - DC Gear Motor with Encoder

• Model - JGA25-370

• Rated voltage - 12V DC

• Output speed - 35RPM

• Motor type - Brushed DC Gear Motor

• Gear type - Reducer Gear

• Gear material - Metal

• Output shaft diameter - 4mm

• Bearing type - Metal Bush Bearing

• Rotation direction - Bidirectional

• Protection - Over-current, Overload, Over-temperature, Reverse Polarity

Applications -

• Robotics and robotic vehicles

• Automated guided vehicles (AGVs)

• Conveyor systems

• Smart door and gate automation

• Industrial automation equipment

• Position control systems

• Arduino and ESP32 projects

• Motion control applications

• Educational robotics kits

• DIY automation projects
