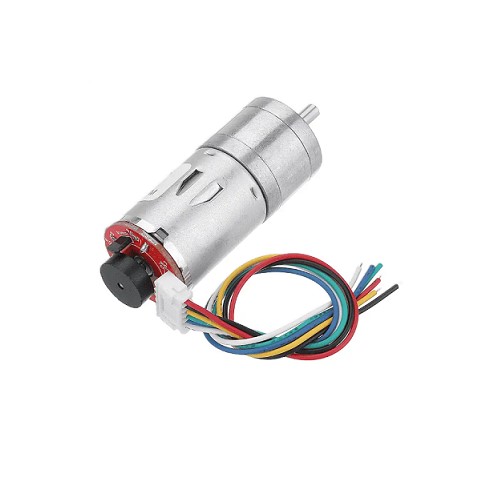

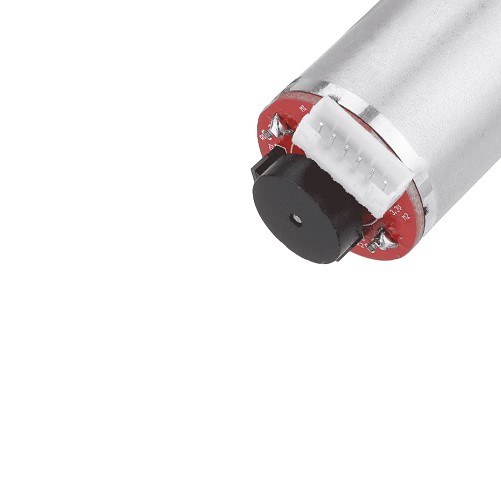

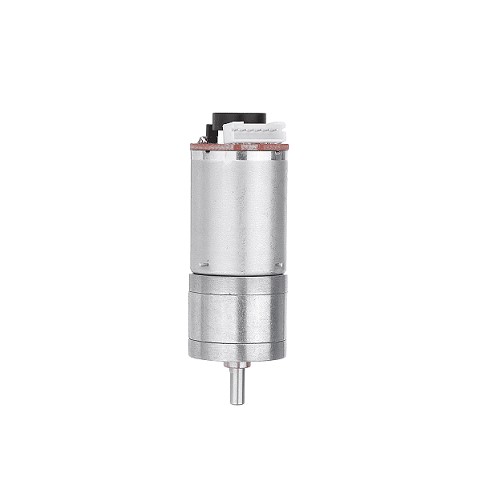

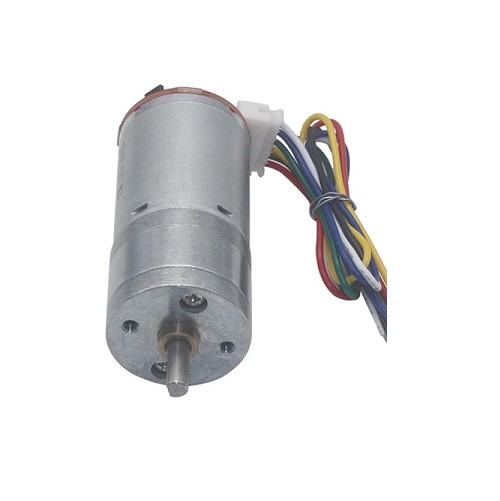

JGA25-370 12V 60RPM DC Reducer Gear Motor with Encoder
₹ 590.00 (Inclusive of 18.00% GST)
Base Price: ₹ 500.00 | GST (18.00%): ₹ 90.00
Out of Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
• 12V DC operation with a reduced output speed of 60 RPM for precise low‐speed control

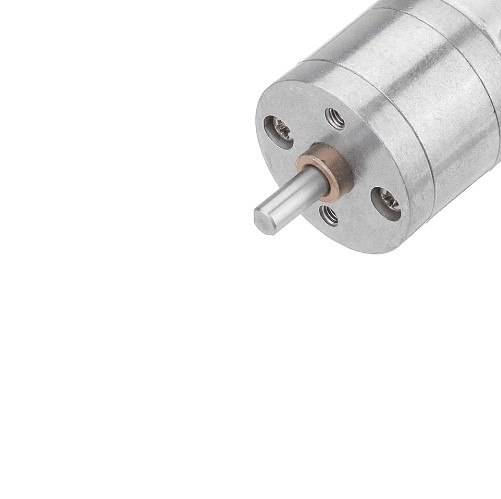

• Durable metal gears paired with metal bush bearings on the 4 mm shaft
• Gear Type-Reducer Gear
• Direction of Rotation-Bidirectional
• Protection-Over-current, Overload, Over-temperature, Reverse polarity
Wiring Mode
Red: motor power supply + (exchange can control the positive and negative rotation of the motor)
Black: coded power supply - (positive and negative poles cannot be connected incorrectly) 3.3-5V
Blue: coded power supply + (positive and negative poles cannot be connected incorrectly) 3.3-5V
White: motor power supply - (exchange can control positive and negative rotation of motor)
