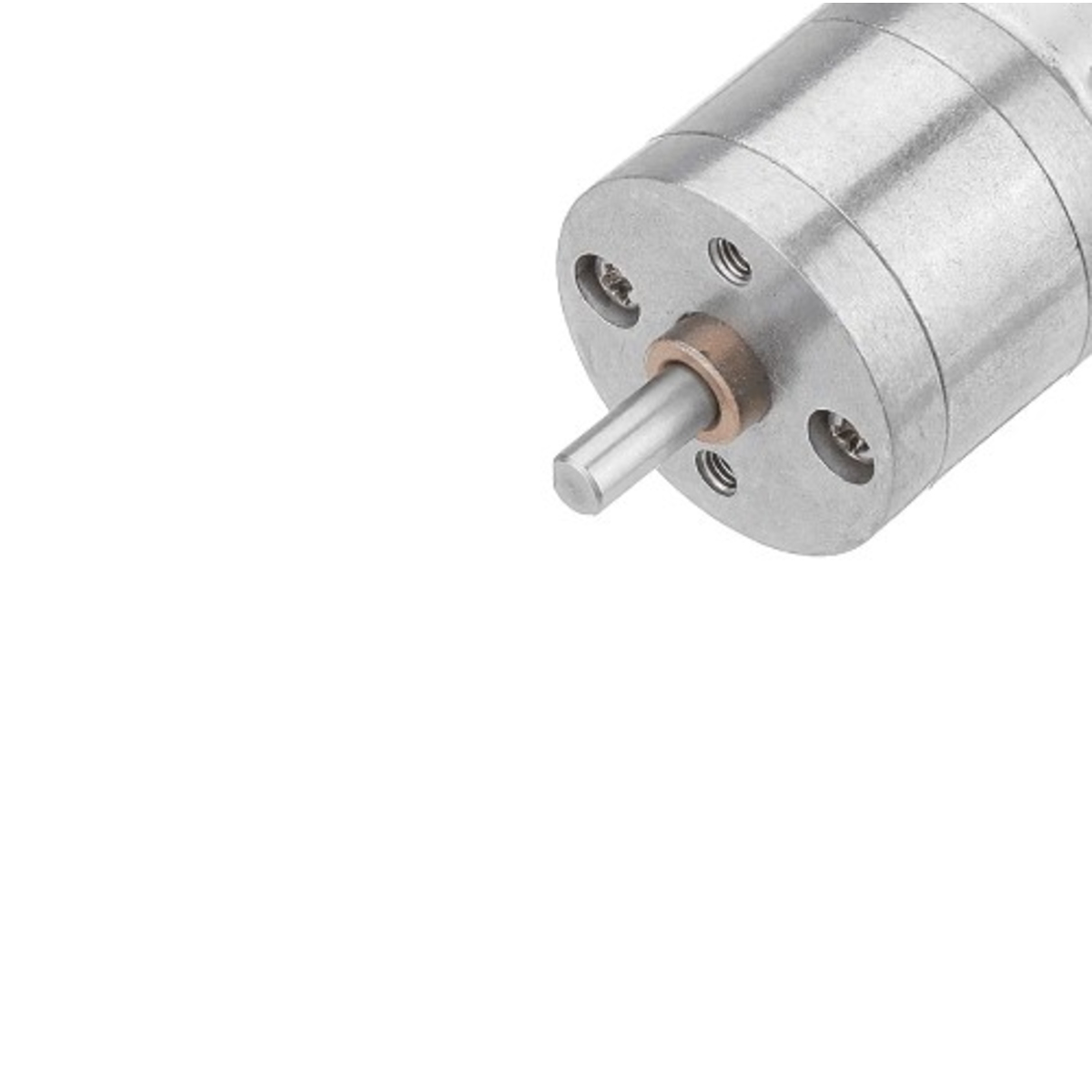

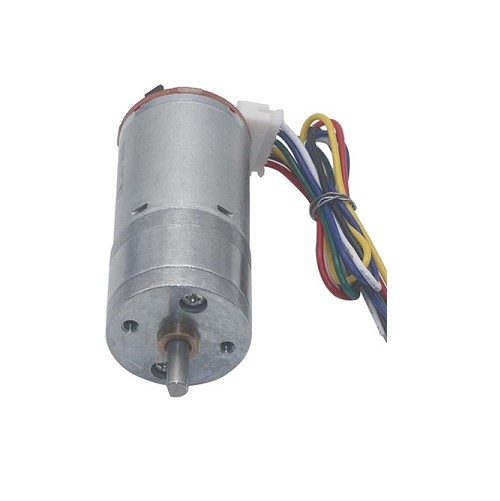

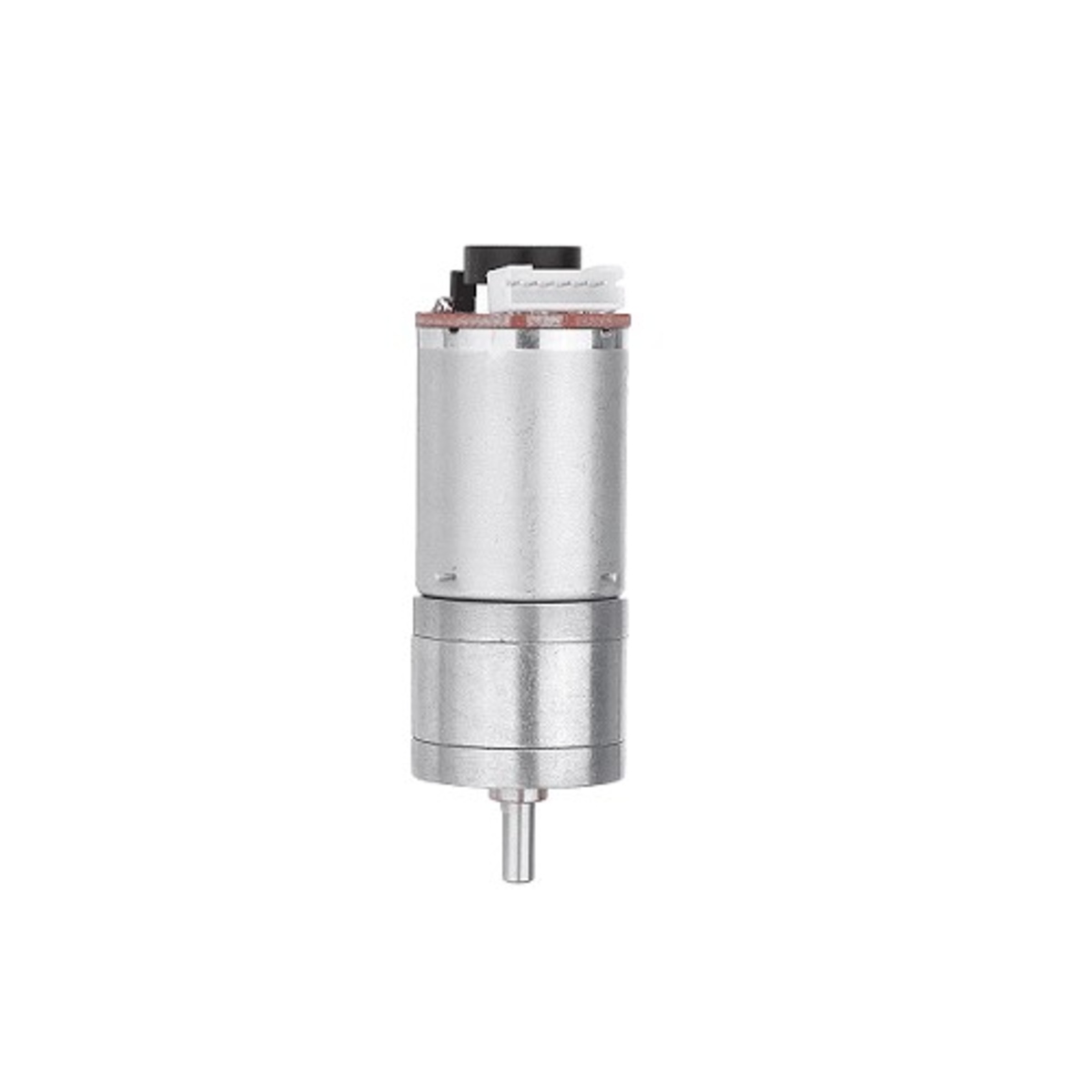

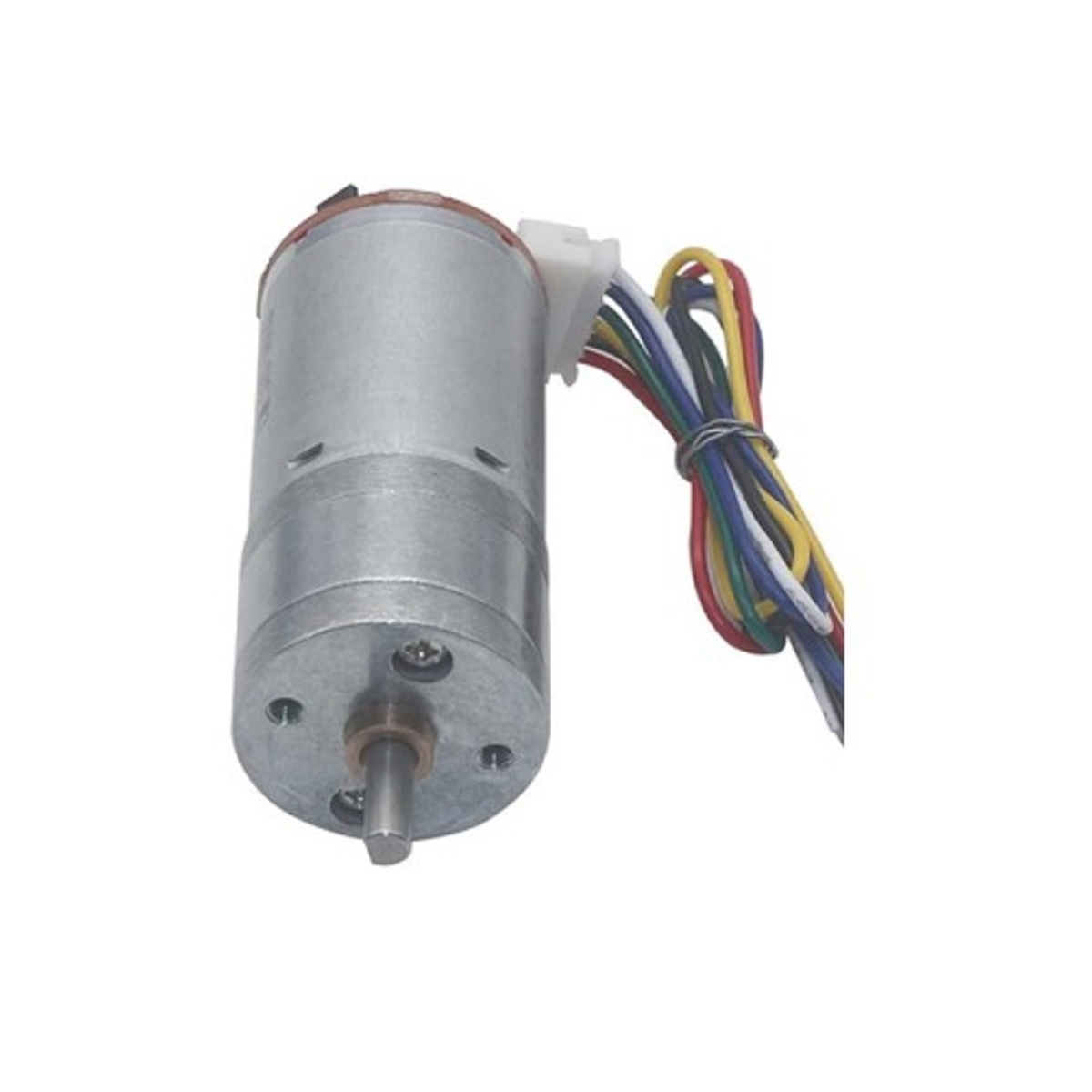

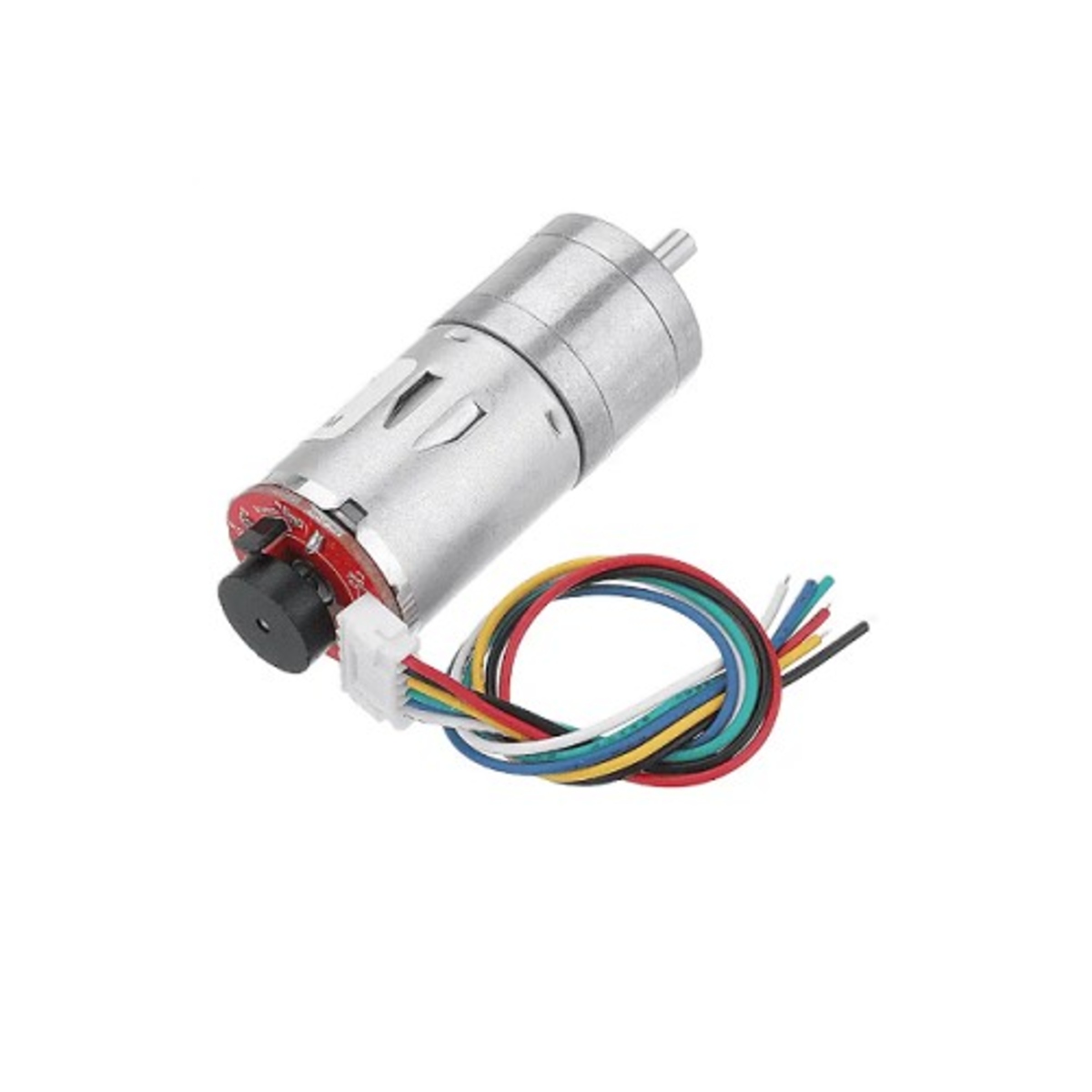

JGA25-370 12V 620RPM DC Reducer Gear Motor with Encoder (Metal Gear Motor)

The JGA25-370 12V DC Reducer Gear Motor with Encoder is a compact high-performance geared motor designed for robotics, automation systems, smart vehicles, industrial equipment, and motion control applications. Featuring a built-in encoder for speed and position feedback, durable metal gears, and a bidirectional drive mechanism, it provides reliable low-speed operation with enhanced control accuracy.

Key Features -

• 12V DC operation

• 620RPM output speed

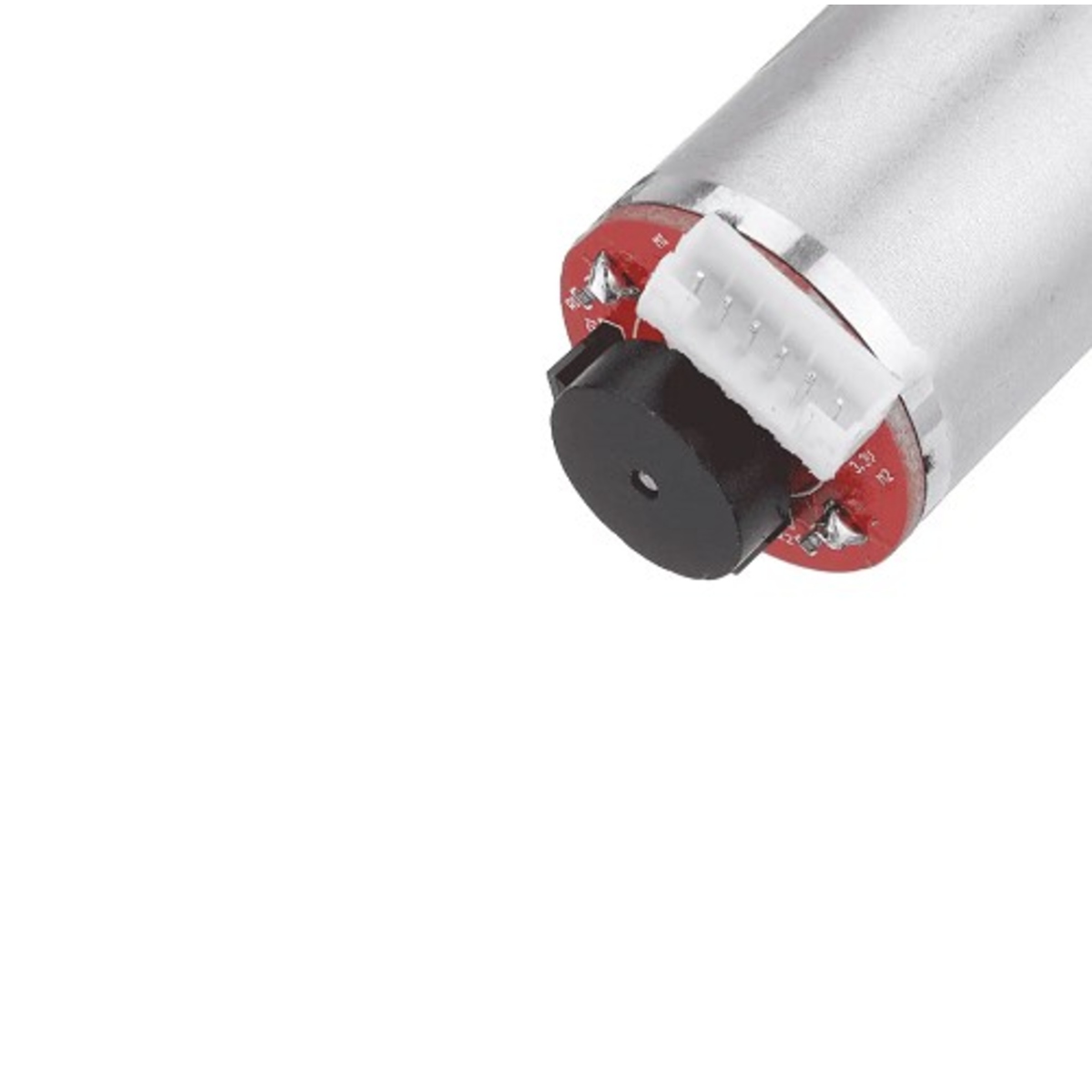

• Built-in encoder for speed feedback

• Durable metal gear construction

• Metal bush bearings on 4mm shaft

• Bidirectional rotation

• Compact and robust design

Specifications -

• Product type - DC Geared Motor with Encoder

• Model - JGA25-370

• Operating voltage - 12V DC

• Output speed - 620RPM

• Gear type - Reducer Gear

• Shaft diameter - 4mm

• Bearing type - Metal Bush Bearing

• Rotation direction - Bidirectional

• Encoder supply voltage - 3.3V to 5V DC

• Protection - Over-current, Overload, Over-temperature, Reverse Polarity

Wiring Configuration -

• Red - Motor Power Supply Positive (+)

• White - Motor Power Supply Negative (-)

• Blue - Encoder Power Supply Positive (+) 3.3V to 5V

• Black - Encoder Power Supply Negative (-)

Applications -

• Robotics projects

• Smart cars and mobile robots

• Industrial automation

• Position control systems

• Speed monitoring applications

• DIY electronics projects

• Motion control equipment
