SMD LED Sample Book 1200PCS (0402, 0603, 0805 & 1206 Assorted Light Emitting Diodes)

The SMD LED Sample Book is a comprehensive assortment of surface-mount Light Emitting Diodes (LEDs) designed for PCB prototyping, electronics repair, product development, and SMT assembly. The kit contains 1,200 SMD LEDs in the most commonly used package sizes 0402, 0603, 0805, and 1206, making it suitable for a wide range of electronic and lighting applications.

The assortment includes six LED colors—Red, Green, Blue, White, Yellow, and Orange—with each LED type supplied in labeled cut tape and neatly organized inside a durable sample book for quick identification and convenient storage. This kit is ideal for engineers, technicians, students, makers, and electronics repair professionals.

Key Features -

• Includes 1,200 SMD LEDs

• Four popular package sizes: 0402, 0603, 0805, and 1206

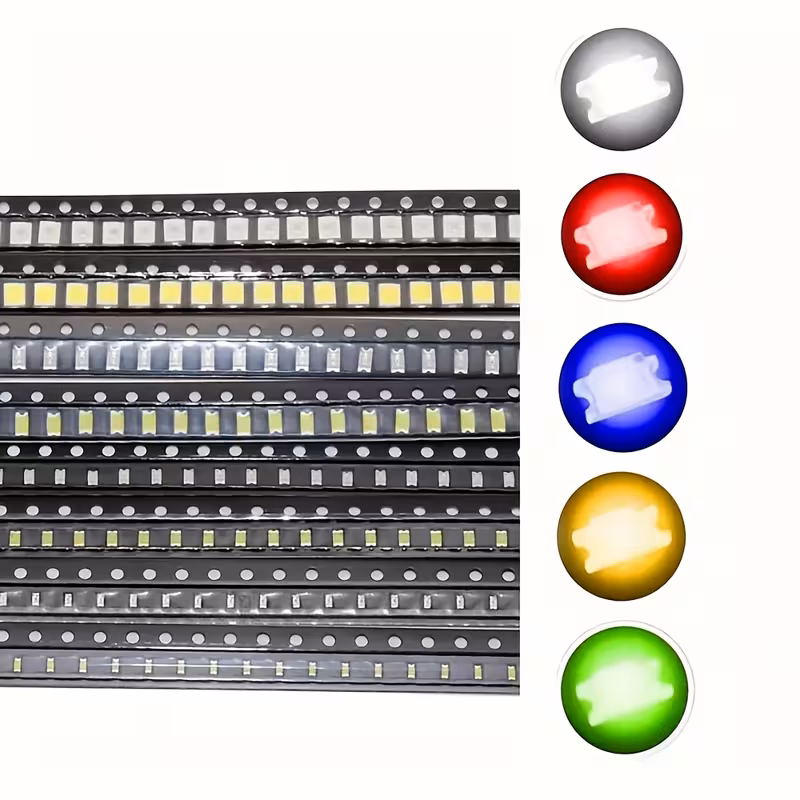

• Six LED colors: Red, Green, Blue, White, Yellow, and Orange

• Standard forward current rating of 20mA

• Wide 120° viewing angle

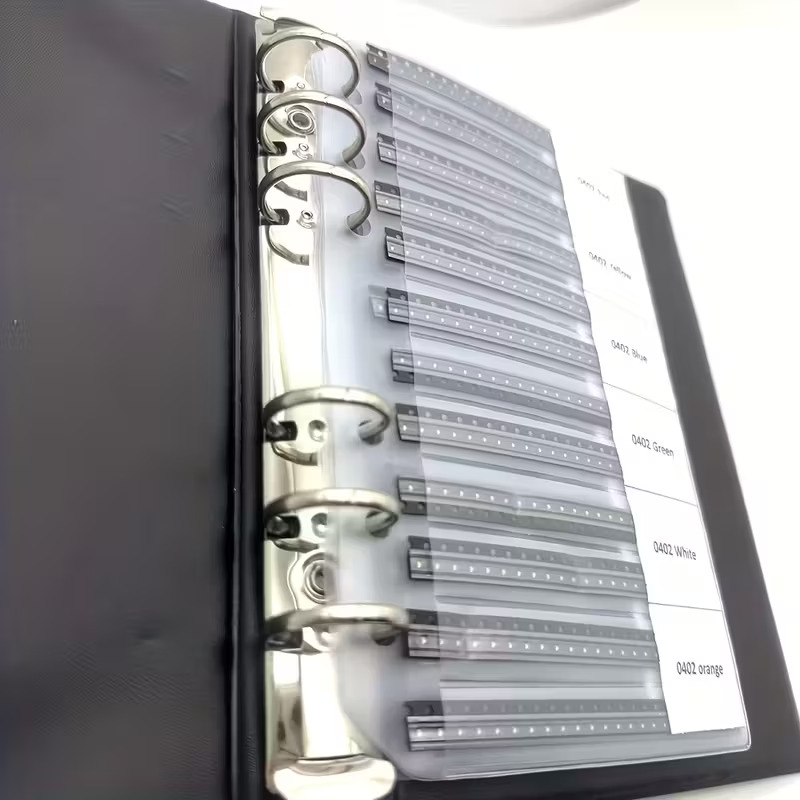

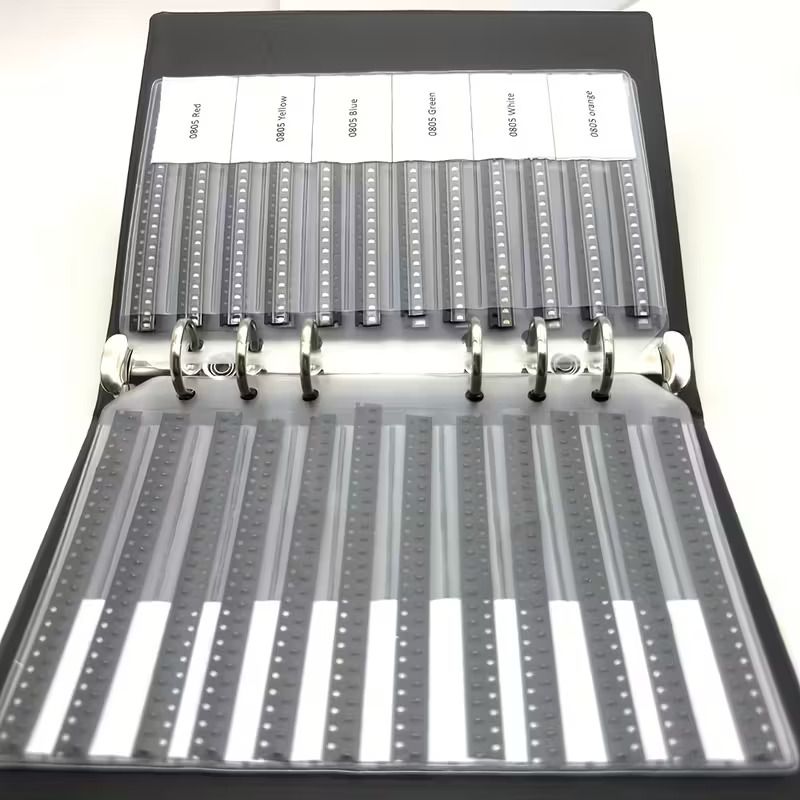

• Organized sample book with labeled storage pages

• Components supplied in cut tape format

• Easy identification and quick component selection

• Reusable sample book for long-term storage

• Ideal for PCB assembly, prototyping, and electronics repair

Specifications -

• Product type - SMD LED Sample Book

• LED type - Surface Mount Light Emitting Diode (SMD LED)

• Total quantity - 1200 Pieces

• Package sizes - 0402, 0603, 0805, 1206

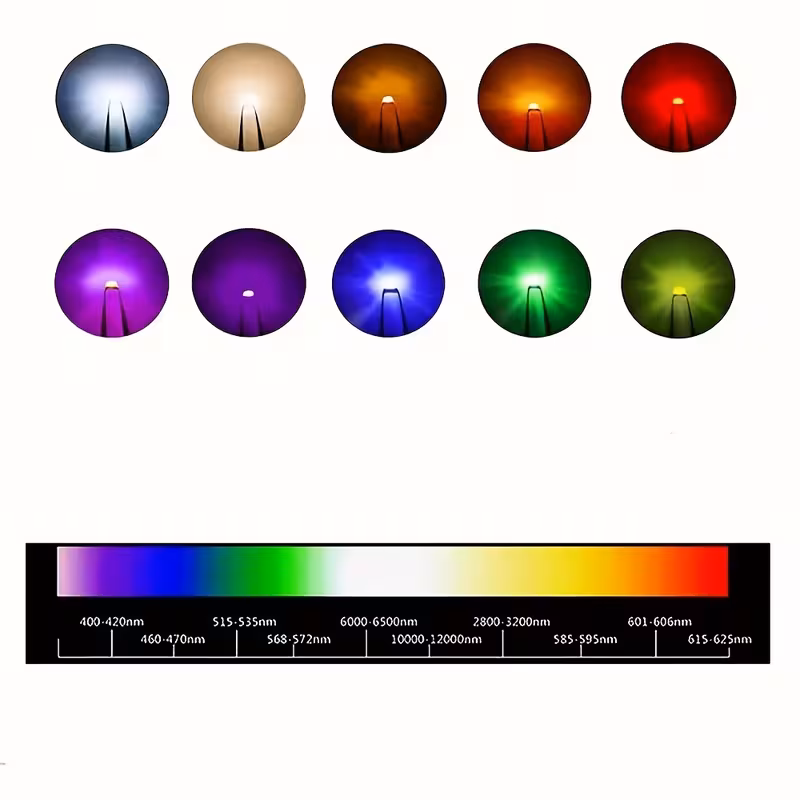

• LED colors - Red, Green, Blue, White, Yellow, Orange

• Quantity per LED type - 50 Pieces

• Forward current - 20mA (Typical)

• Viewing angle - 120°

• Mounting type - Surface Mount (SMD/SMT)

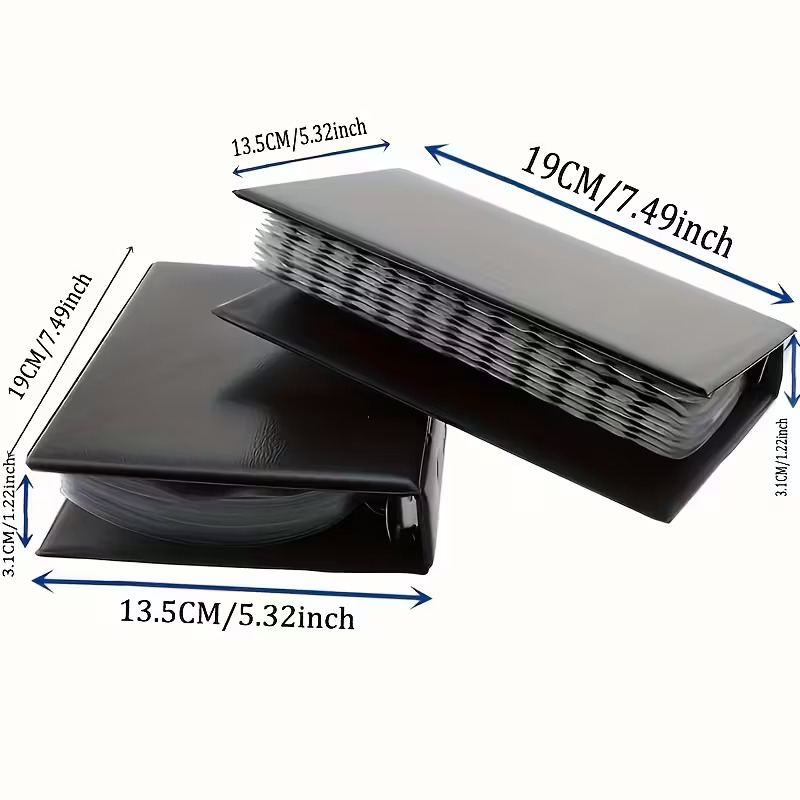

• Storage type - Sample Book Organizer

• Component format - Paper Tape / Cut Tape

Applications -

• PCB prototyping and development

• Consumer electronics repair

• Indicator light circuits

• IoT and embedded system projects

• Arduino and ESP32 projects

• LED display and lighting projects

• Educational electronics laboratories

• Industrial electronics maintenance

• Engineering research and development

• DIY electronics projects.

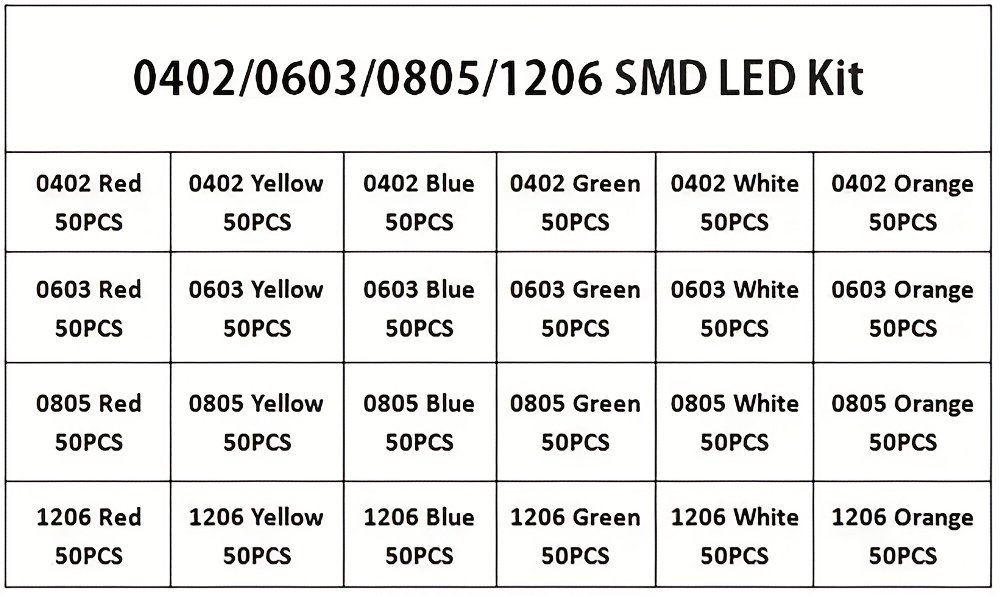

There are 50 pieces for each value, with all 24 values included in a single package.
