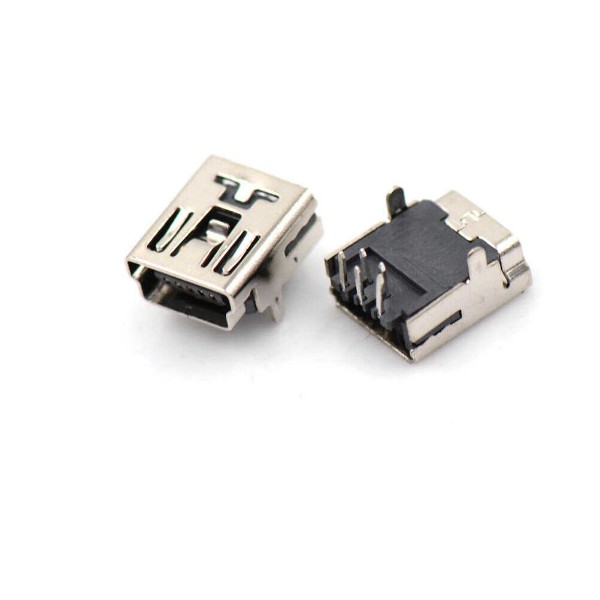

Mini USB Type-B Female Socket 5-Pin Right Angle (PCB Mount Connector)

The Mini USB Type-B Female Socket 5-Pin Right Angle is a compact PCB-mount USB connector designed for reliable USB data transfer and 5V power connections in embedded systems, development boards, portable electronics, digital cameras, GPS devices, and industrial equipment. Its right-angle design allows space-efficient PCB layouts while providing a secure Mini USB interface.

The connector features a 5-pin Mini USB Type-B female socket with solder terminals and a durable metal shell for enhanced mechanical strength and EMI shielding.

Key Features -

• Mini USB Type-B 5-pin female connector

• Right-angle PCB mount design

• Supports USB 2.0 data transfer and power input

• Compact and space-saving construction

• Durable metal shielding shell

• Reliable electrical and mechanical connection

• Suitable for embedded and portable electronics

Specifications -

• Product Type: Mini USB Connector

• Connector Type: Mini USB Type-B Female

• Number of Pins: 5

• USB Standard: USB 2.0

• Orientation: Right Angle

• Mounting Type: PCB Mount

• Termination Type: Solder Pins

• Contact Material: Gold-Plated Copper Alloy

• Shell Material: Nickel-Plated Steel

• Application: USB Data and Power Connection

Applications -

• Development boards

• Embedded systems

• Digital cameras

• GPS navigation devices

• Portable electronic equipment

• Industrial control systems

• USB communication interfaces

• Electronic repairs and DIY PCB projects
