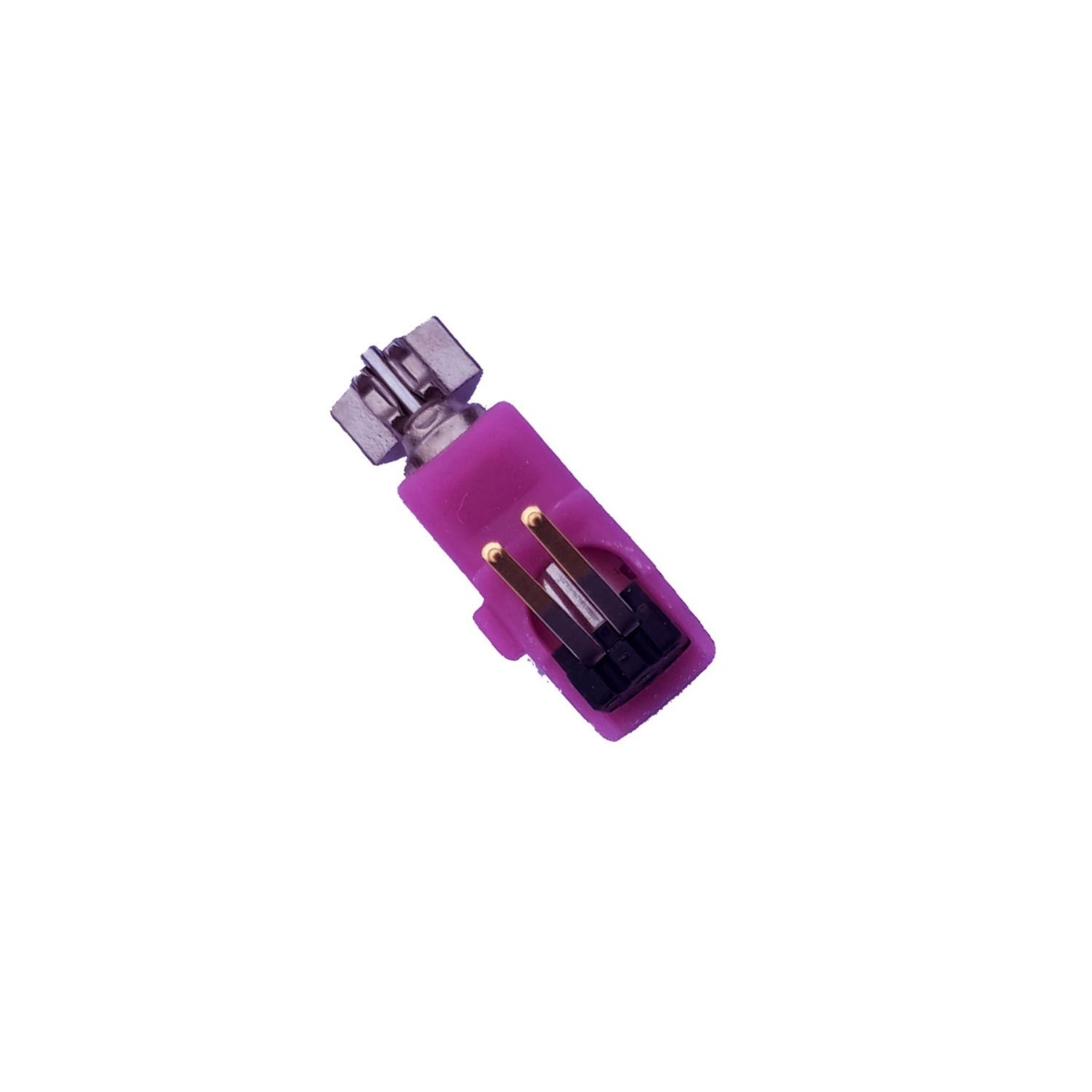

5x12mm Mini DC Vibration Motor 3V Micro Vibrating Motor (1.5V-3V | 10000RPM)

The 5x12mm Mini DC Vibration Motor is a compact eccentric rotating mass (ERM) motor designed to generate vibration for wearable devices, mobile electronics, robotics, haptic feedback systems, alarms, and DIY electronics projects. Operating from 1.5V to 3V DC, it uses an off-center weight mounted on the motor shaft to produce strong and consistent vibration while maintaining low power consumption.

Encased in a protective rubber housing with pre-attached wire leads, this micro vibration motor is easy to mount and integrate into compact electronic devices. It is widely used in bristlebots, notification systems, handheld devices, toys, and embedded vibration applications.

Key Features -

• Operates from 1.5V to 3V DC

• Compact 5x12mm micro vibration motor

• Eccentric rotating mass (ERM) vibration mechanism

• High-speed operation up to 10000RPM (Typical)

• Low power consumption

• Rubber housing for easy mounting and vibration isolation

• Pre-attached wire leads for quick connection

• Smooth and reliable vibration output

• Compact and lightweight design

• Ideal for haptic feedback and DIY projects

Specifications -

• Product type - DC Micro Vibration Motor

• Motor type - Brushed Eccentric Rotating Mass (ERM) Motor

• Operating voltage - 1.5V to 3V DC

• Typical speed - 10000 ± 2000RPM

• Maximum current - 70mA

• Starting current - 90mA

• Motor dimensions - Approximately 6mm × 6mm × 16mm

• Housing material - Rubber

• Connection type - Pre-attached Wire Leads (Approx. 1/2 Inch)

• Mounting type - Rubber Housing Mount

Applications -

• Mobile phone vibration systems

• Wearable electronics

• Haptic feedback devices

• Robotics projects

• Bristlebots and brushbots

• Alarm and notification systems

• Electronic toys

• Medical and portable devices

• DIY electronics projects

• Embedded vibration systems
